Olympia Cart XL Frame Clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~28 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information

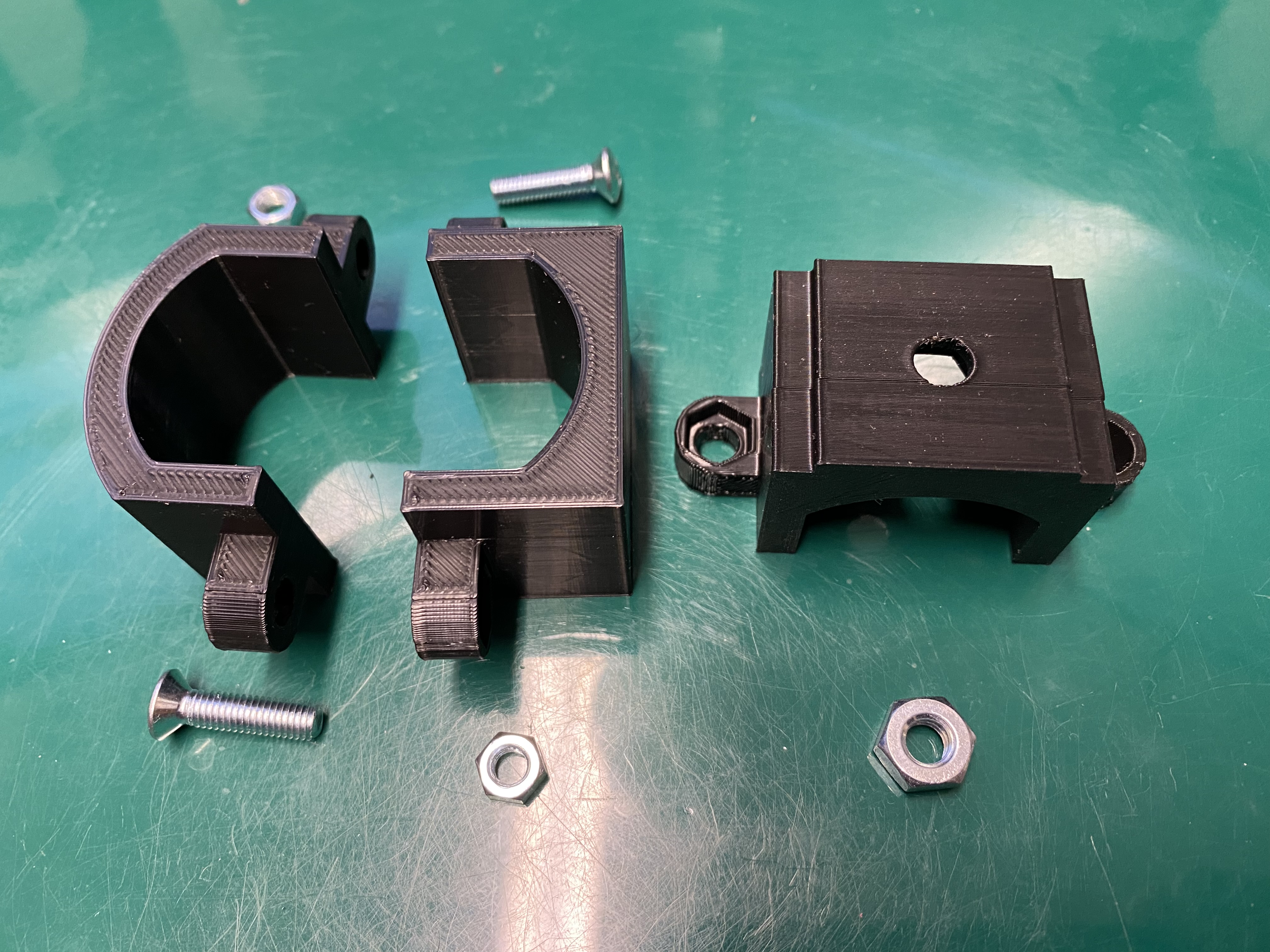

This model has three interchangeable pieces for clamping things onto the frame of an Olympia XL Cart.
All three parts are designed to bolt together using M5-20mm machine screws and bolts. There are matching chamfers and nut slots on each piece.

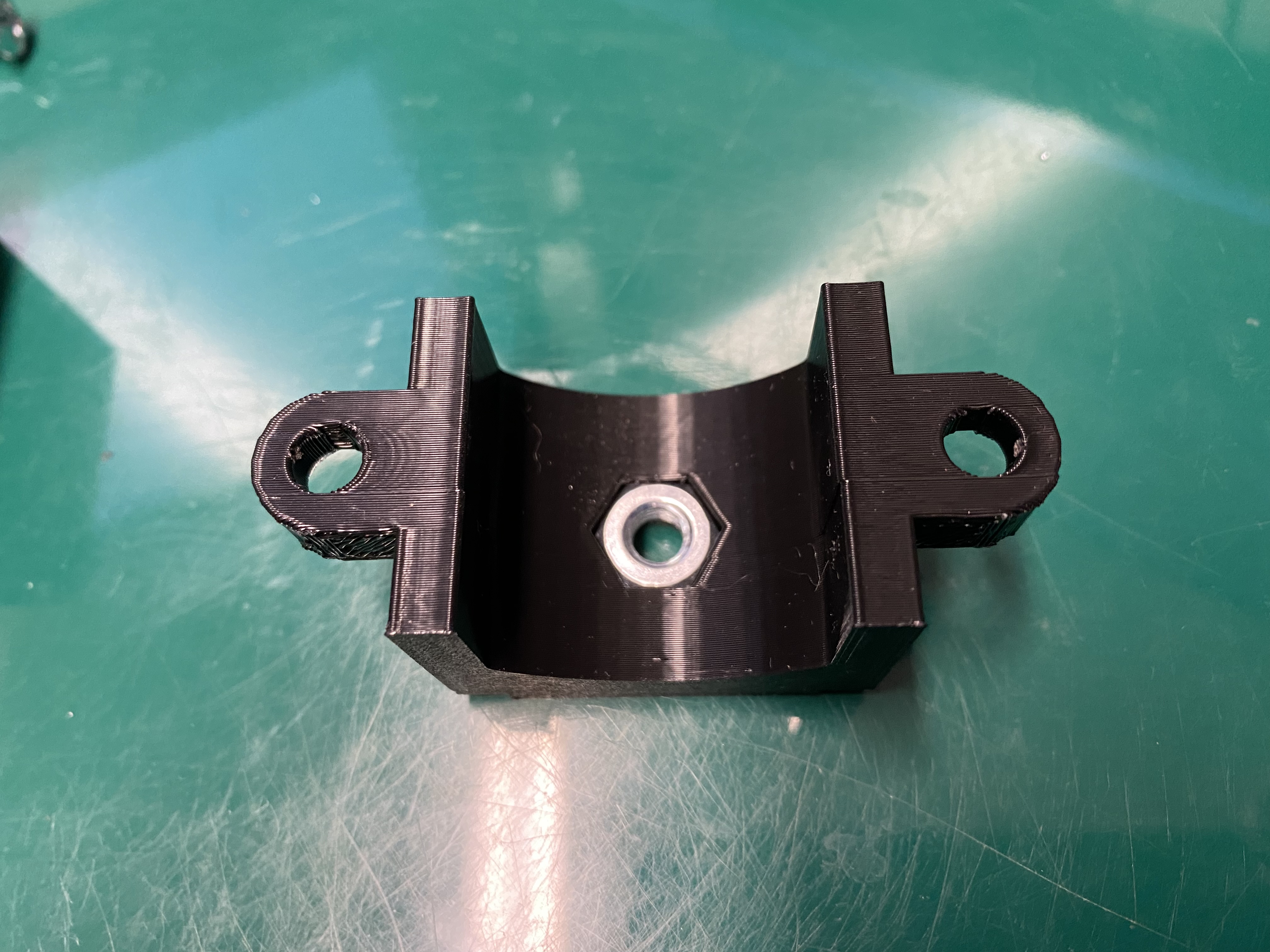

The part labeled “XL Frame Clamp 25-20” contains a cutout for a ¼-20 nut that allows you to screw on standard photo equipment.
The part labeled “XL Frame Clamp Square” is a good platform for remixing. Add any kind of stud, hook, mount, etc.
I printed each part using a Layer of .2 and an Infill of 10%. That seemed to make a reasonably strong piece.

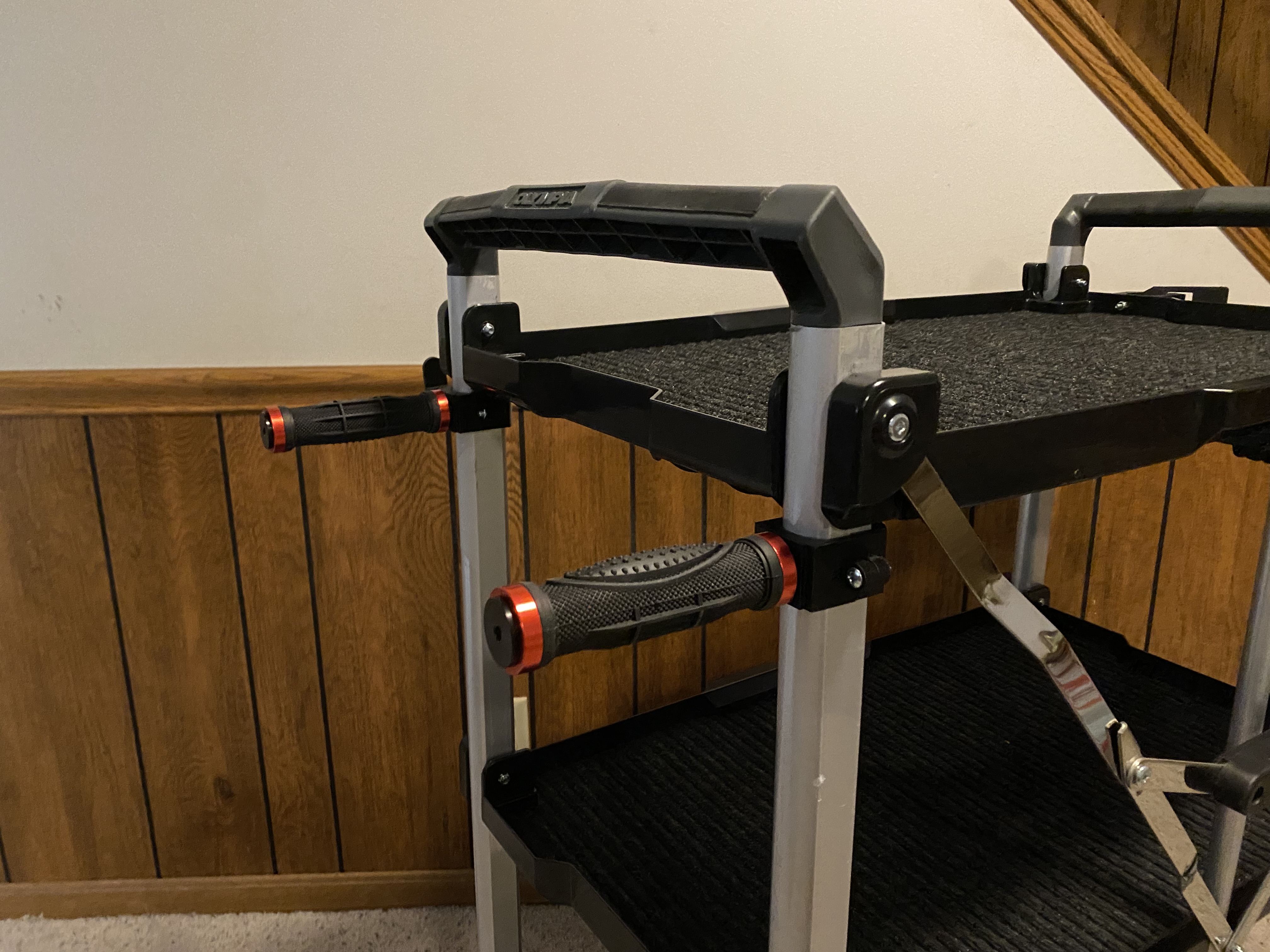

In one of the pictures you can see where I attached camera handles using the ¼"-20 bolt.
*EDIT: I added a V2 version of two of the files because I was getting some cracking around the bolts. The bolt tabs are thicker.
Design and description by Michael Render , licensed CC-BY.
Frequently asked
How long does shipping take?
Olympia Cart XL Frame Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
