Optimal Cable keeper

function

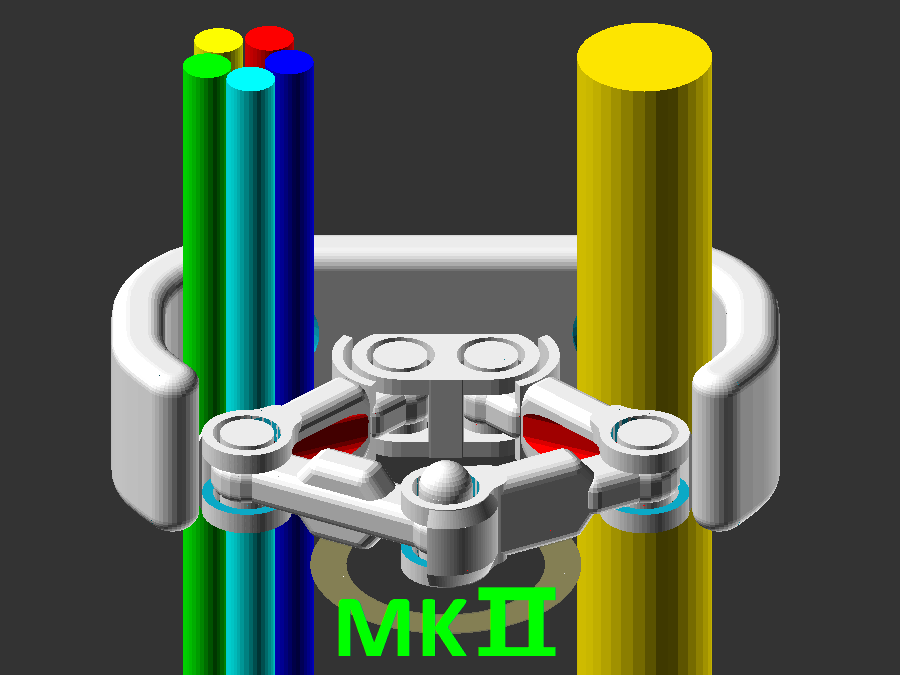

• open by pulling the middle out, and holding it right or left to open the opposing slot (one hand operation possible) • catch the cables for that slot and move the middle to the other side for the other slot. • press the middle down to lock.

When locked you can not remove the cables by pulling like with a clip - as the middle is now forced further down. But it requires only slight force to pull the middle open (quick release / panic snap).

##

##

mount

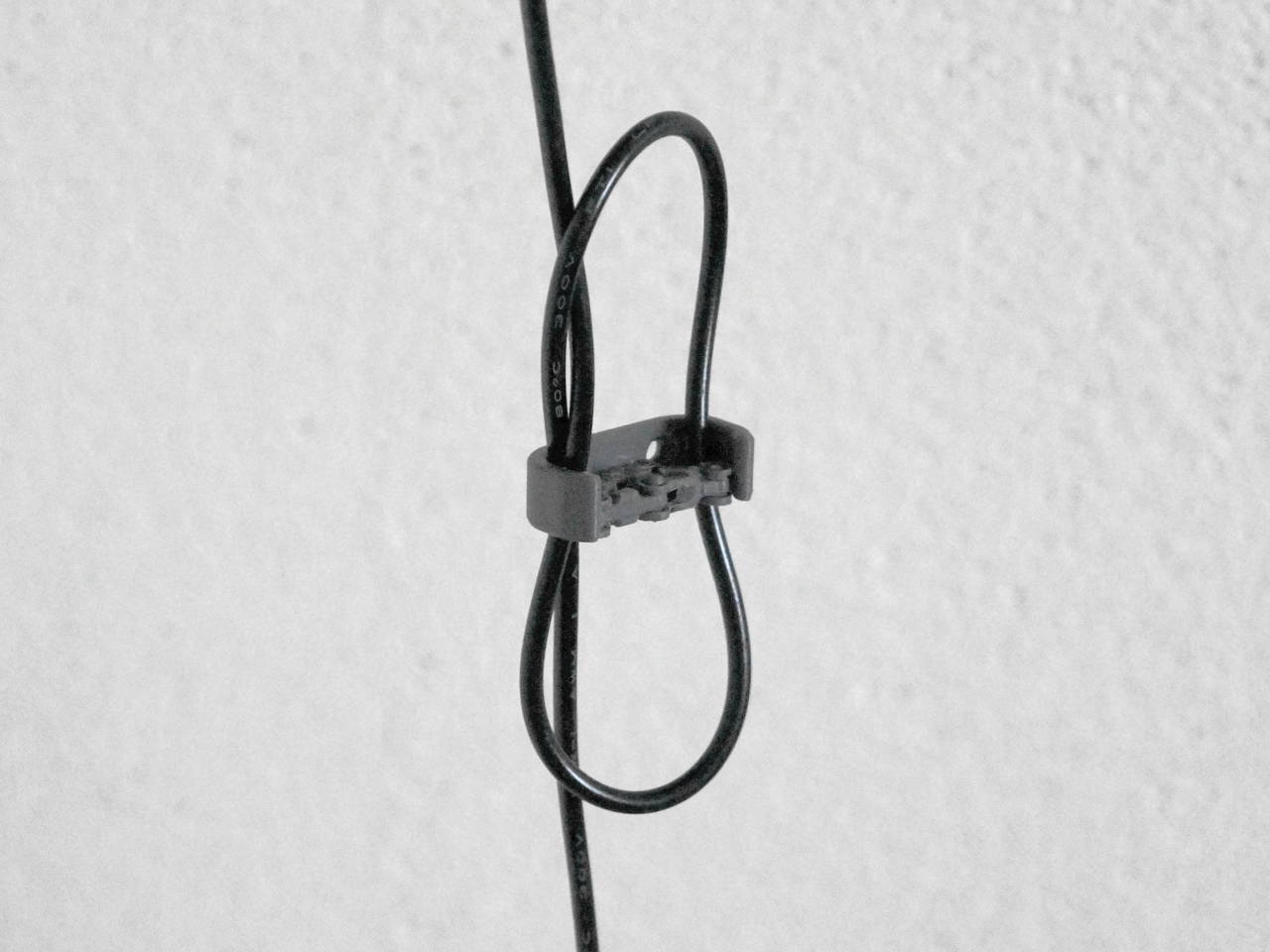

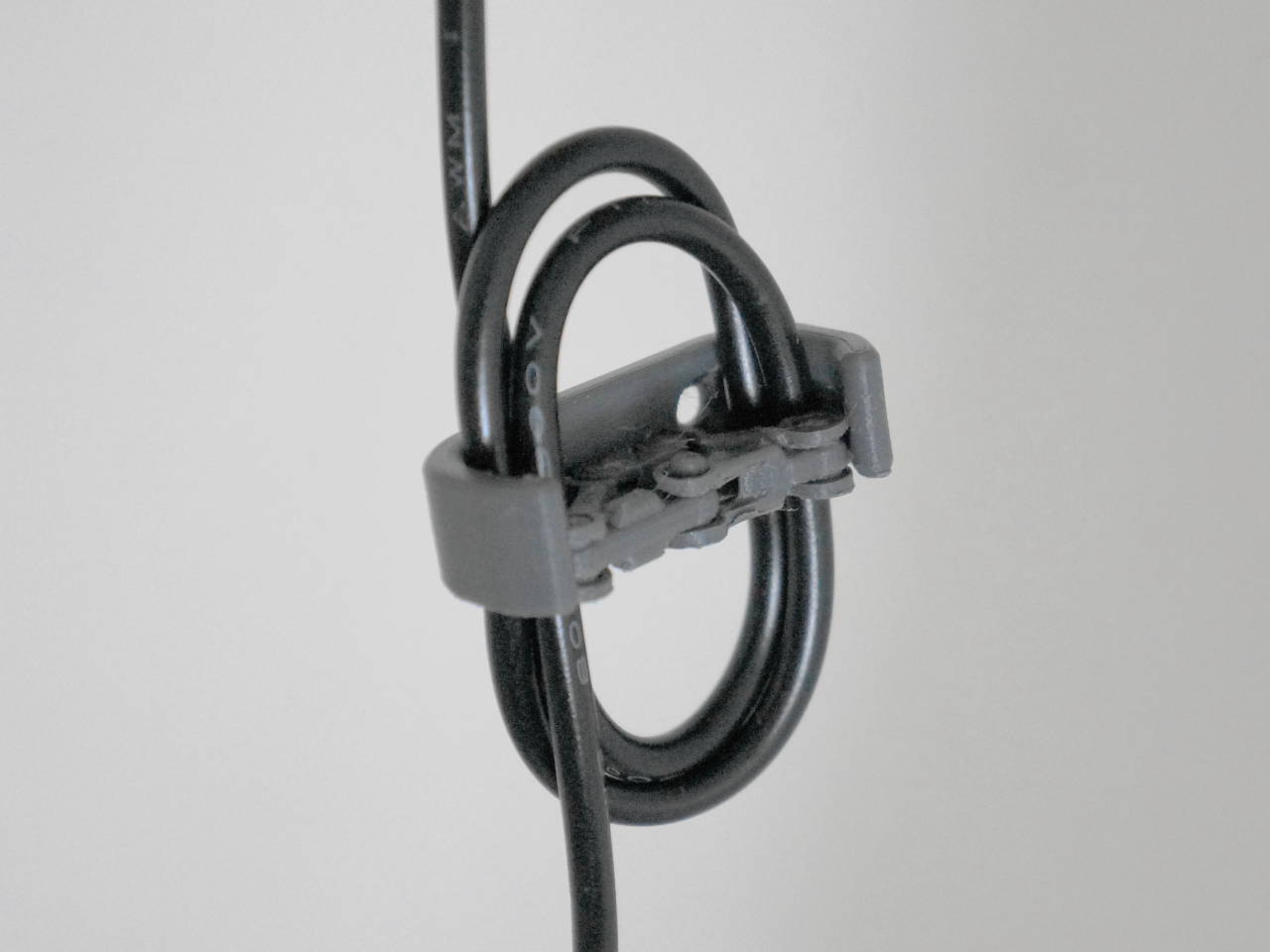

you can glue or screw (hole version) this onto a surface or power brick, but also keep free to loop redundant cable length. Or to keep different cables together.

##

##

capacity

slots can be used independently e.g. to keep usb and video in one and power in the other slot together.

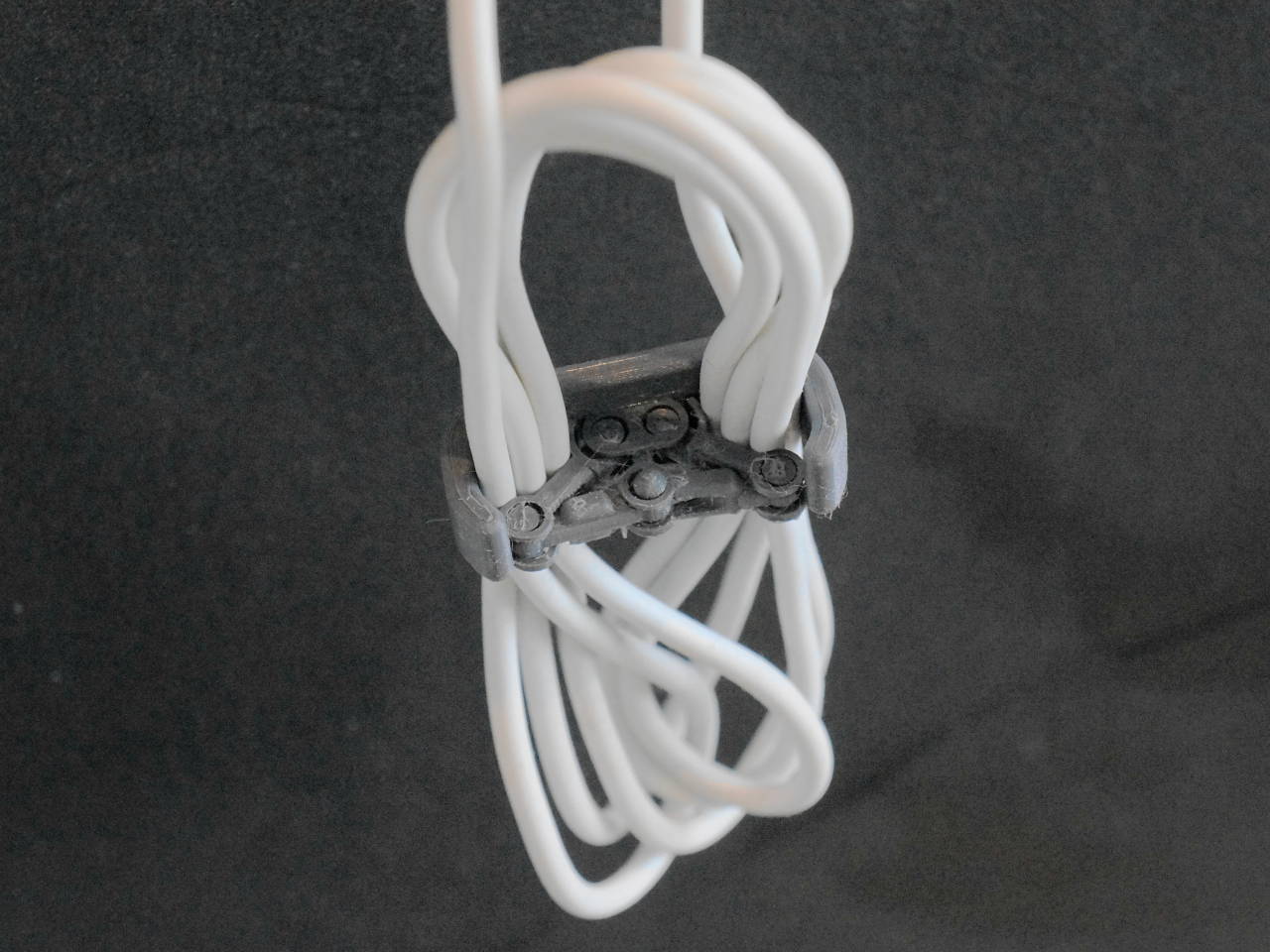

• 1× power cables (8mm∅) per slot ⇒ 1 loop / 2 cables • 2×shielded USB, video HDMI, ethernet or sat cable (4-5mm∅) per slot ⇒ up to 2 loops (1 per slot) or 4 cables • 3× Bowden tubes (4mm∅) • 5× USB / Audio / low power (3mm∅) per slot ⇒ up to 8 loops (4 per slot) or 10 cables • 1× USB/Audio/cinch/RCA plug/jack per slot ⇒ 2 connector storage • or to keep drawstrings or filaments loosely in position

##

##

##

##

##

##

##

print

• no support • use raft if adhesion or bed level is not superior • infill 10-50% • benefits from lower layer <0.1mm • material tested and working well with PETg • ~ 1h print time (or less) • 75cm Filament (1.75∅) • ~10¢ costs • 5¢ Material • 4¢ Power • 1¢ wear / printer

Design and description by Jack , licensed CC0.
