Ostmann & Fuchs - modular spice rack/shelf system | Gewürzhalter

Summary

Keep your kitchen organized with this modular spice rack system. Designed specifically for common spice jar standards (Ostmann & Fuchs), these holders can be mounted on cabinet doors or walls. The modular design allows you to mix and match sizes to perfectly fit your available space.

📏 Compatibility & Dimensions

There are two main versions available based on the jar diameter. Please measure your spice jars before printing.

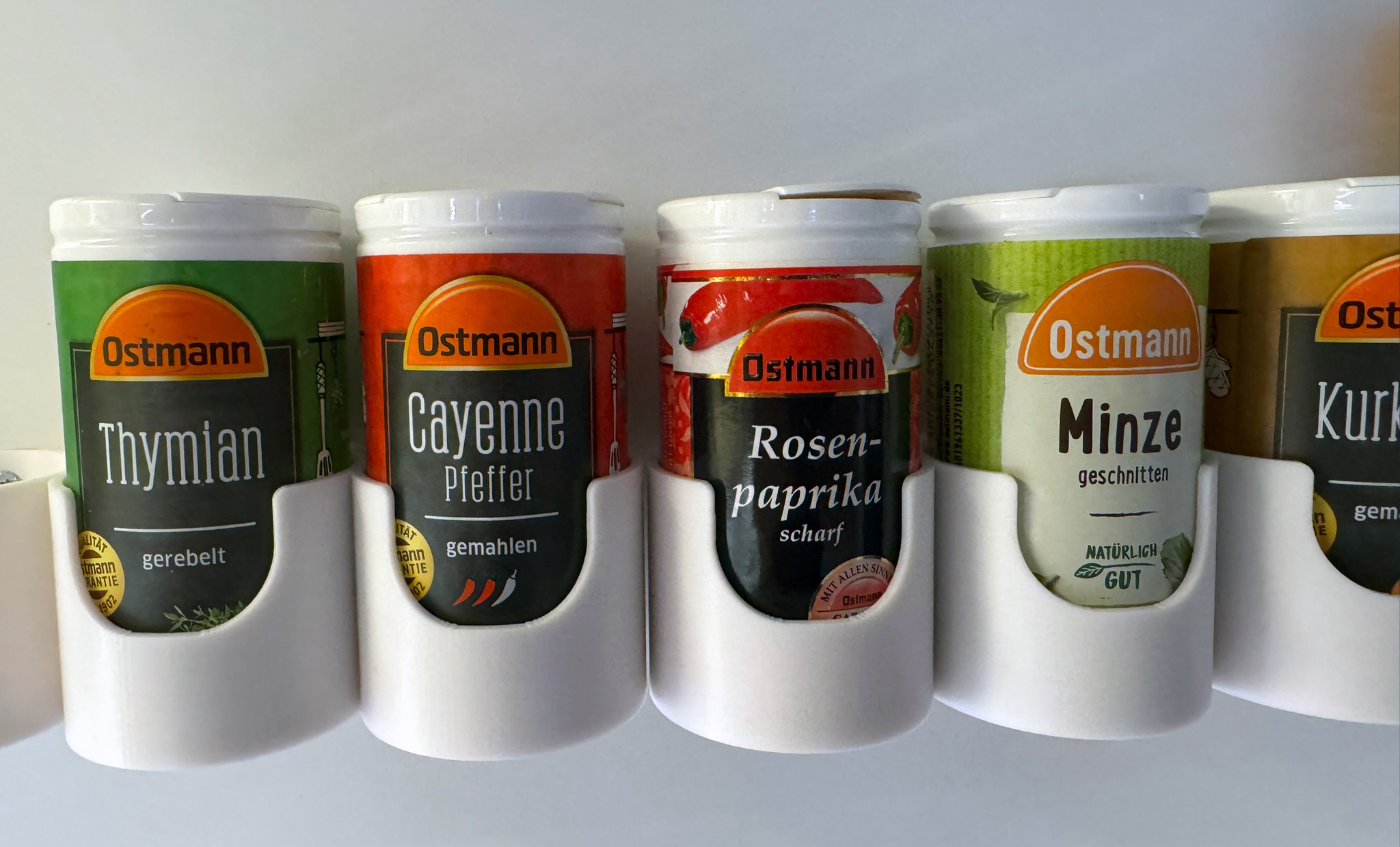

Type A: Fits "Ostmann" (Standard)

Designed for jars with a diameter of up to 44 mm.

• Total Height: 40 mm

• Total Depth: 48 mm

Variant

Capacity

Total Width

1x

1 Jar

48 mm

2x

2 Jars

95 mm

3x

3 Jars

143 mm

4x

4 Jars

188 mm

5x

5 Jars

235 mm

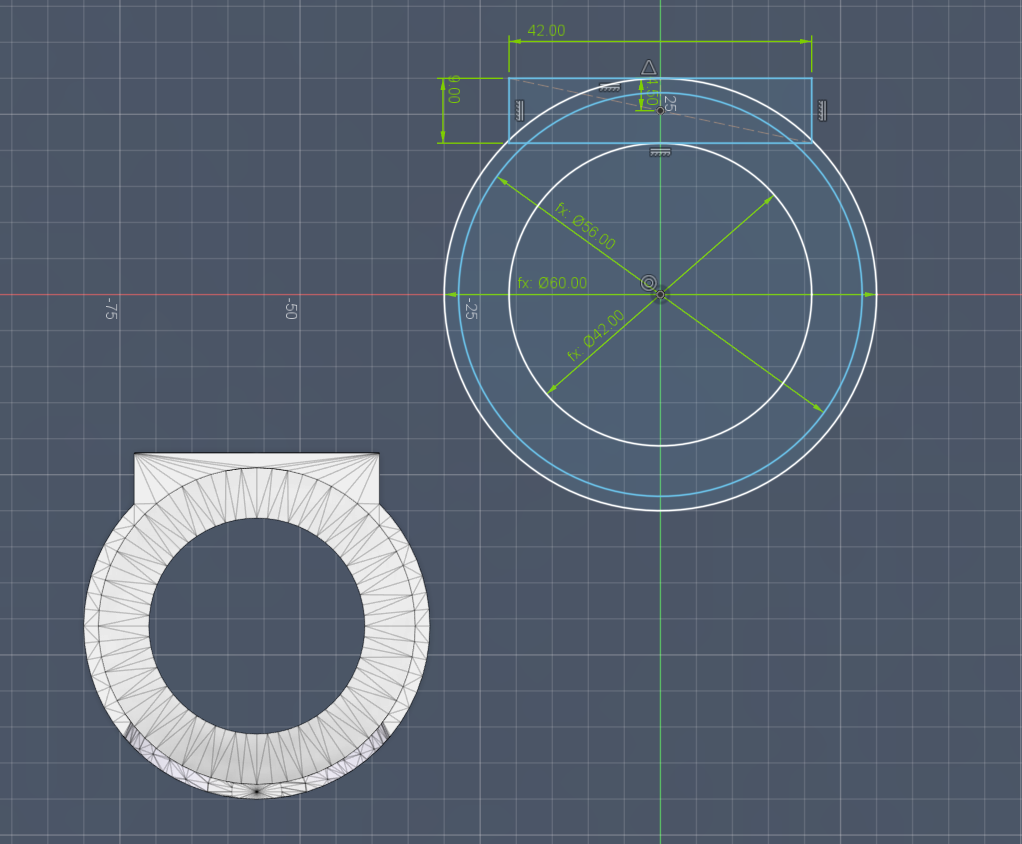

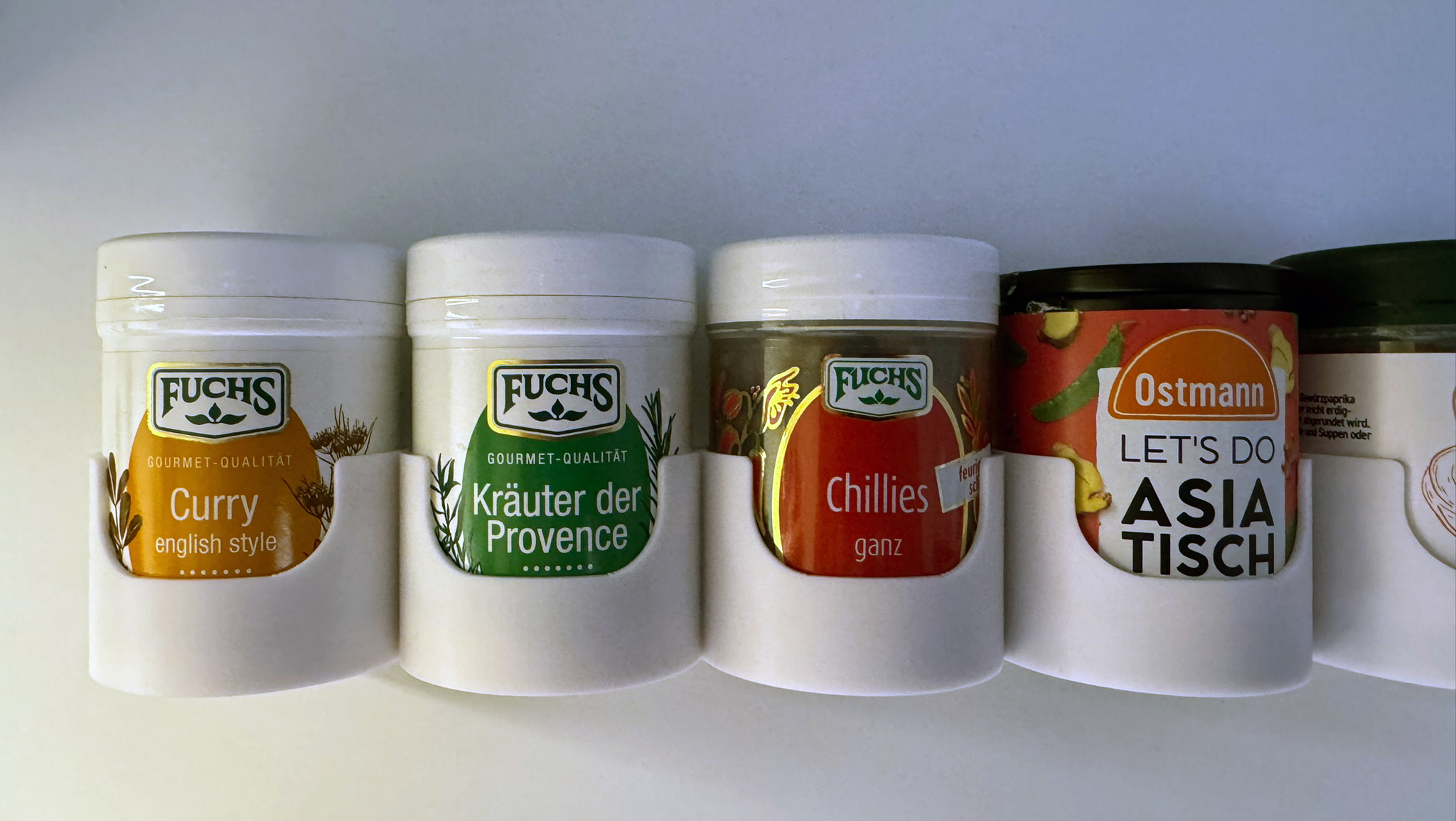

Type B: Fits "Fuchs" (New & Old Style)

Designed for jars with a diameter of up to 56 mm.

• Total Height: 40 mm

• Total Depth: 60 mm

Variant

Capacity

Total Width

1x

1 Jar

60 mm

2x

2 Jars

118 mm

3x

3 Jars

177 mm

4x

4 Jars

235 mm

5x

5 Jars

295 mm

🖨 Print Instructions

This model is optimized for easy printing without post-processing.

• Material: PLA is sufficient; PETG recommended for kitchen durability.

• Supports: NO supports needed.

• Orientation: Print flat on the back face (as oriented in the STL).

• Infill: 15-20% (Grid or Gyroid) is plenty strong.

• Perimeters: 2-3 walls.

🛠 Assembly & Installation

The system is designed to be modular. You can mount multiple rails side-by-side to cover the full width of your cupboard door.

• Mounting: Use flat-head screws.

• Recommended Screw Size: 3.0 x 12 mm

• Tip: Pre-drill pilot holes if mounting into hardwood or delicate cabinet doors.

Design and description by boitl , licensed CC-BY.
