Panel Clamp Joint Bridge + 10-Slot Wall Rack Combo
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

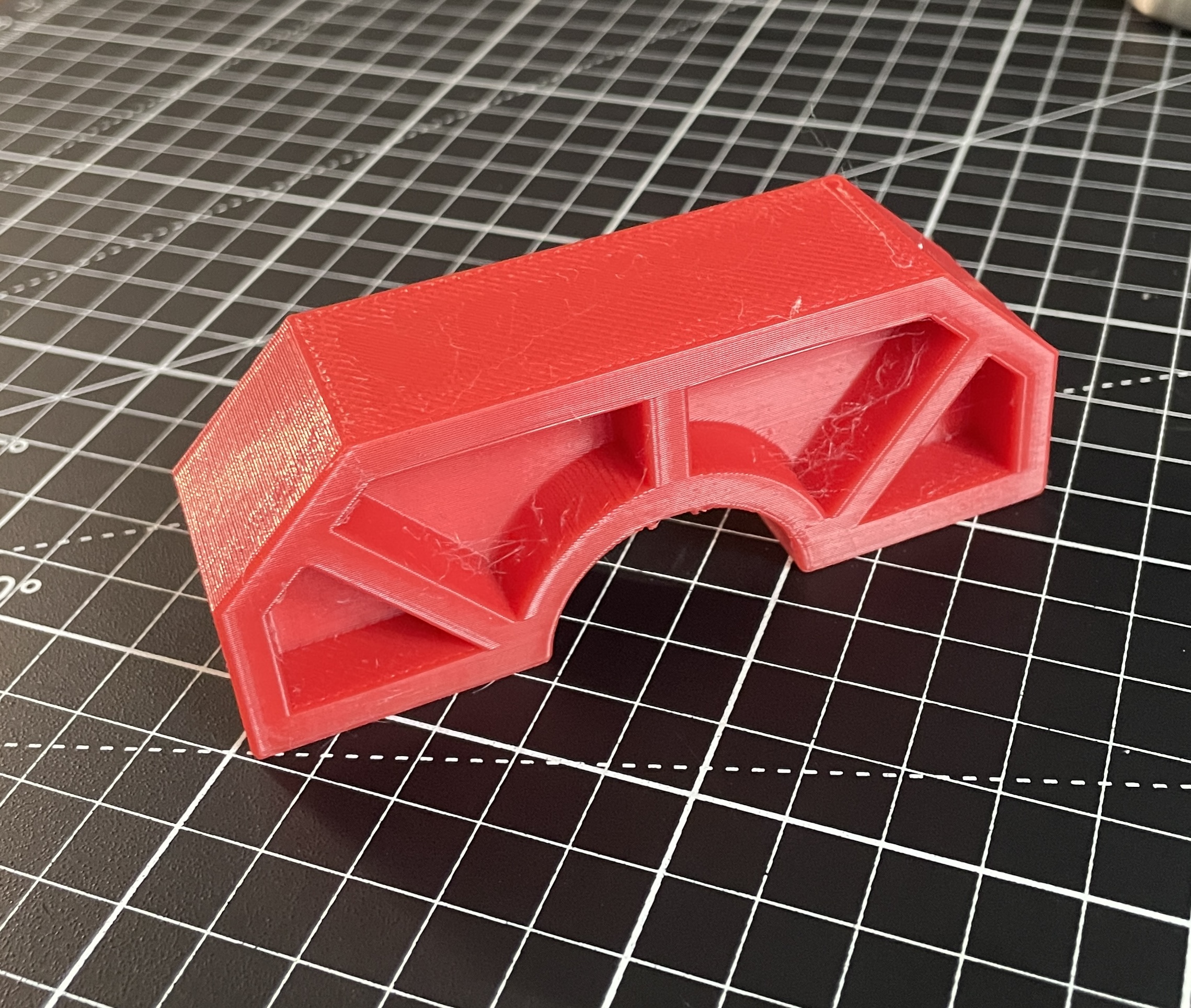

This set includes a seam-leveling clamping bridge and a wall-mounted rack that holds up to ten of them—ideal for woodworking panel glue-ups. The bridge sits over glue seams to apply even, centered pressure across boards, helping flatten panels and align edges while avoiding glue lines and clamp marks. The included rack keeps your bridges organized and ready, with individual slots and top-loading convenience for smooth workflow in the shop.
🖨 Print Instructions:
Bridge: Print upright in the same orientation you’d use it during a glue-up. This ensures the bottom is perfectly flat and makes direct contact with your print bed for accuracy.
Supports: Only needed inside the arch—disable supports on the bridge legs to save cleanup time.

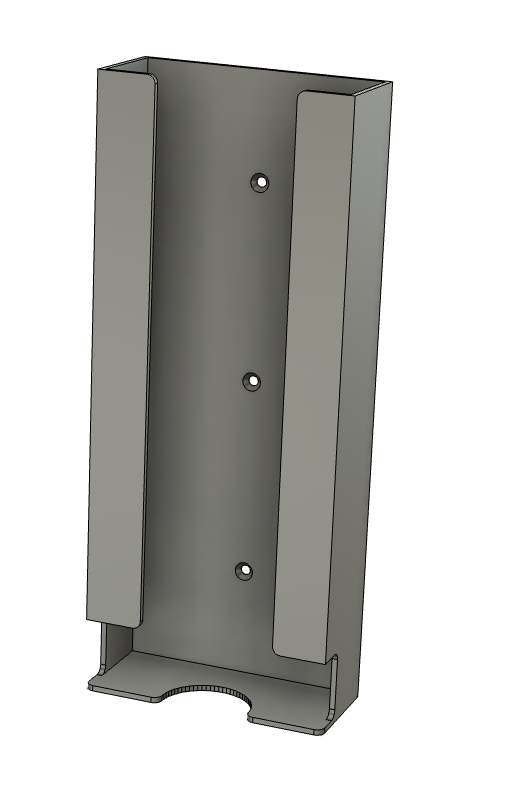

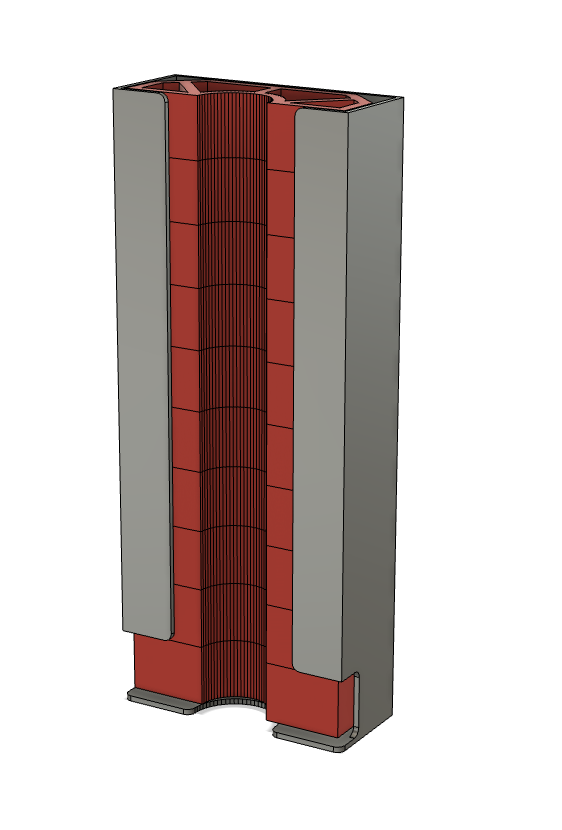

Rack: Designed to print in one piece and optimized for printers like the Ender 3 S1 Pro (270 mm height). If your printer can't handle that, feel free to message me—I'm happy to provide a shorter version.
Suggested Settings:
Nozzle: 0.6 mm
Layer Height: 0.28 mm
Infill: 50% for the bridge; 15–25% is sufficient for the rack
Material: PLA or PETG recommended for strength and dimensional stability
Design and description by BuildByAnyMeans , licensed CC0.
Frequently asked
How long does shipping take?
Panel Clamp Joint Bridge + 10-Slot Wall Rack Combo is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
