Parametric Funnel Redux
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

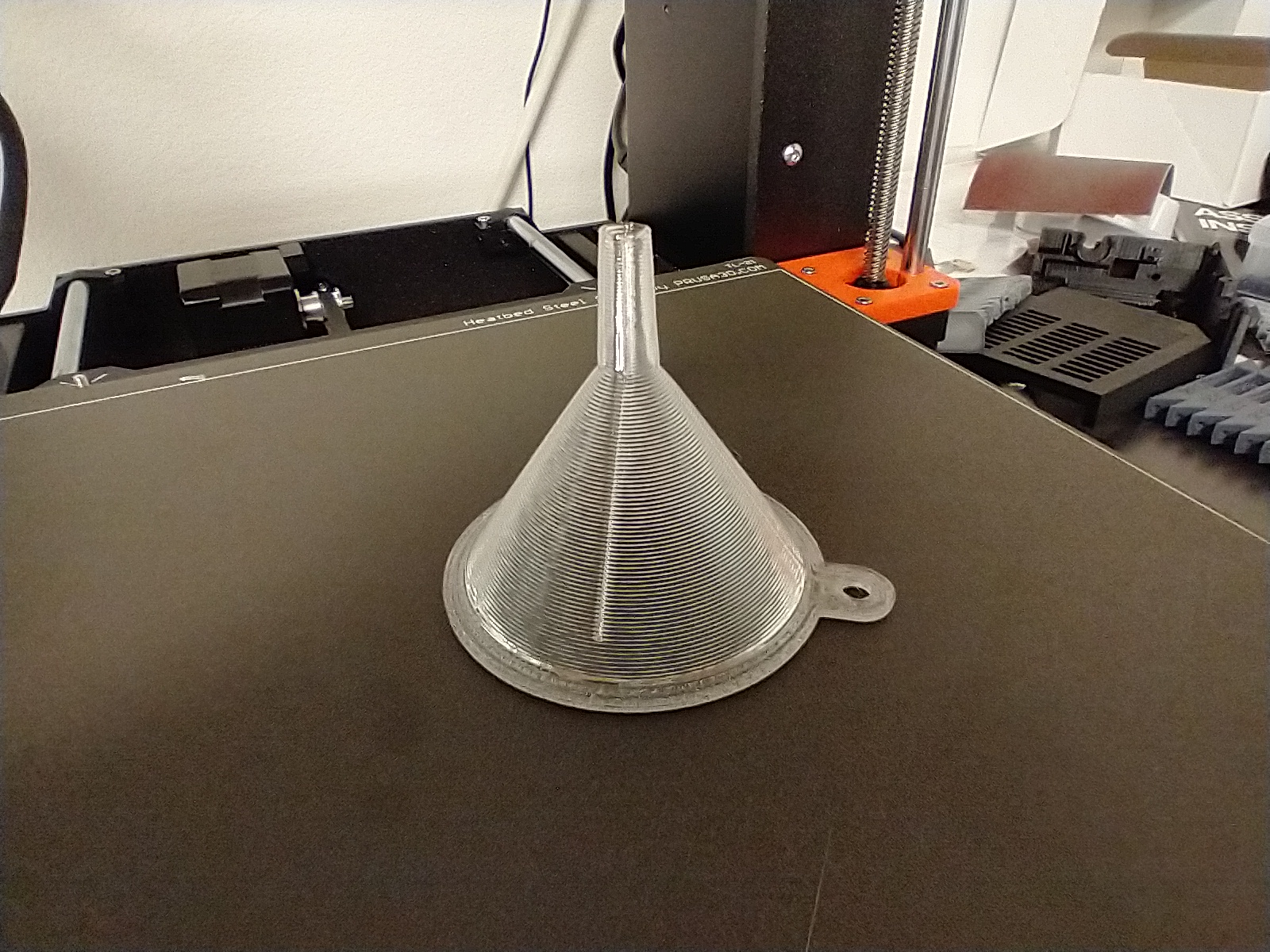

This is an improved version of Tomaae's parametric funnel with additional parameters and the ability to enable/disable “optional” features. It also includes support for a tapered tube section. The table below contains a complete list of parameters.
ParameterVariable NameDefault
Total HeightHeight60mm
Tube HeightTube_Height20mm
Funnel DiameterTop_Outside_Diameter60mm
Tube DiameterTube_Outside_Diameter10mm
Tube Taper AngleTube_Taper2.5°
Tube Tip AngleTube_Cut_Angle30°
Wall ThicknessWall_Thickness1mm
Hanging RingHanging_Ringtrue
Vent RidgeRidgetrue
Ridge ThicknessRidge_Thickness1.5

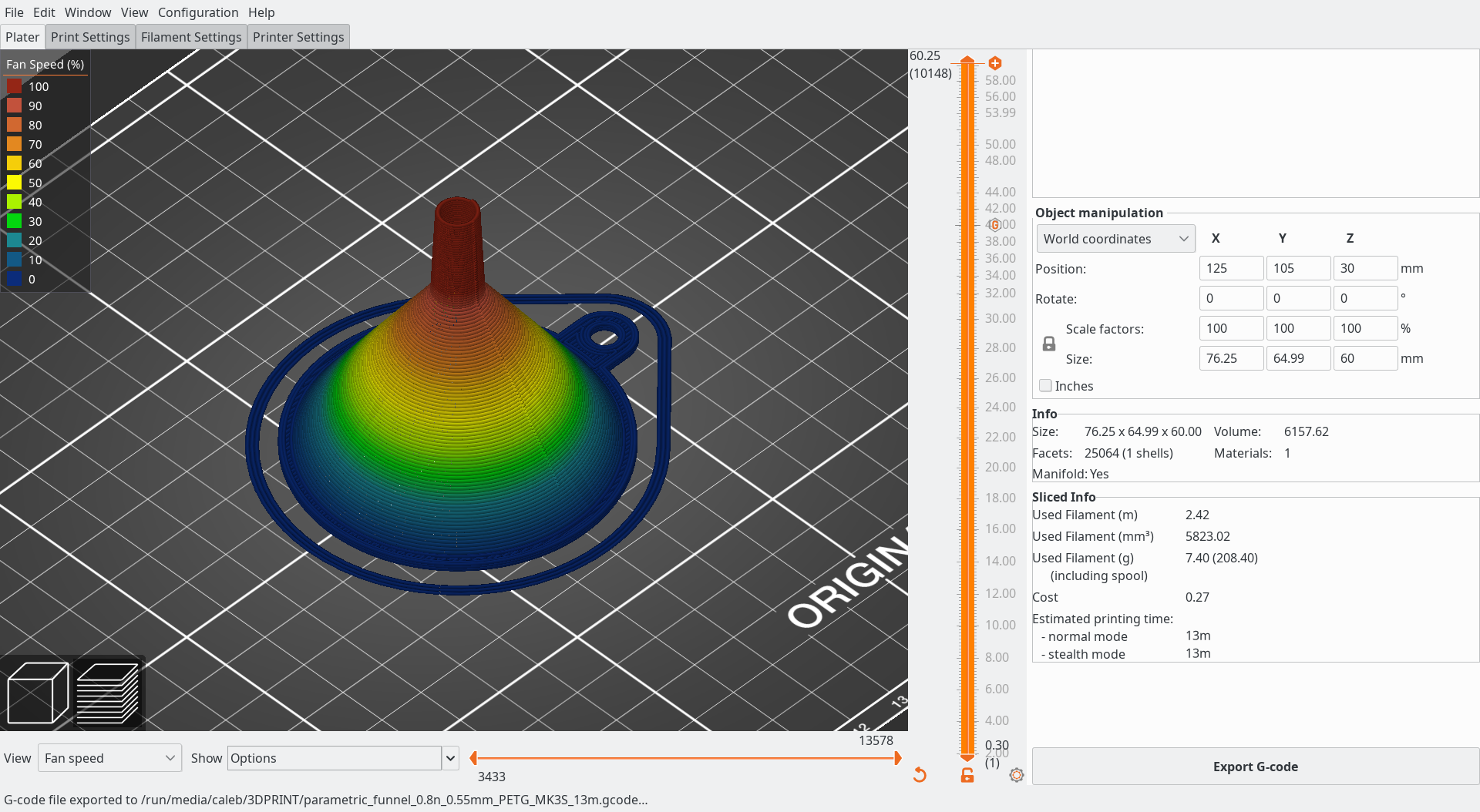

Due to the parametric nature of this design and the heavily customized print settings I used, an STL was not included. I encourage users to use export their own STL from OpenSCAD and load it into my 3MF file. I used a 0.8mm nozzle to improve print speed.
2022-07-24 Update: add ridge thickness parameter to improve vase mode printing quality. Update sample 3mf to support vase mode “out of the box”.
Note: I strongly recommend printing this in PETG due to its excellent chemical resistance.
Design and description by herr_brain , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Parametric Funnel Redux is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
