Parametric Stacking Bin
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~36 g
- Print time
- ~2 h
- Express shipping
- $20
More information

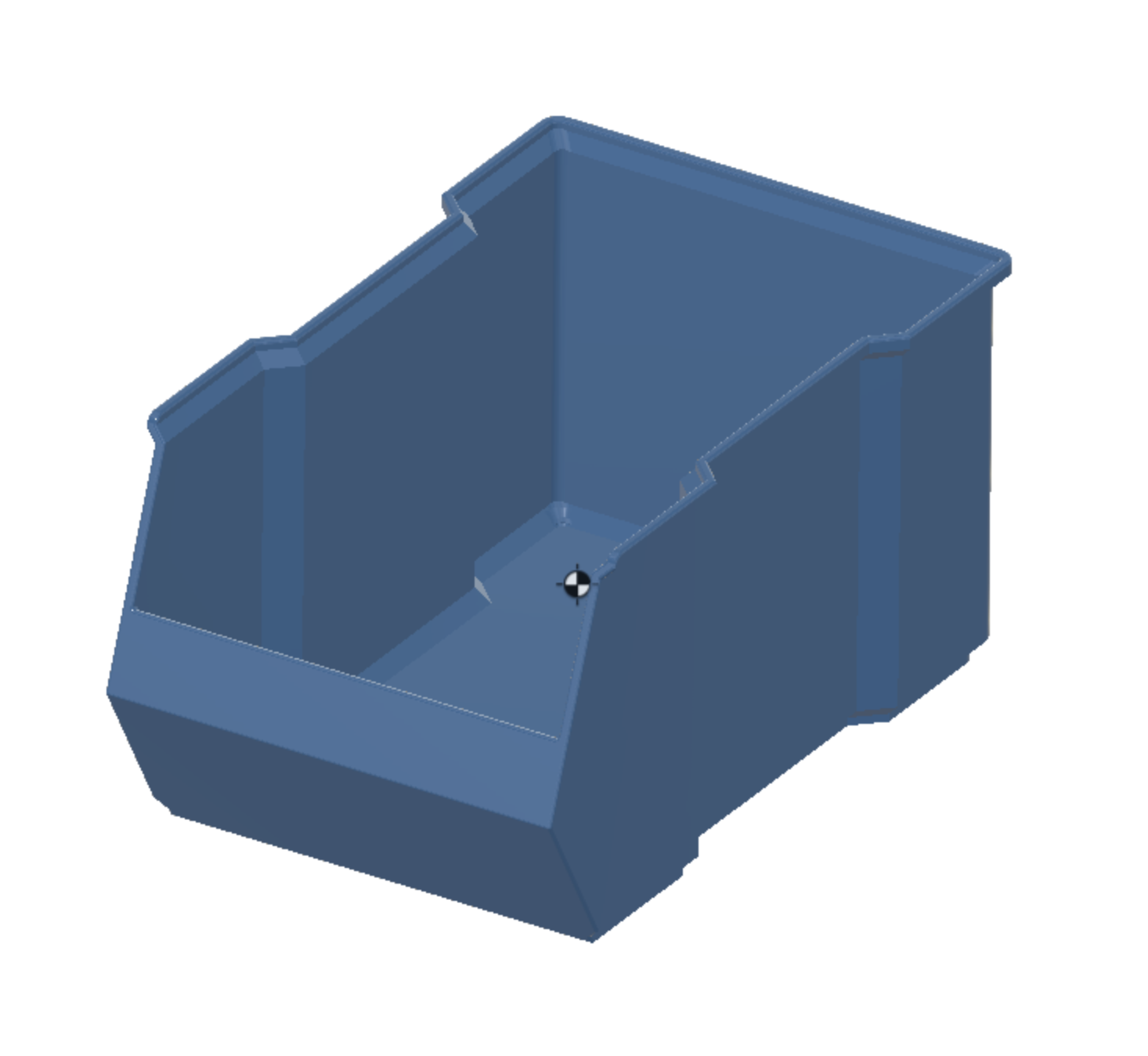

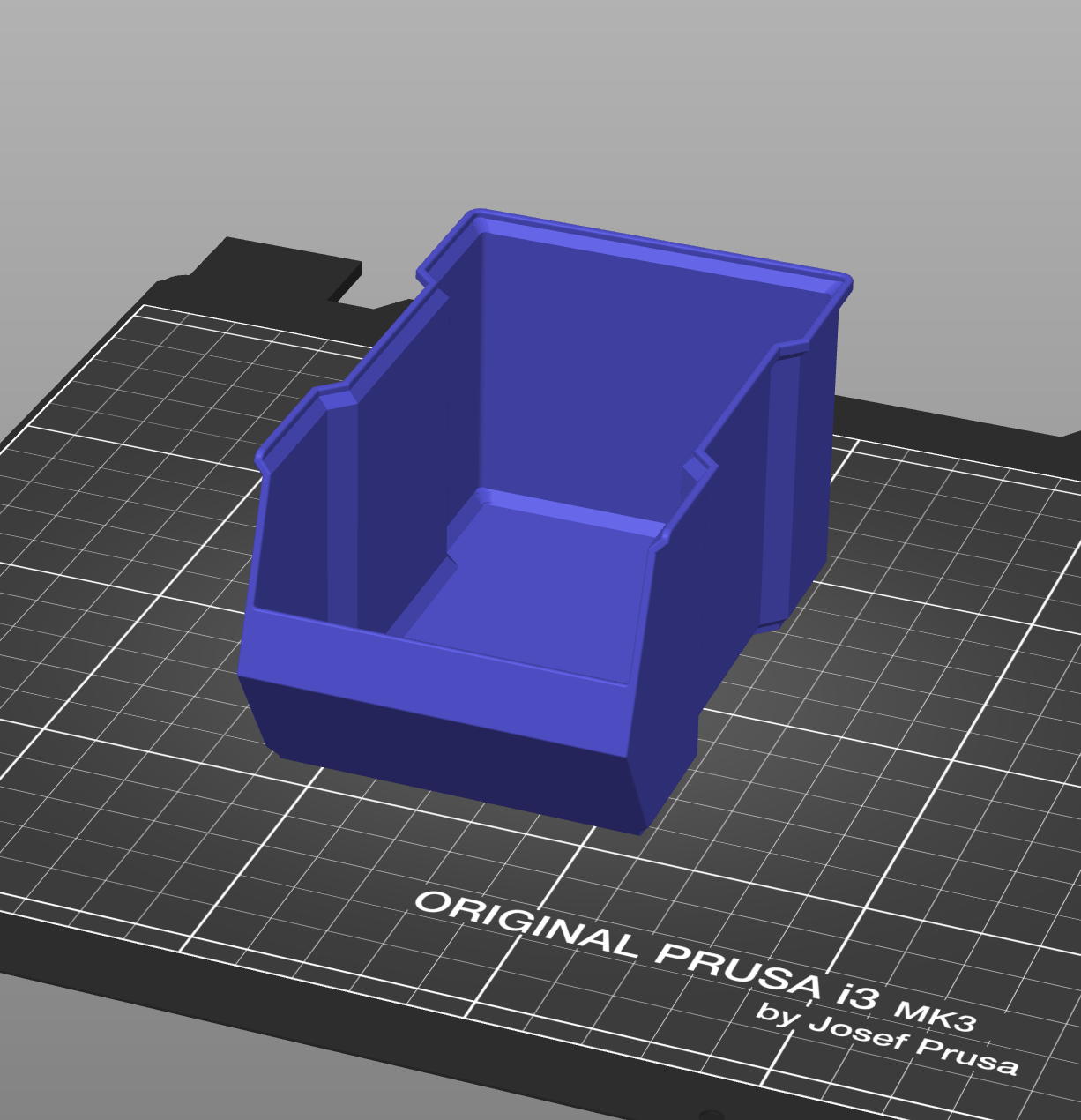

I was inspired by a recent upload to design a fully parametric stacking bin in Fusion 360. The design criteria is to setup parameters for width, depth (front to back), height and wall thickness. There are also a few other parameters for sidewall inset sizes and front lip height, label area height and filets.
Prints without support in any material.
If you are not familiar with fusion 360, you can generate a new bin model with these detailed steps once you have Fusion 360 installed and logged-in:
• Download the .f3d • FIle menu ⟫ Open… (CTRL/CMD S) • Click Open from my computer • Select the .f3d file on your hard drive • Type SHIFT P to open parameters dialog/window. • Edit parameters listed below by clicking value in Expression column • Click OK button at bottom of parameter dialog • File ⟫ Save (CTRL/CMD S) • Give your project a name • In the “browser” (list left of model image) right click on the top item which should be the name you just used to save the project and pick Save As Mesh • Choose format of 3MF or STL, Refinement (I use High), click OK • Give your mesh file a name and click Save
Twelve steps seem like a lot but it's really not that hard, I just wanted to be very detailed.
Design and description by mscalora , licensed CC-BY.
Frequently asked
How long does shipping take?
Parametric Stacking Bin is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
