Parkside battery to Ryobi tool adapter
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~87 g
- Express shipping
- $20
More information
Parkside battery adapter for Ryobi tool.
Mixed two pieces of work together, I admit that.
Did some modifications so they fit together.
You need to print:

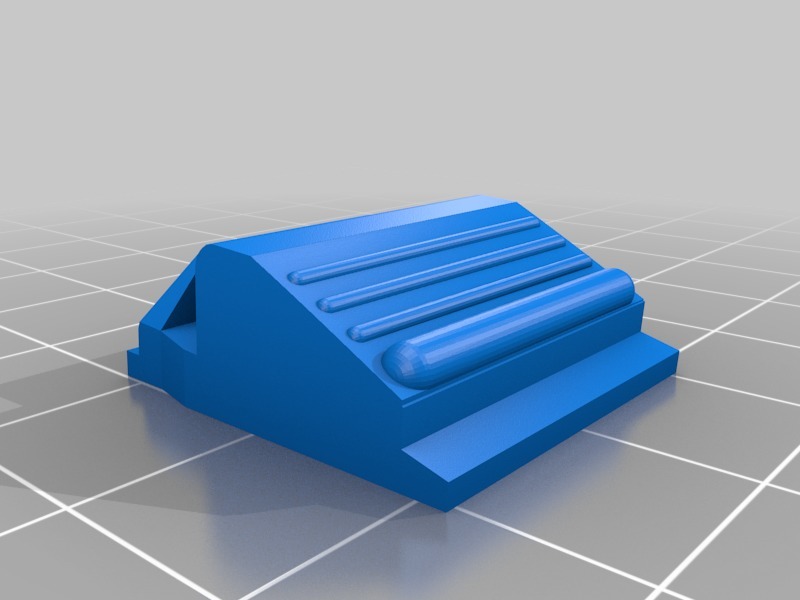

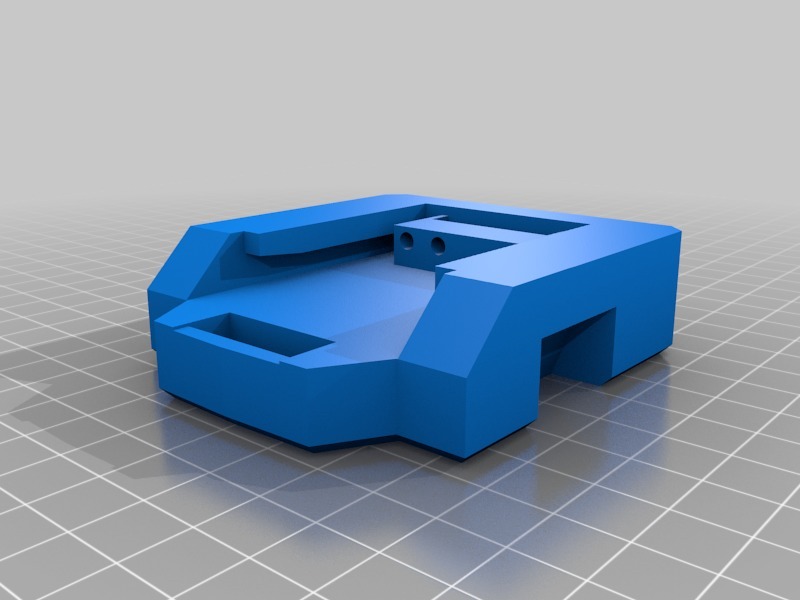

• 1x top • 1x bottom • 2x clip
And extra:
• 4x 6.3mm Faston male crimp connector, "blue" (accepts 1.5 - 2.5 mm2 cable) but without the plastic protective tubing • 2x ~10cm cable (I advise 2.5 mm2) • CA glue or any "fast" glue • 1x some small spring (from a pen, split in half)
a)
• 4x M3 screws • 4x metal M3 threaded inserts that you put in with heat (f.e. with soldering iron) • you can also screw it in directly
b)
• or just glue it togehter :-) (but watch the alignment!)
Put the cable through the holes, crimp or solder the connectors, glue them in place. If something is tight, help it with a little heat (soldering iron), but be careful. It should work 99% straight out of the printer.
Connecting just the two connectors on each side (+ & -) works for the tool, but don't try to charge it with Ryobi charger. Charge the battery with Parkside charger only!
Print Settings
Printer Brand:
Prusa
Printer:
i3 MK2S
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
30
Filament: any PLA / PETG
Notes
Top (tool part) and Clips can be printed without supports. Bottom (battery part) piece require supports.
Origin - remix from:
https://www.thingiverse.com/thing:1248463 https://www.thingiverse.com/thing:3649747 https://www.thingiverse.com/thing:3114131
Category: DIY
Design and description by Vlad , licensed CC-BY.
