Patio Door Replacement Handle
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~25 g
- Print time
- ~1.4 h
- Express shipping
- $20
More information
The door handle broke years ago and I had a piece of painted pine in it's place after buying and returning a few poorly fitting replacements. I got tired of looking at the pine handle and it was a good excuse to buy ASA filament. I used blue Flashforge ASA and it prints beautifully.

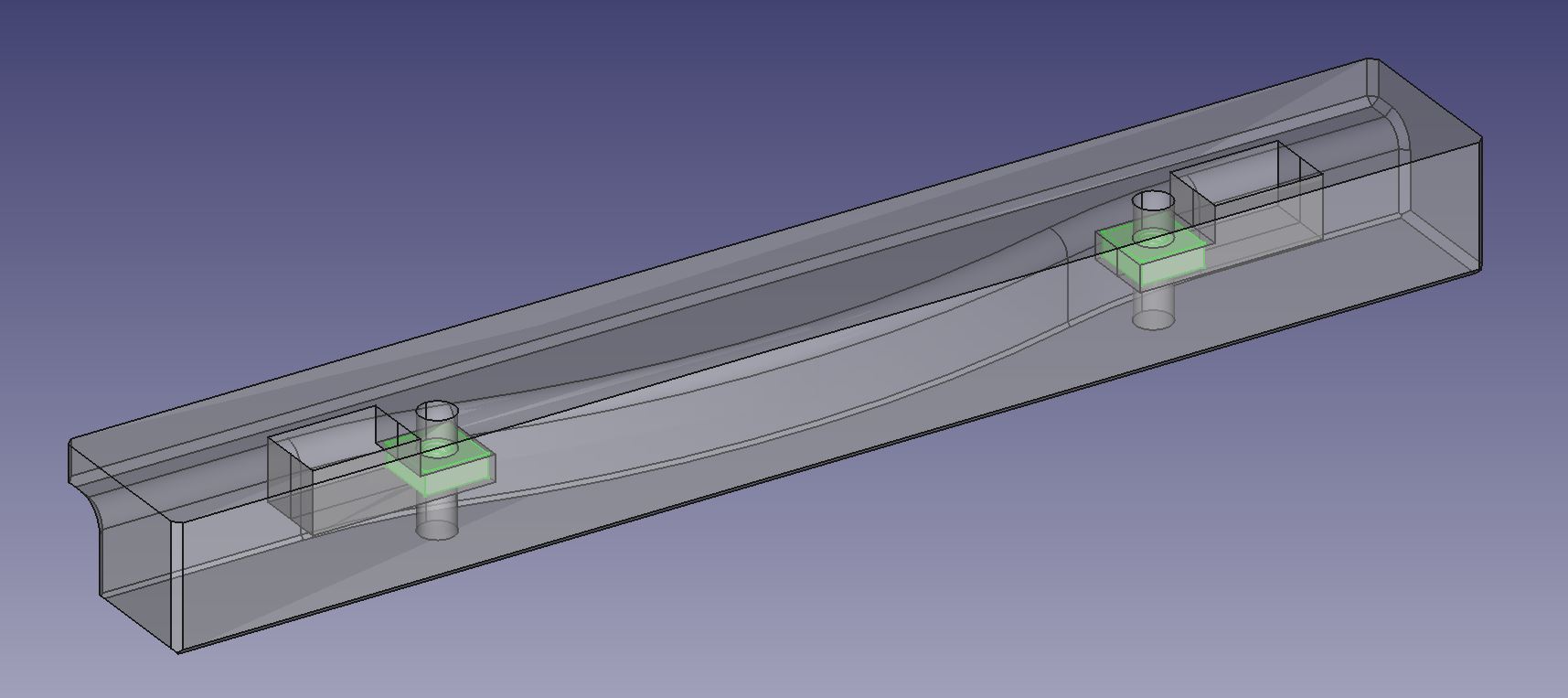

It's a simple model with a few slide in place nuts. My handle had two 8-32 screws located 100 mm apart. I used some square nuts I scavenged off something. I resized the model to work with McMaster-Carr part number 94855A216, https://www.mcmaster.com/94855A216/. I also reduced the depth of the screw hole as it was visible on the exterior of the handle.

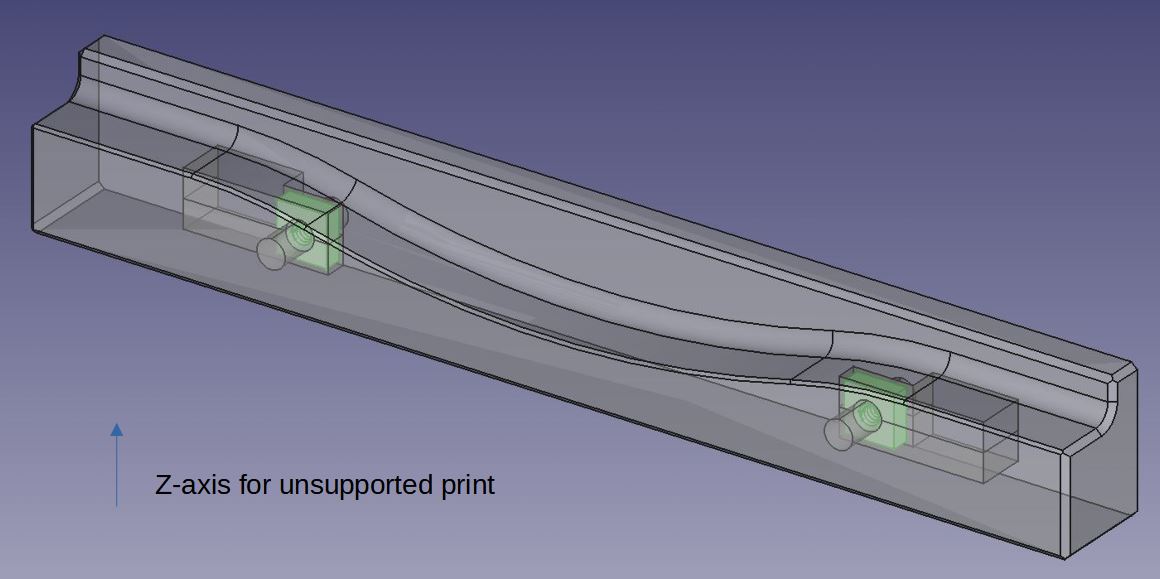

Printed on back of handle as shown in picture without support. I printed a test sample as the bridging sagged a bit. You can adjust the nut pocket width in FreeCAD by double clicking on Pocket2 and Pocket 3. These are cut to half the nut width starting at the screw center.
Design and description by katthulu , licensed CC-BY.
Frequently asked
How long does shipping take?
Patio Door Replacement Handle is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
