PCB Milling Clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~44 g
- Express shipping
- $20
More information

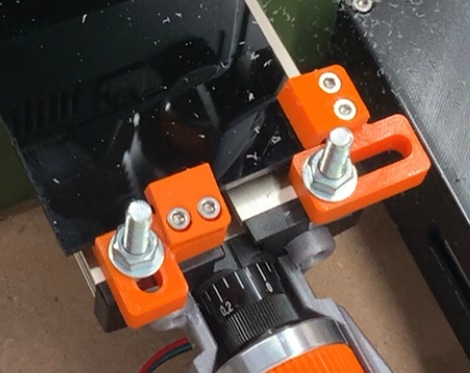

The .3mf file contains a set of 4 corner clamps ( 2 mirrored pairs ) to clamp the corners of a PCB and 2 mirrored straight clamps to clamp the sides of a PCB.
The .stl files only contain the corner and straight clamp in 1 direction, to get the other direction use the mirror function in PrusaSlicer. (also mirror the top piece)
Use M3 threaded inserts in the holes in the clamps to screw the top pieces into with some M3x10mm socket head screws. The slots are for an M6 threaded rod, use nuts and washers to secure the clamp to the milling table.
Print with 100% infill.
Design and description by Max , licensed CC0.
Frequently asked
How long does shipping take?
PCB Milling Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
