Pella Screen Door Lock Strike
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~28 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information

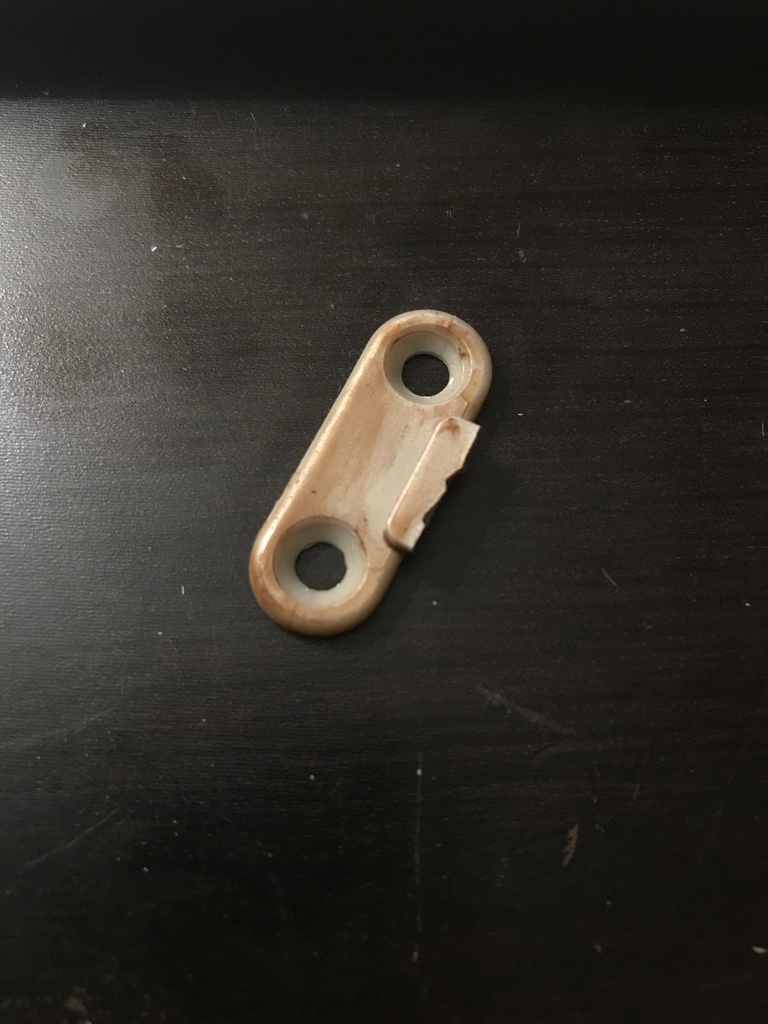

The latch on my patio screen door had been broken since I moved into my new place. Over the weekend I finally got around to modelling a replacement. Since all I have of the original is a broken base, I have no idea if this is a truely accurate replacement, but it works for me. The door is a Pella, but I would think this latch will work for doors from other manufacturers.

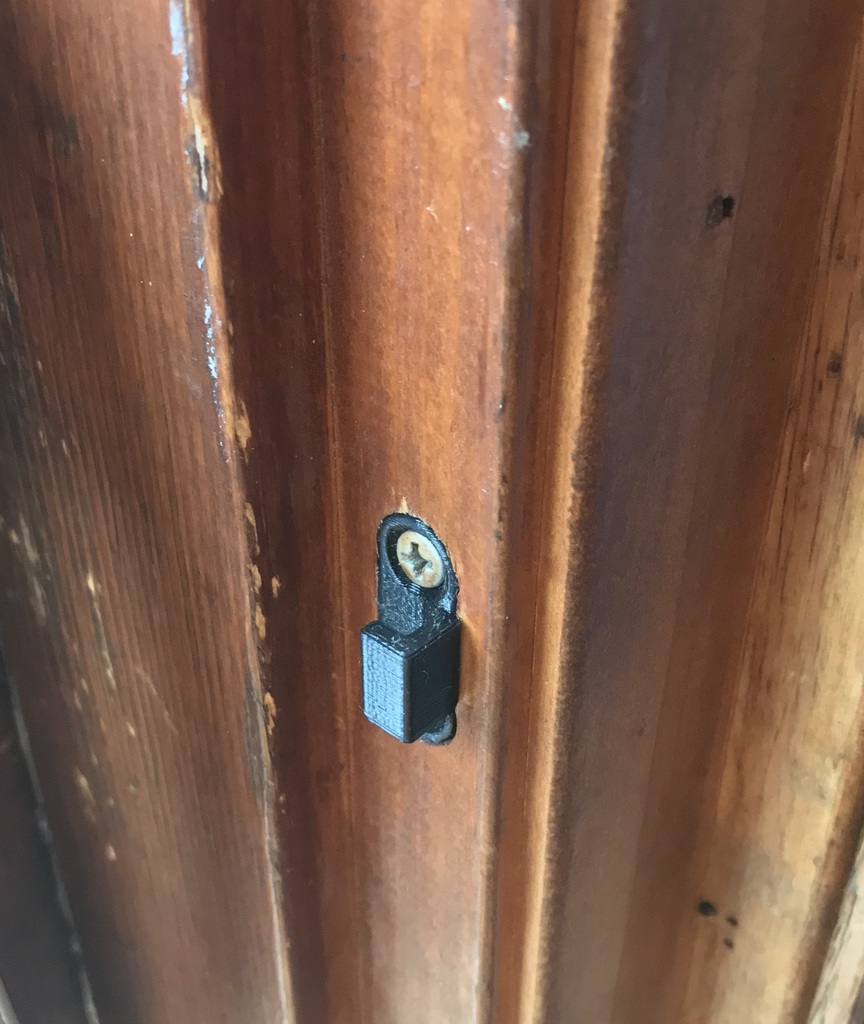

Based on what I found with the one I show printed and installed, I increased the latch length by 0.2 mm and decreased the screw holes from a #8 to a #6. However, I never reprinted and replaced the one I already had since it worked well enough. If anyone finds a problem with this, please let me know and I'll change it accordingly.
Even though it might print better on its side, I would recommend printing the part upright with supports. This way the latch is strengthened by having solid layers through its cross-section.
Print Settings
Supports:
Yes
Infill: %100 - Solid
Category: Replacement Parts
Design and description by Incendium87 , licensed CC-BY.
Frequently asked
How long does shipping take?
Pella Screen Door Lock Strike is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
