Pet Door Latch
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

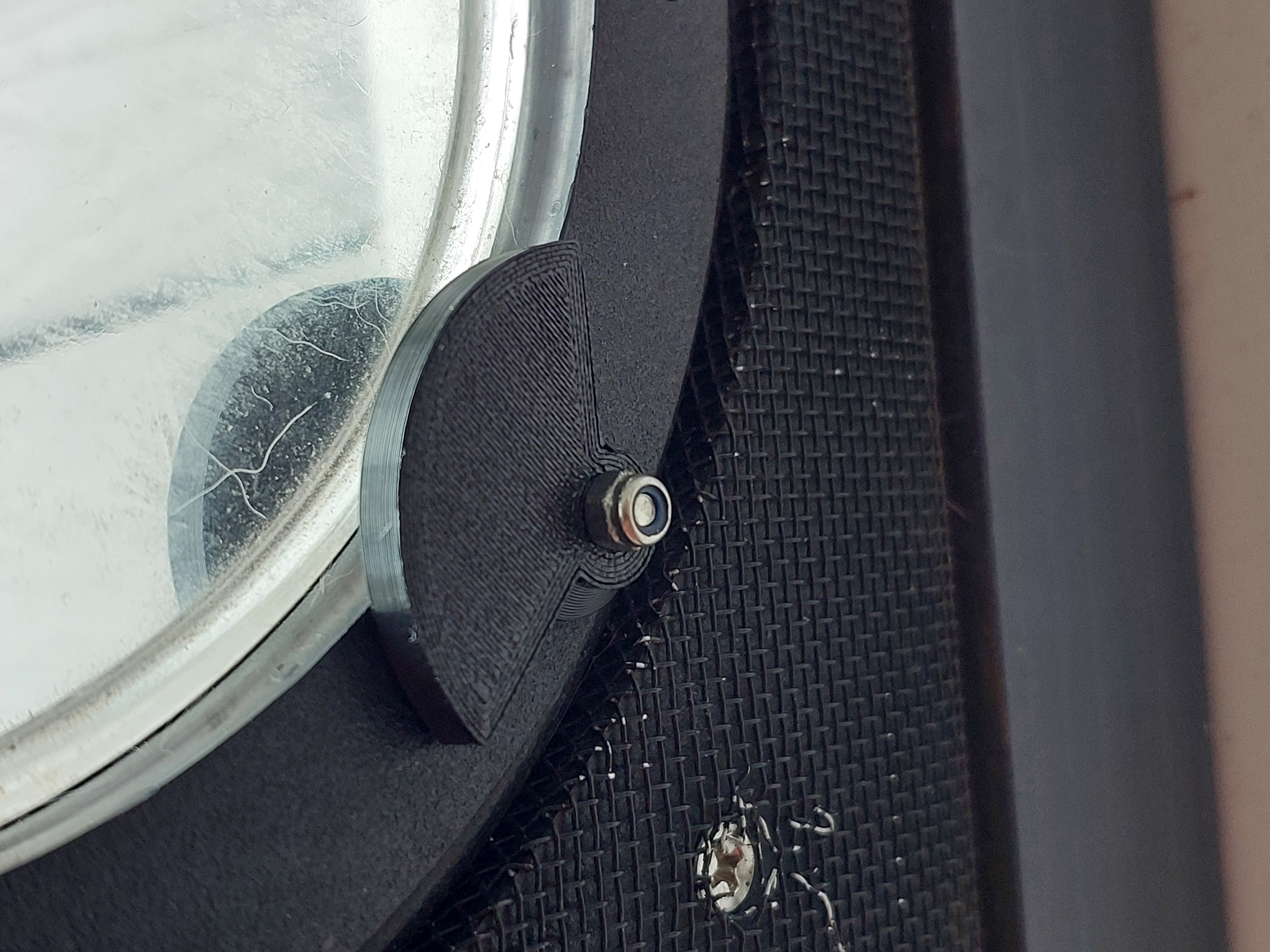

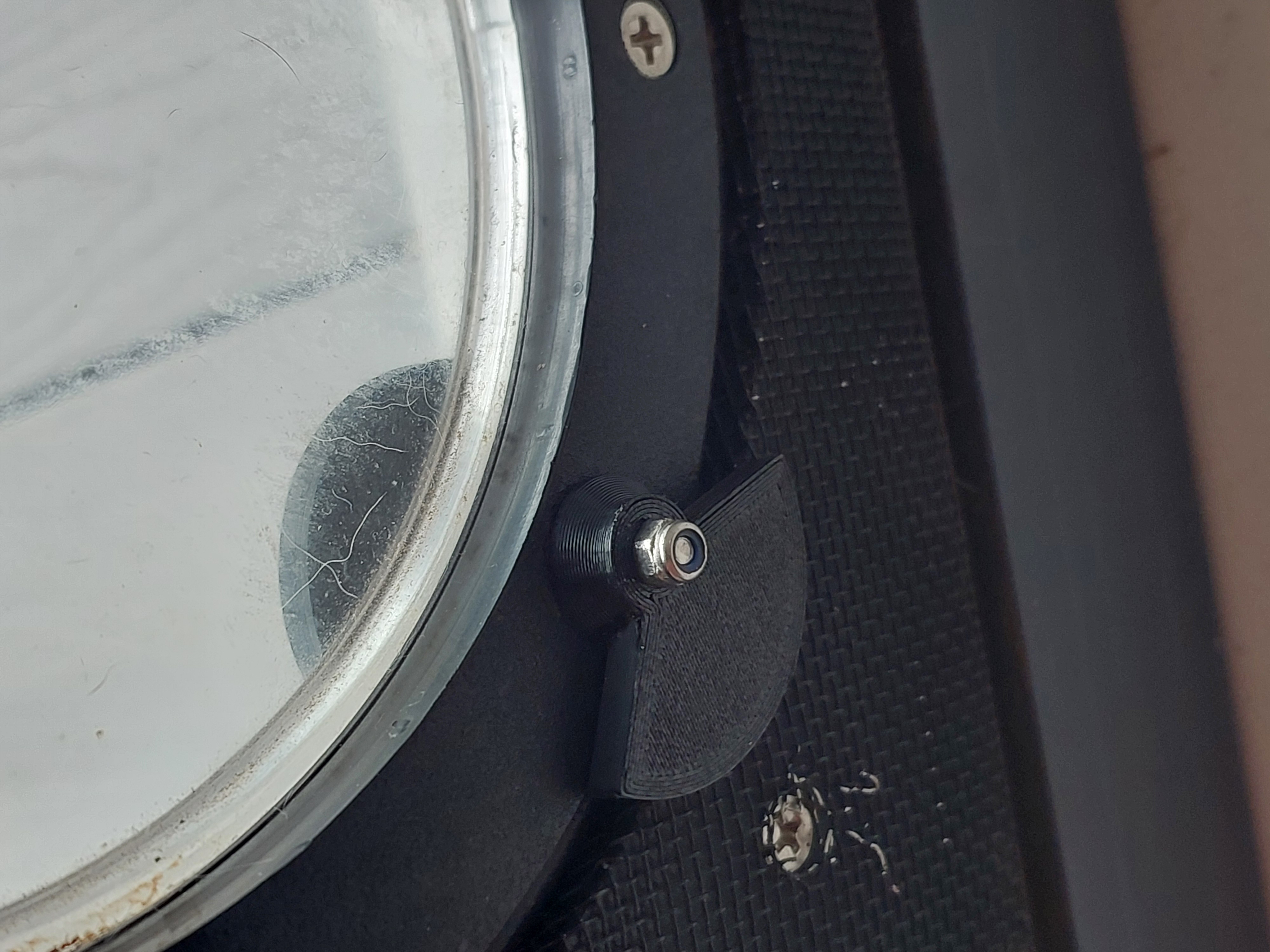

The latch on my proprietary cat door broke, and needed replacement.
The existing version required going outside to release the 'lock-in' latch. My version can be operated from either side.
Print two copies, drill an 11mm (7/16inch) hole through the frame of your pet door and connect the two pieces with a 3mm bolt and nut, with at least 25mm of thread.
Rotating either part will drive the opposite one - just turn either way to select open, lock-in, lock-out or locked.
Fusion file and 3MF file for dimension or slicing mods, as you desire….
Design and description by OzFax , licensed CC-BY.
