Pet Door with 4-Way Latch & Magnetic Door Return V1

NEW AND IMPROVED MODEL: Pet Door with 4-Way Latch & Magnetic Door Return V2 by jabbanman | Download free STL model | Printables.com

Inspiration comes from https://www.thingiverse.com/thing:4166823

Features

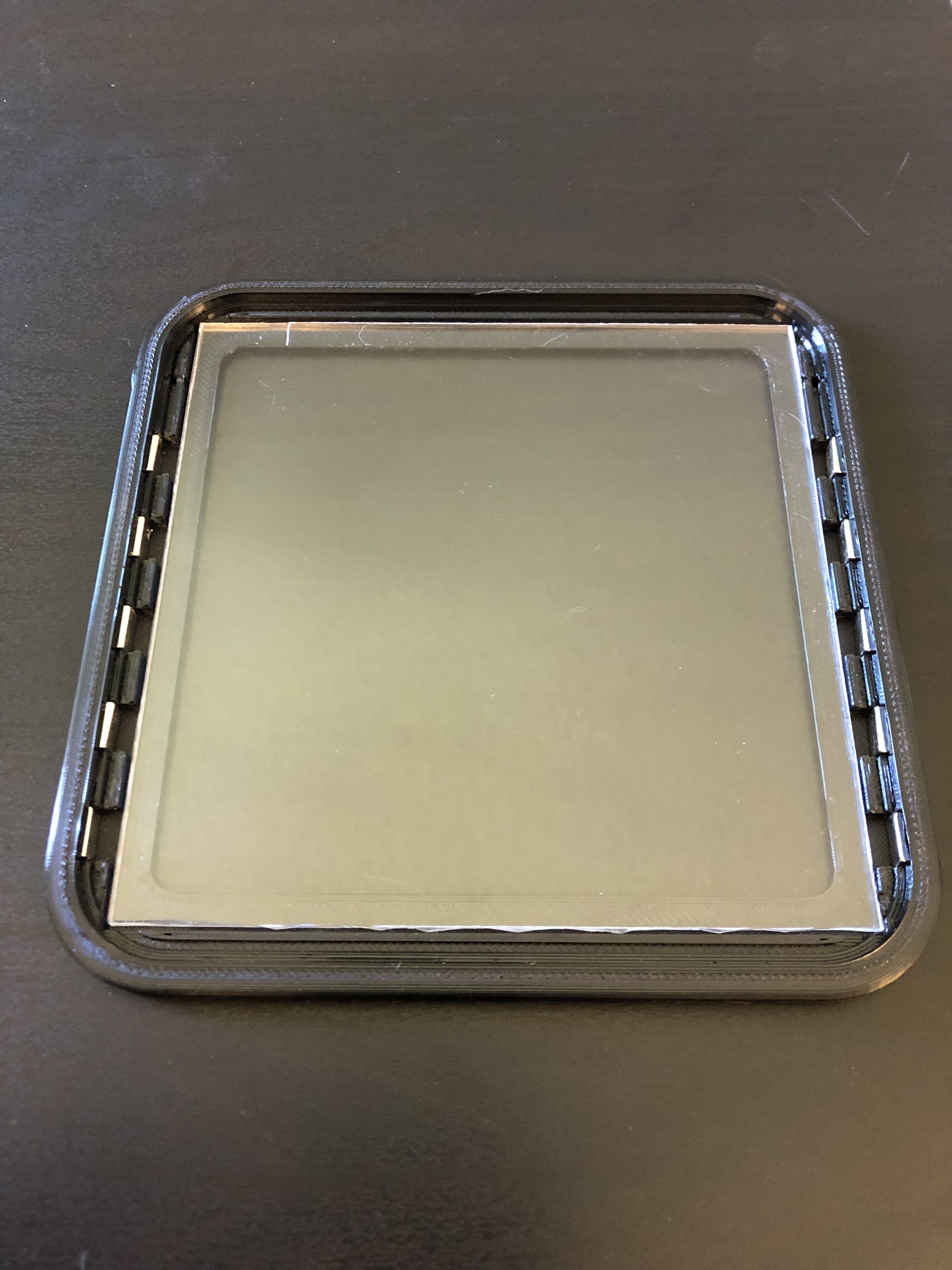

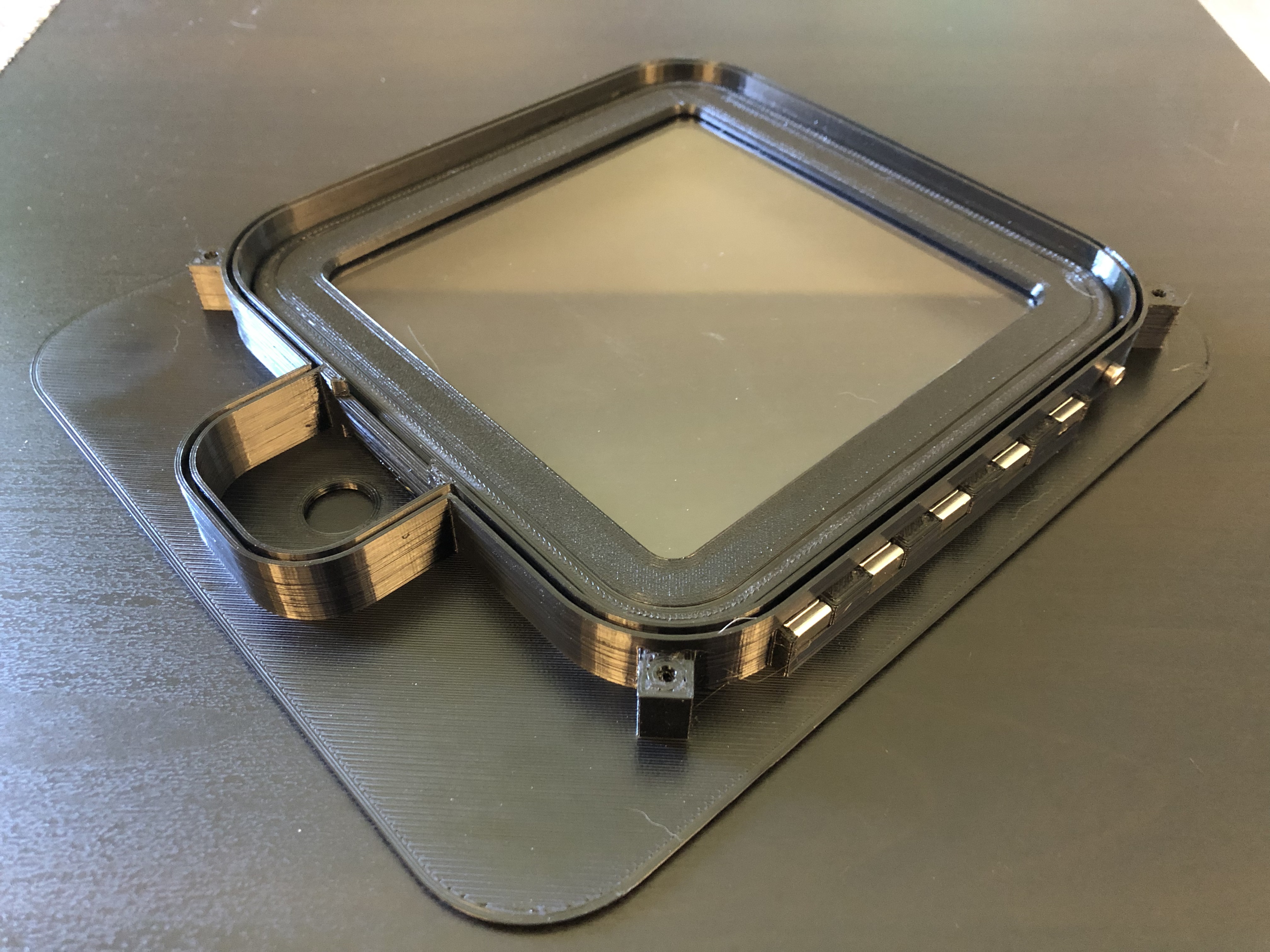

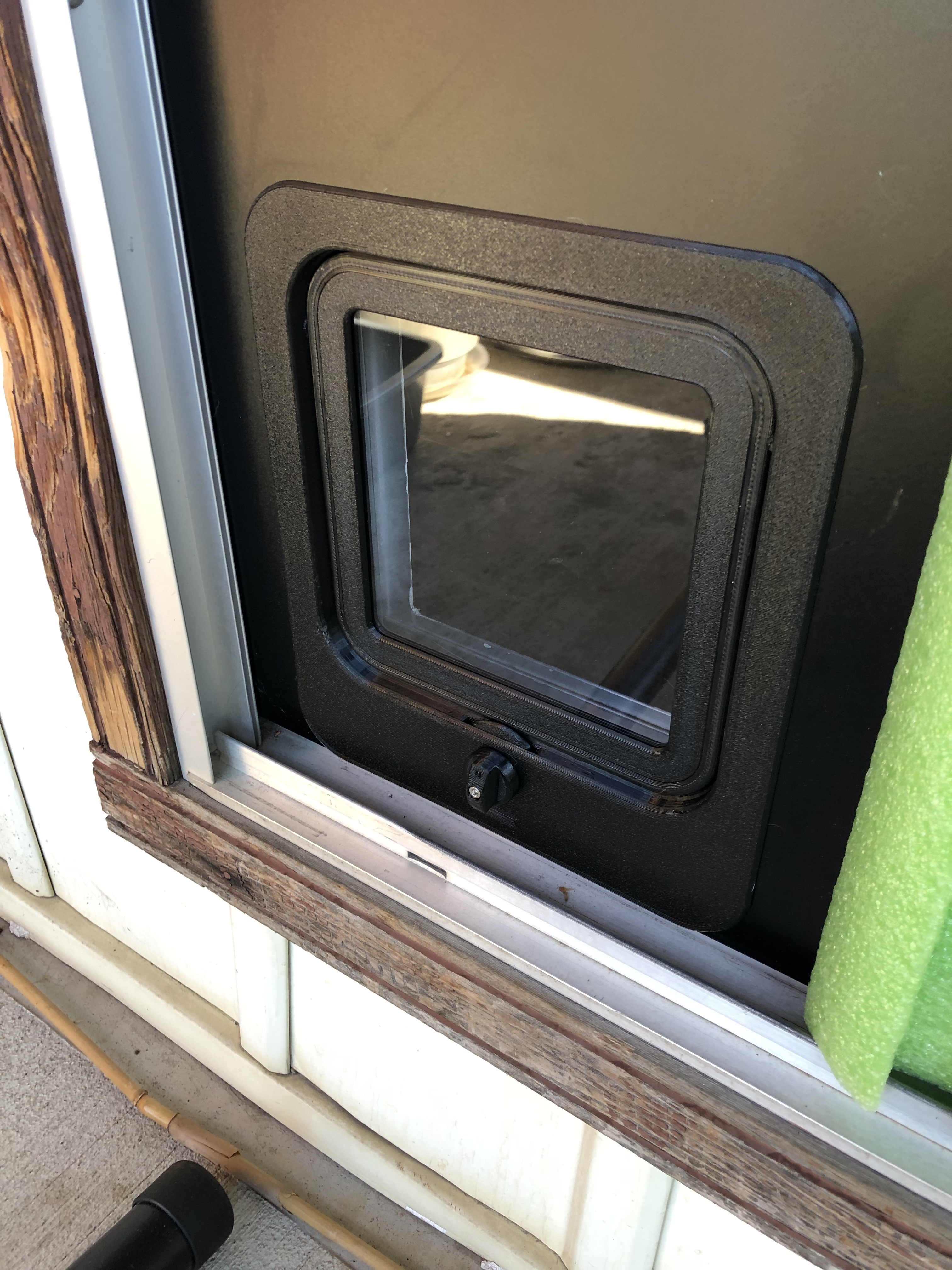

• 4-way selection knob to set 1) both ways open 2) both ways closed 3) exit only, and 4) enter only • Magnets inside the frame/door to fully close the door and prevent gusts of wind from blowing the door open • Water resistant with an outside drain hole from the latch mechanism cavity • Designed for a 16mm thick wall (I purchased a shelf from Home Depot and put it vertically into a sliding door track)

Printed Materials:

• 1 x Frame_Outside • 1 x Frame_Inside • 1 x Door_A • 1 x Door_B • 2 x Latch • 1 x Shaft • 2 x Dial

Purchased Materials

• 4 x M3x8 up to M3x14 • 2 x M3x12 up to M3x16 • 6 x M3 square nut • 40 x 4.8x9.5x2.8mm magnet • 2 x Bic Ball Point Pen Spring • 1 x 138x138x2.8mm acrylic sheet

Design and description by jabbanman , licensed CC-BY.
