Pi Zero Shelf
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~66 g
- Print time
- ~3.6 h
- Express shipping
- $20
More information

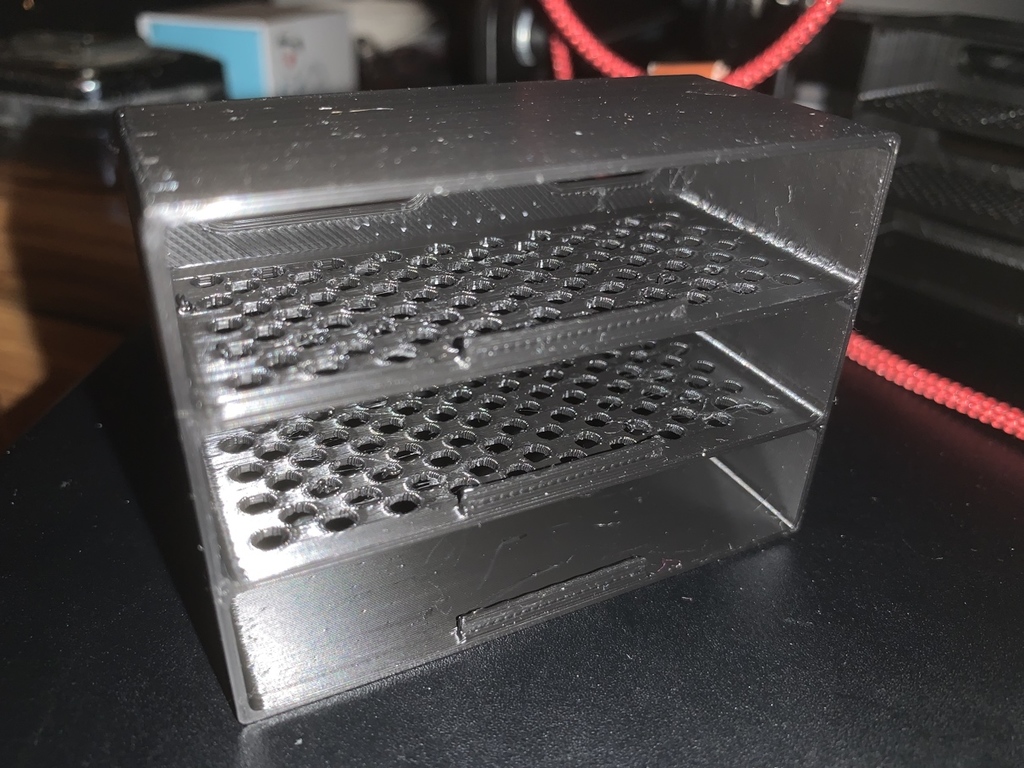

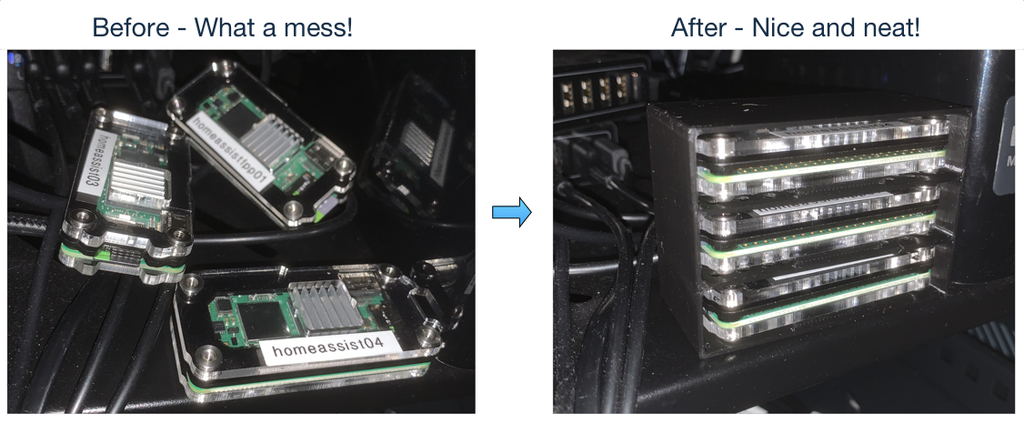

This shelf allows you to stack neatly between 2 and 6 Raspberry Pi Zeros encased in a minimalist case. I'm using the Zebra Zero Heatsink Case – Raspberry Pi Zero/Zero W/Zero 2 from C4Labs - https://www.c4labs.com/product/zero-heatsink-case-raspberry-pi-zero-w/ but any similar case with just a top and bottom should also work. Clearance may be an issue otherwise.
Note: There is no access to the GPIO pins when using this case. It is meant for running your Pi Zeros in a headless mode.
Choose from 2 high-level options
• Slots for power and HDMI access
• Slots for power only access

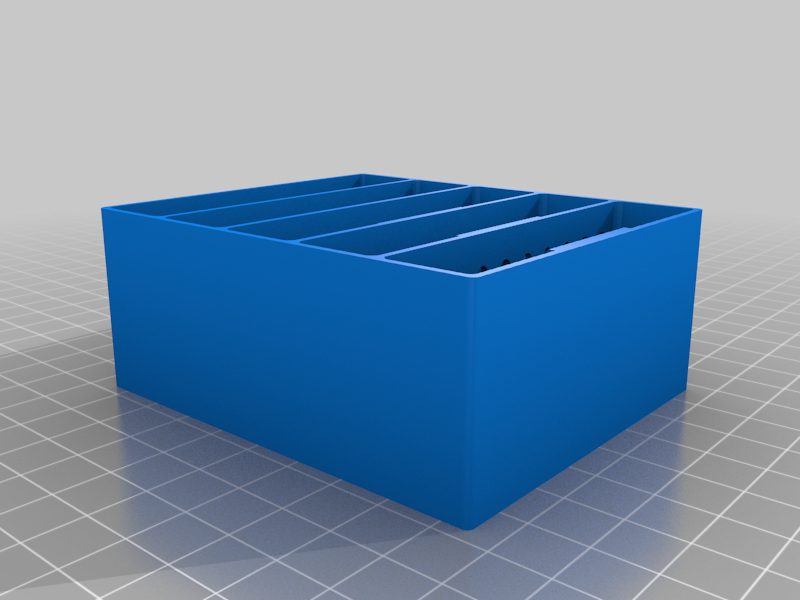

The shelf prints in a single body. Files include 2, 3, 4, 5 and 6 shelf versions.
Measurements
With the case on the Pi Zero, it measures 2.75" wide x 1.25" deep x 9/16" high. A tolerance of 0.08" has been added to allow a little clearance on all sides within each shelf slot.
The outer wall and shelf thickness is 0.05"
Print Settings
Printer Brand:
Creality
Printer: Ender 3
Rafts:
No
Supports: Doesn't Matter
Resolution:
0.2mm
Infill: 20%
Filament: Comgrow PLA Black
Notes
Printing with supports may add up to an additional hour to the print time. They may or may not be necessary for your print. Be cautious when removing them.
Category: Computer
Design and description by webguyatwork , licensed CC0.
