Picture Frame Clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~39 g
- Print time
- ~2.1 h
- Express shipping
- $20
More information

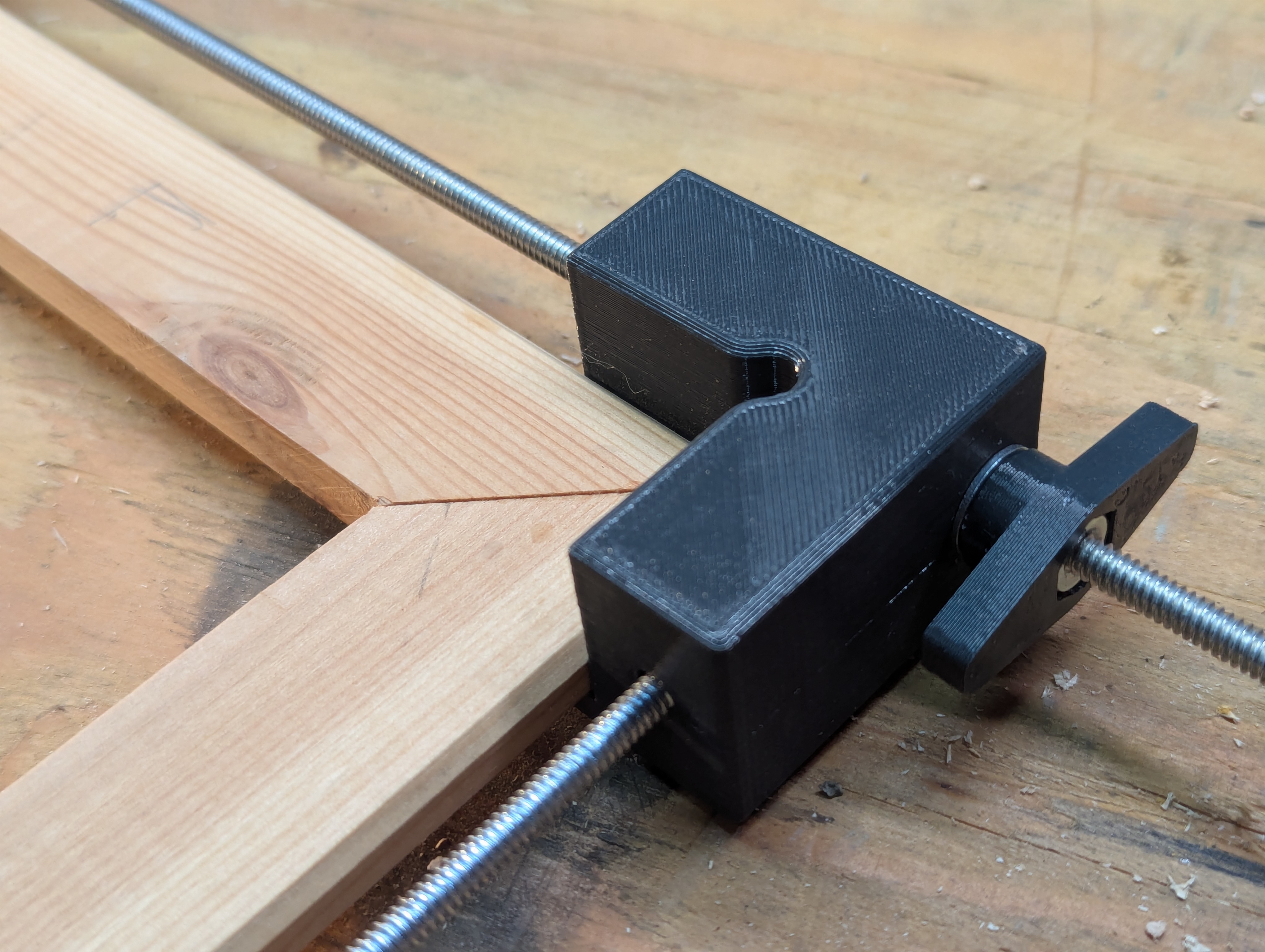

Simple clamping system to hold a mitered picture frame together during glue-up.
In addition to the printing the corners and the knobs, you'll need some 4 lengths of #10 threaded rod plus 8 hex nuts and 4 washers.
Fusion design is included; feel free to remix for different diameter rod.
Assembly instructions
• Cut your threaded rod into 4 sections, if needed.
• Use thread lock or glue to fix a hex nut to the end of each section

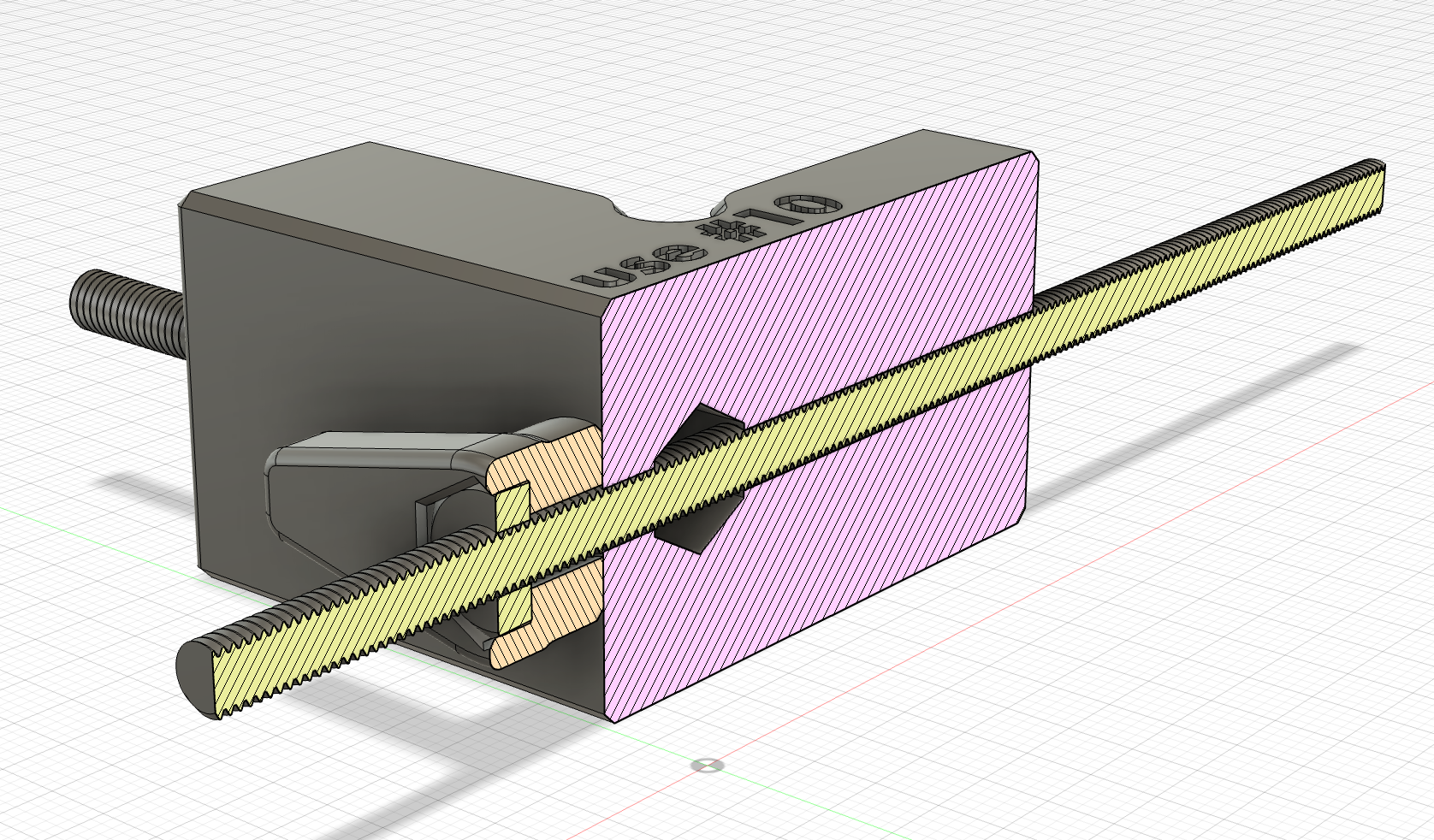

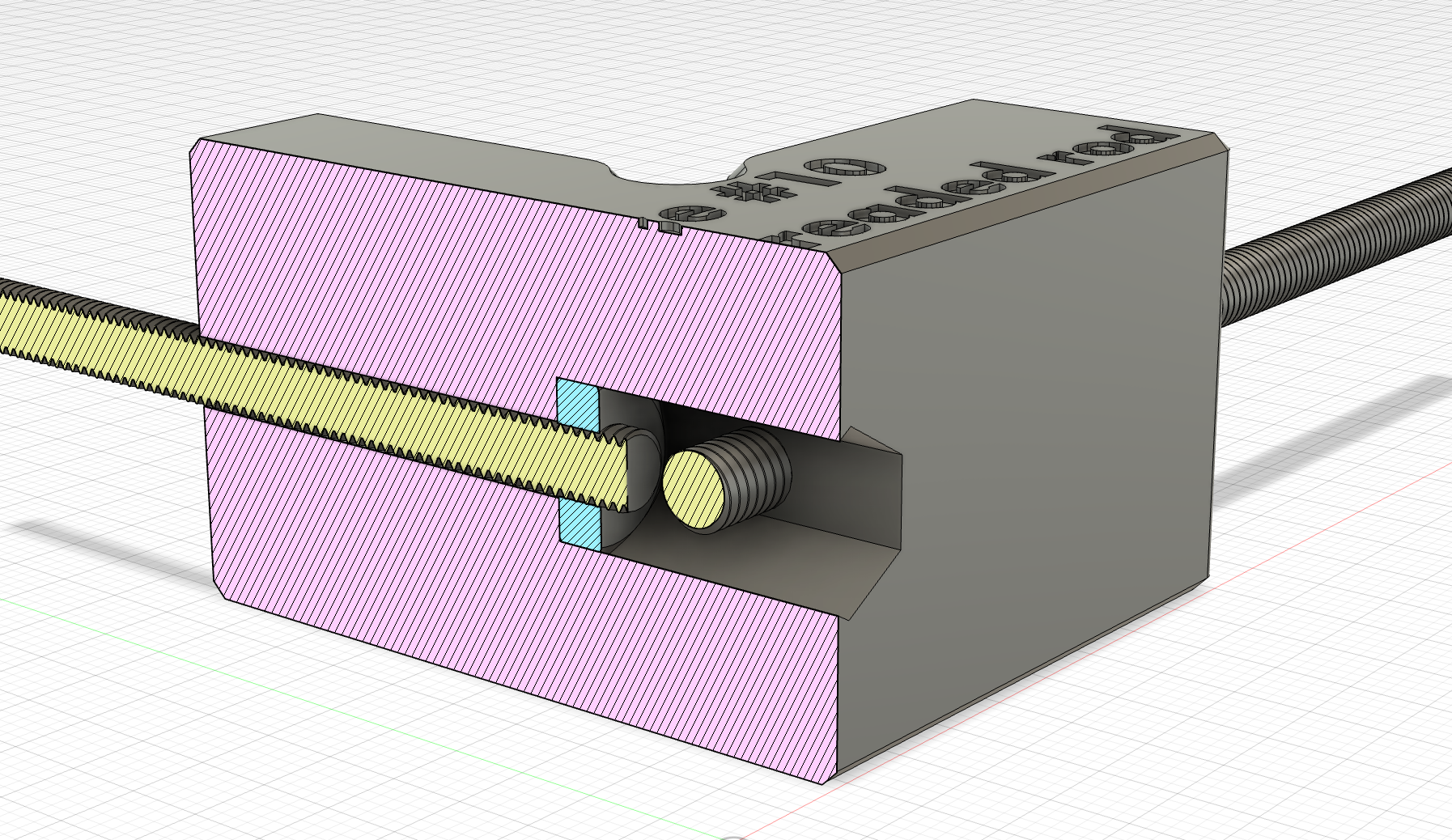

• Push a rod through the hex-shaped hole in each corner, so that the fixed hex nut captures the rod within the corner clamp.
• push the other end of each rod through the remaining hole to form a square
• add a washer, a knob, and a hex nut to the end of each rod.
• slid the washer and knob down to the corner clamp, and spin the nut down to meet them.
• pull the knob up to capture the nut, then spin the knob and nut tight into the corner clamp to seat the hex nut fully into the knob with a tight friction fit.
Design and description by phodgson , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Picture Frame Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
