Pinwheel / Windmill - 6 wings (Garden / Toy) (SC)

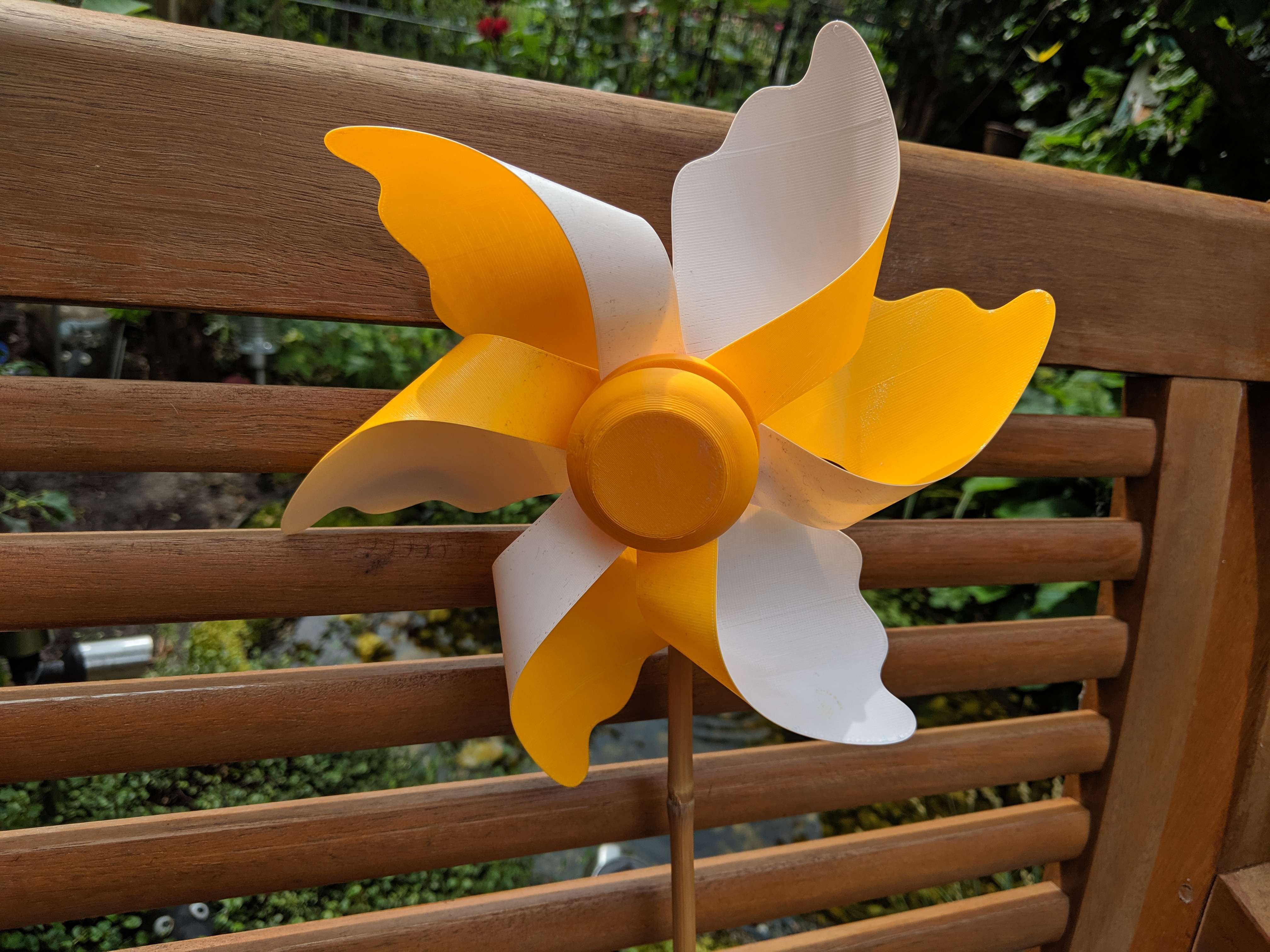

This is a little windmill that adds a little color sport into your e.g. garden. It's mainly a 200mm x 200mm x 0.4mm flat sheet of plastic with some mounts for the bent wings and a 10mm stick.

If you like this thing, you might want to print those, too:

Windmill (Garden / Toy): https://www.thingiverse.com/thing:3664786

Butterfly - Wiggly colorful blobs for the garden or flowerpot: https://www.thingiverse.com/thing:3668684

Butterfly - Wiggly colorful blobs for the garden or flowerpot: https://www.thingiverse.com/thing:3666452

Print instructions

Category: Outdoor & Garden Print Settings

Printer Brand: Prusa

Printer: i3 MK3

Rafts: No

Supports: No

Resolution: 0.2mm (that's important)

Infill: 10% (doesn't matter)

Filament: Das Filament PETG Melonengelb (Melon Yellow) / Weiß (White)

Notes

I've added 2 versions of the butterfly:

The parts starting with MMU are designed (but not tested) for multi color / multi material printing.

The other parts are design for single extrusion printers (like the one I'm using). I've used this service https://blog.prusaprinters.org/color-print/ to insert a filament change command at layer height 0.6mm into a gcode file rendered by Slic3r / PrusaSlicer. Might work with other slicers, too.

If no MMU part is available but a standard one, just print the standard one.

You've to print Windmill_8_Wings-Cap-Body1.stl and Windmill_8_Wings-Wings-Body.stl twice.

Post-Printing

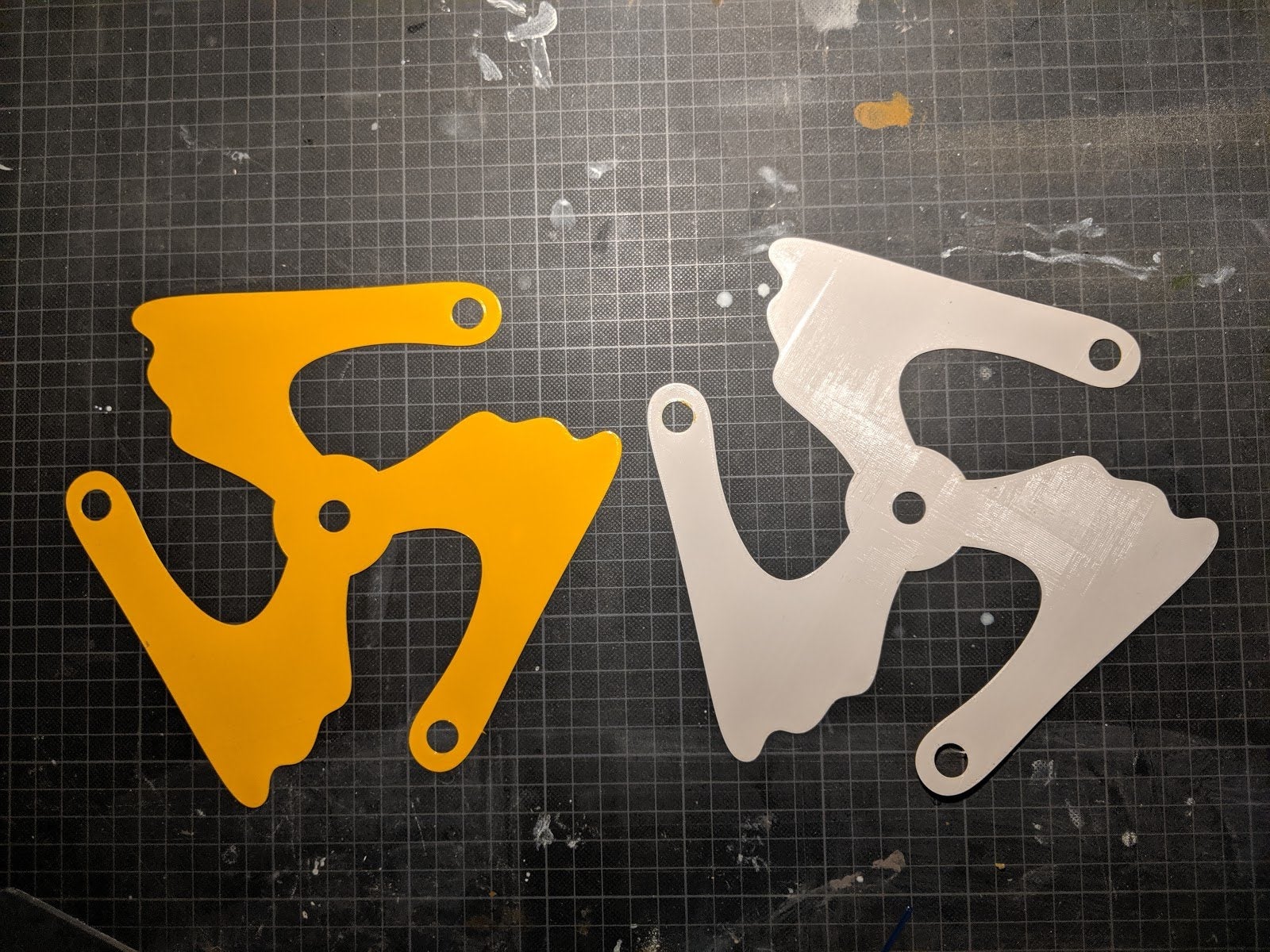

Grep both Windmill_8_Wings-Wings-Body.stl parts**

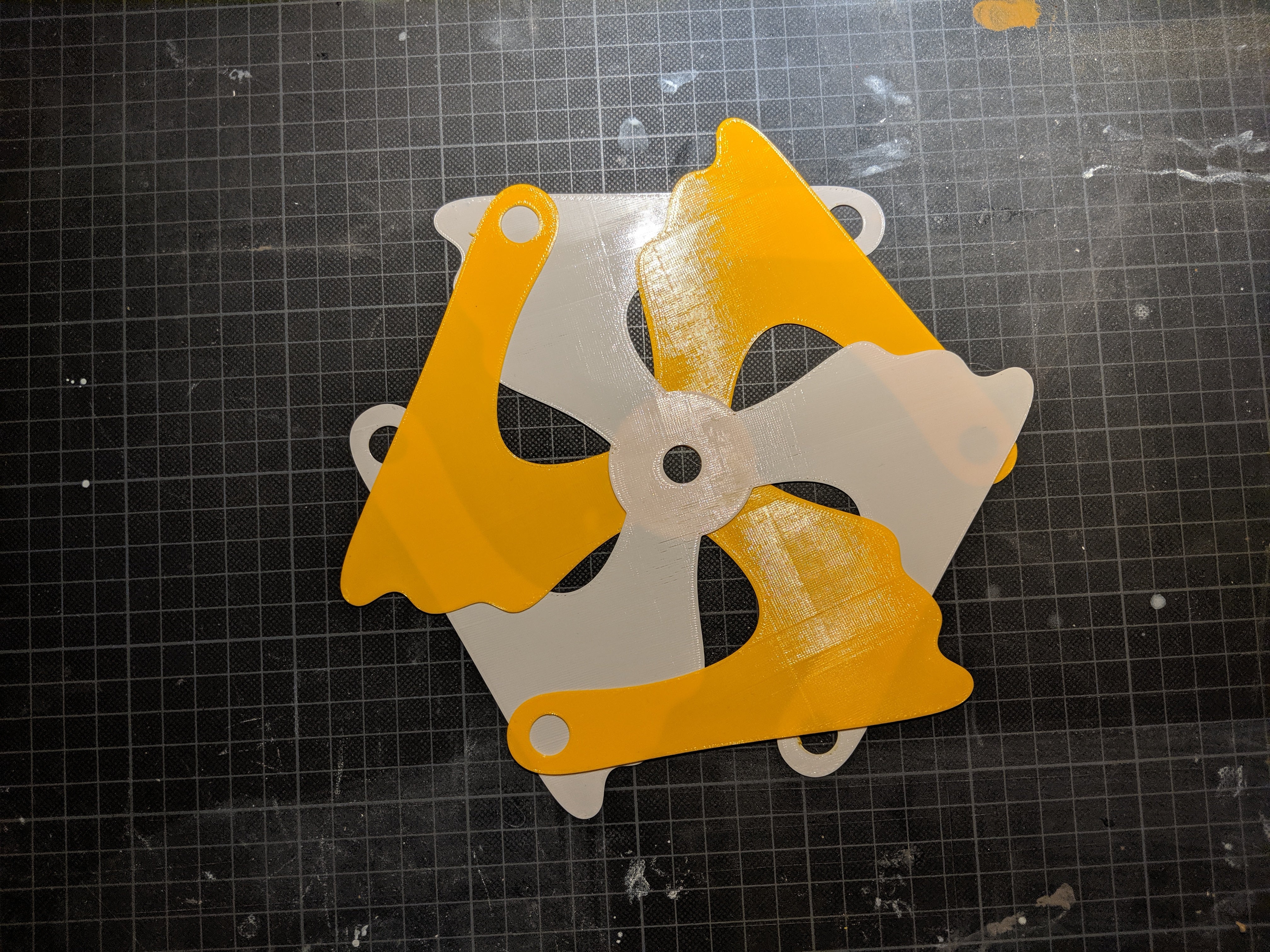

Lay them over each other and make sure that the wings are alternately up and down.**

Glue the ends of the wing with a half twist to the center.**

If all wings are glued to the center, glue the Windmill_8_Wings-WingCover-Body1.stl to the center**

Stack the parts like this. The only glued parts are the very left (cap) and the 2nd from the right (WingCover)**

Design and description by Wilko , licensed CC-BY.
