Planetary Gear
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~15 g
- Express shipping
- $20
More information

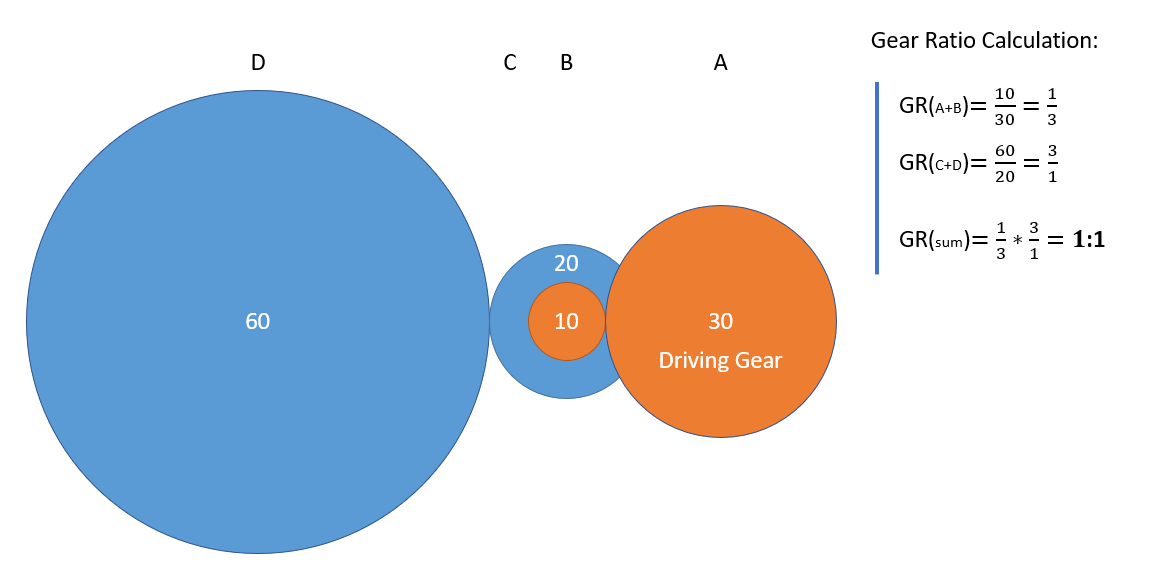

Gear has a 1:1 ratio. One turn inside will also turn the outside exactly one round.
Video: https://vimeo.com/456871494
Design:
• Fusion 360 -> Tools -> Add-ins -> Spur Gear
• Fusion 360 -> Solid -> Create -> FM Gears (Internal Gear)
Design Notes:
• FM Gear does not use any offset. To counter that I made the module slightly larger.
• Instead of using FM Gear you could also create a normal gear and use it to cut out the internal gear from a round solid. But don't use any Backlash for this one.
Wiki: https://en.wikipedia.org/wiki/Epicyclic_gearing
FM Gear: https://apps.autodesk.com/FUSION/en/Detail/Index?id=6294804001663532834
Print instructions
I used PETG since it sticks very well to the print bed. With PLA I have often problems if I have fine details in the first layer.
Design and description by Jens Willmer , licensed CC0.
Frequently asked
How long does shipping take?
Planetary Gear is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
