Potentiometer Knob - 6mm slotted
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~46 g
- Print time
- ~2.5 h
- Express shipping
- $20
More information

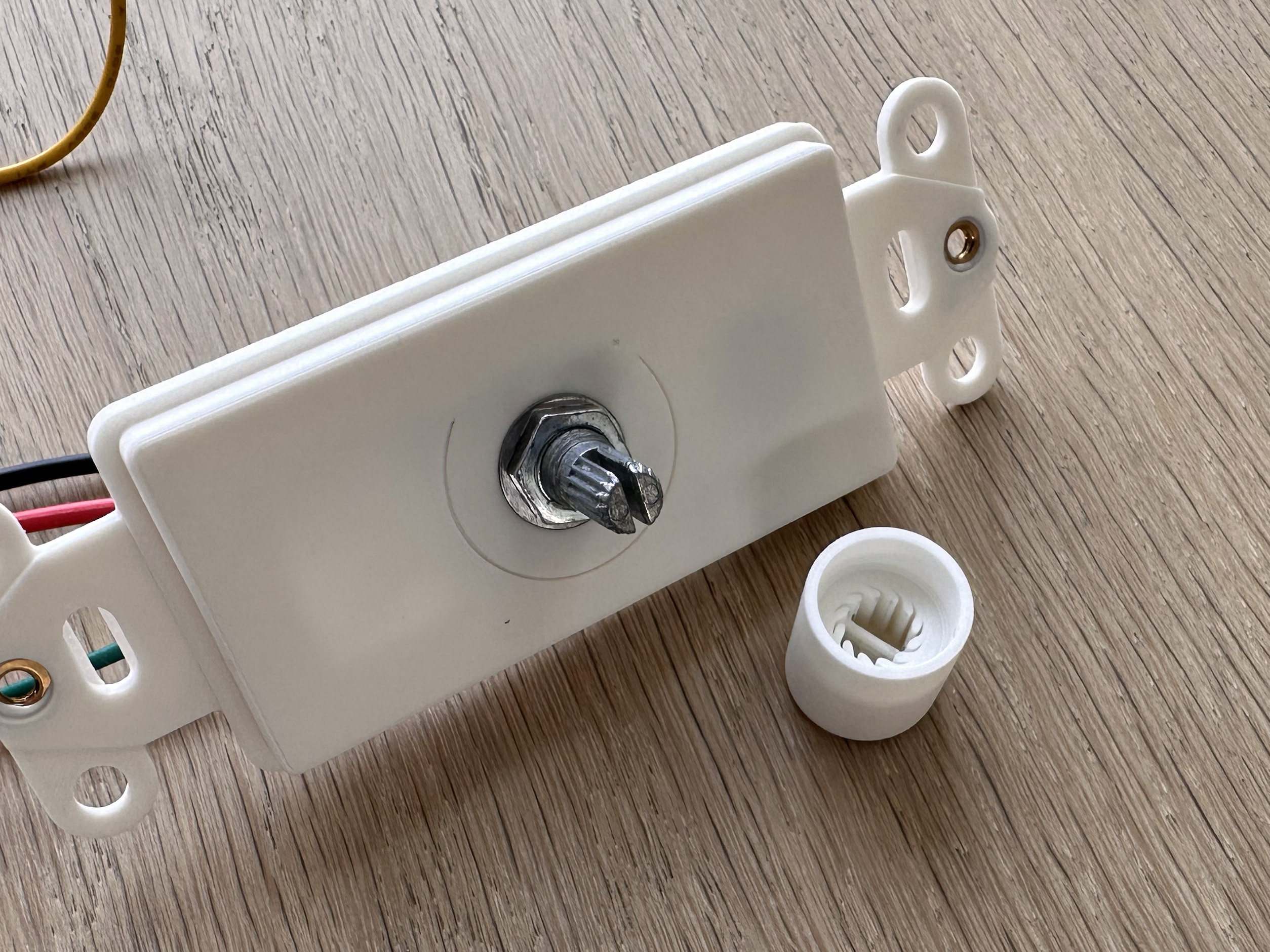

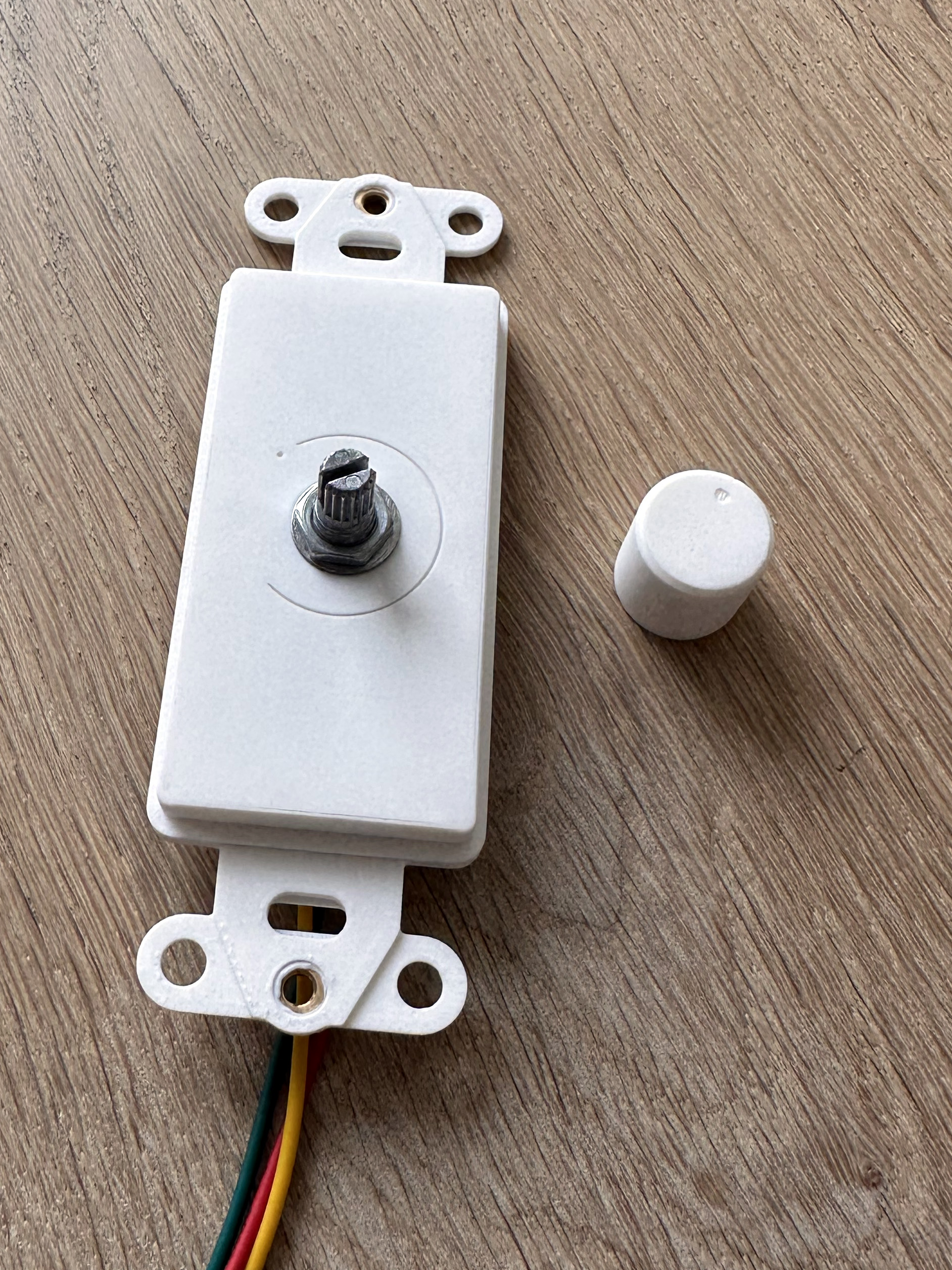

This knob fits a 6mm potentiometer with a slotted actuator.

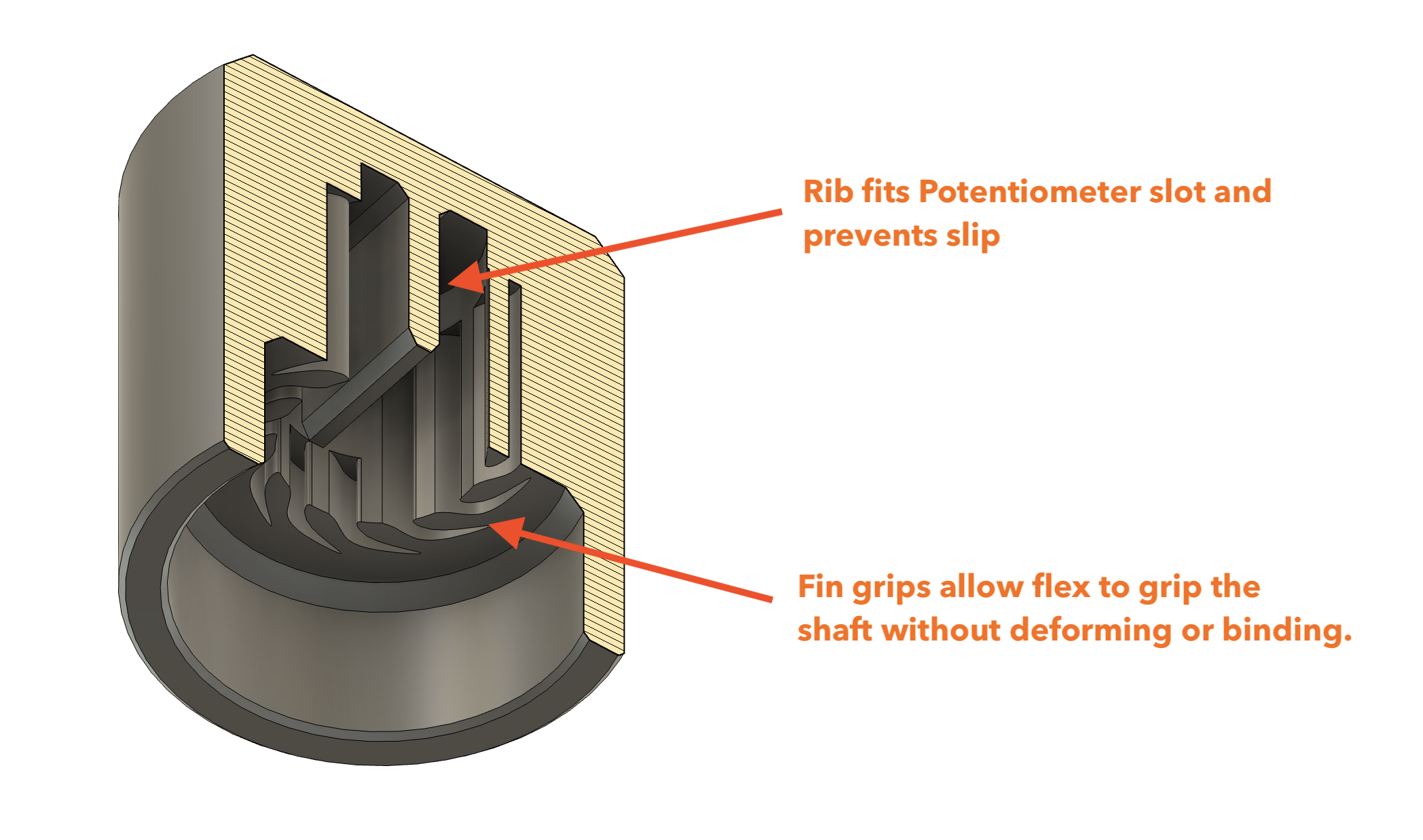

Why yet another design? This design uses grip fins and a rib to prevent slipping and has a nice press fit that is tolerant to variations in print quality. I also include Step and Fusion 360 files so you can modify.
I wanted to just print an available model, but the tolerances for a press fit are tight and all the existing designs I looked at didn't solve this problem. If they print small they are incredibly hard to press fit and then won't come off, and large will slip off. Grip fins solve this problem.
Print settings (3MF file includes these) :
• face down • align seam with the dot (back aligned .. rotate model so dot faces back) • reduce speed of outer wall print to 20mm/s … so all layers print at same speed to reduce/eliminate banding.
Design and description by Glen Bayley , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Potentiometer Knob - 6mm slotted is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
