Print-in-Place Bag Clip 2 (Parametric)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~6 g
- Express shipping
- $20
More information
What's new

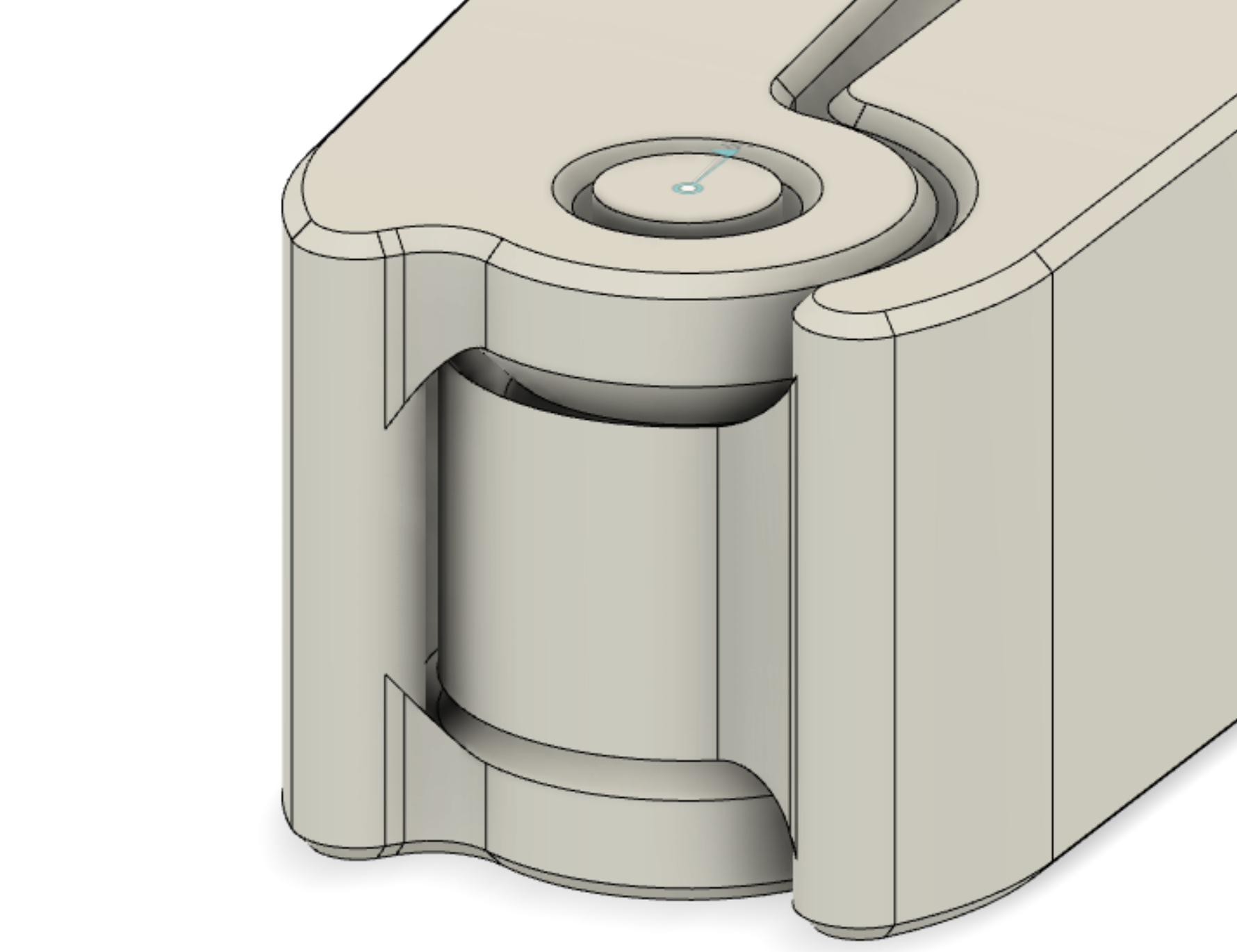

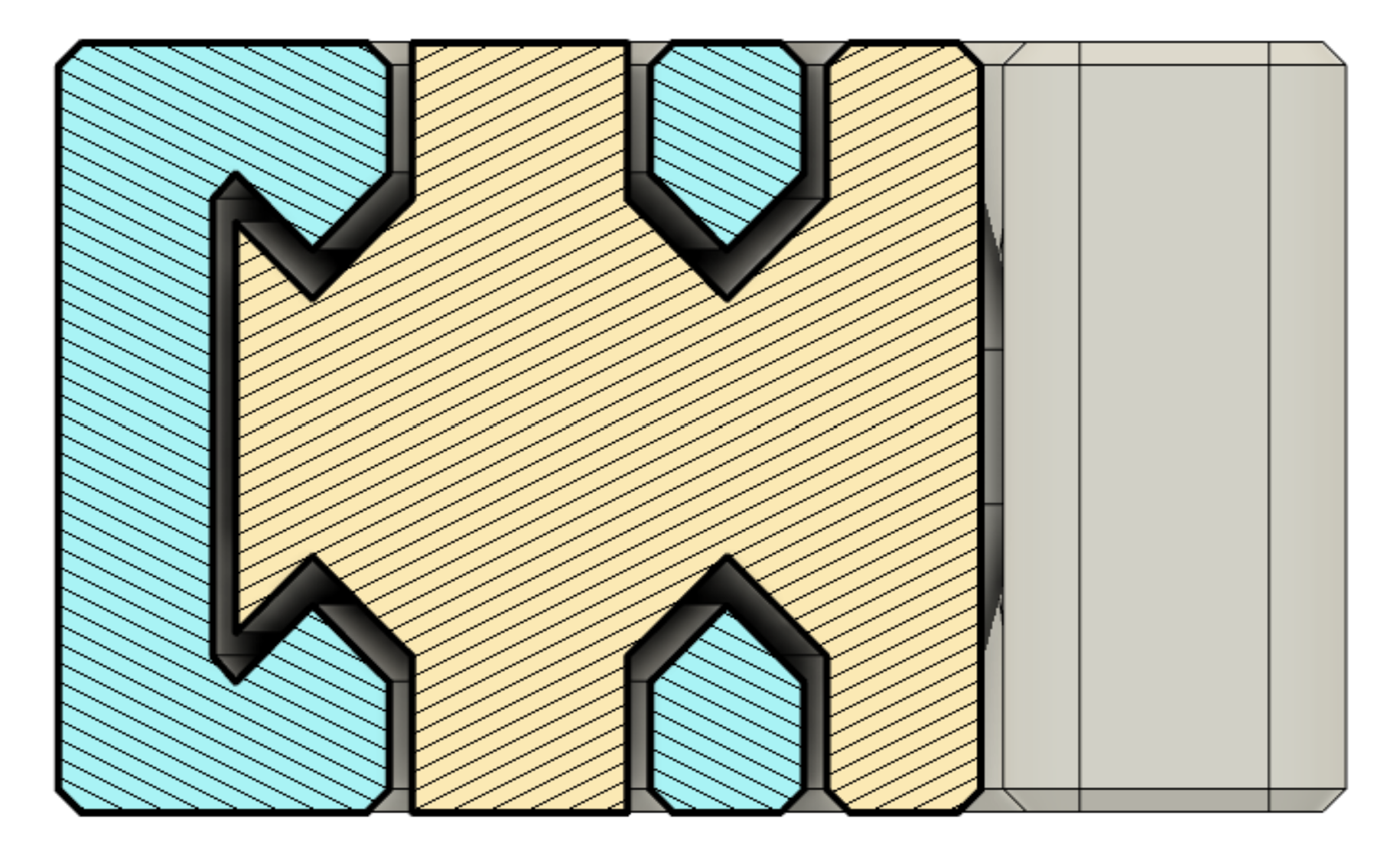

• Redesigned hinges that feel solid and last a lot longer • Reduced gap between the arms when closed • An easy to edit source file for all your customization needs • The clicky latch is now standard
How to print
I recommend you use PETG for its great bed adhesion and mechanical resilience. You could use PLA too, but beware that it will deform over time due to the pressure of whatever you're clamping constantly pushing the arms apart and eventually bending them slightly. If you do choose PLA, you can restore the clip to its original shape by compressing it with some kind of clamp and putting it in warm water for 10 minutes.
Common issues
The latch is too tight
• Try decreacing the extrusion multiplier in the slicer by 2–5% and printing again.
The latch is too loose
• Try increasing the extrusion multiplier in the slicer by 2–5% and printing again.
One or both hinges are fused at the bottom
• Try moving them carefully until they break free. The clip might still be savable. • Make sure you bed is clean and parts of the hinge don't come off during printing. • Make sure you are not printing to close to the bed
One or both hinges are fused all the way through
• Make sure you bed is clean and parts of the hinge don't come off during printing. • Try decreacing the extrusion multiplier in the slicer by 2–5% and printing again. • Try lowering the temperature by 5°C and printing again • Try increasing the cooling
The gap between the arms is too wide
• Put the clip in hot water for 5 minutes (60-80 degrees depending on material). You can also use the heated bed for this step. • Bend the arm that doesn't have the latch outwards a bit. • After it cools off you'll get much better clamping forces
How to edit
If you want to make a custom-legth clip, add imbedded magnets, or change the design enitrely—download the .f3d file.
Changing the length
• Find the Change Parameters option in the Solid tab (it might be in the dropdown menu titled Modify). • Find the cliplength parameter • Enter the desired value in mm and press enter
Enabling/disabling arm reinforcments
• Find the Reinforcement group in the timeline • Right click and sellect Suppress/Unsuppress Features
Design and description by neoyarus , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Print-in-Place Bag Clip 2 (Parametric) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
