Edit 2025-02-11 : I made a gravity locked print in place hinge !
Hi,
I have created this concealed hinge that print in place.
There is one functional version, robust enough for real applications, and one version just to play with. (It is oddly satisfying).
Please note that the files are LEFT side hinges. You will have to mirror the mechanism for a right side hinge.
After printing, you will have to force a little to free the model the first time.
(There are 8 little pillars around the arms which will break, it is normal. They are built-in supports)
The functional version contains 3 items : the mechanism and 2 trapezoids.

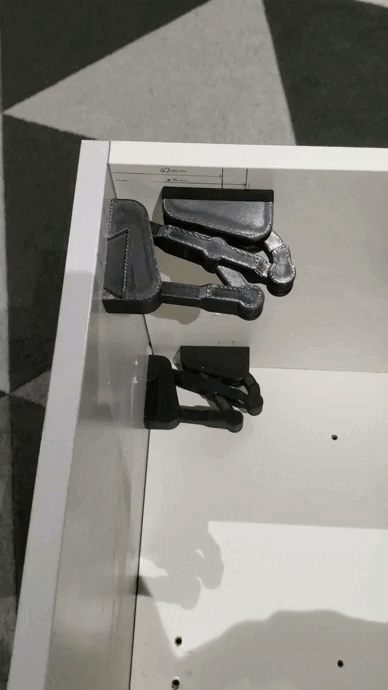

Mounting the hinge is very easy : One trapezoid is screwed in the door and the other one is screwed in the furniture.
The mechanism will then be pressfit on these.
Be carefull, the trapezoids have an orientation !

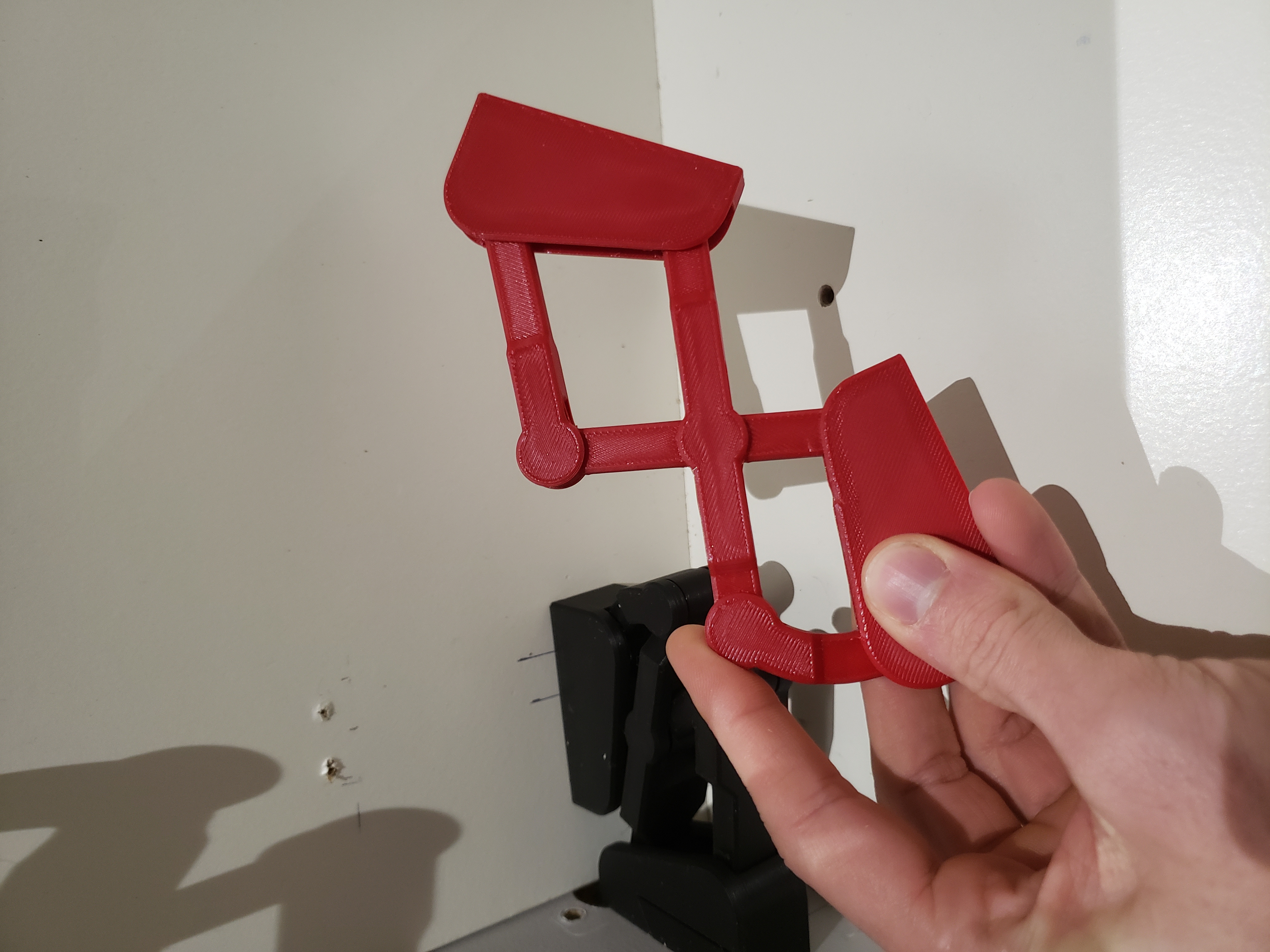

The figure below illustrate where you should screw the trapezoids.
The cinematic of the hinge allows up to 21mm of overlap.
If you like my work, please download or print, it helps :)
Alexandre
Design and description by SigmaT4 , licensed CC-BY-SA.
