Printable Mini Fridge Door for Voron 0.2 V0.2

Printable Mini Fridge Door for Voron 0.2 V0.2

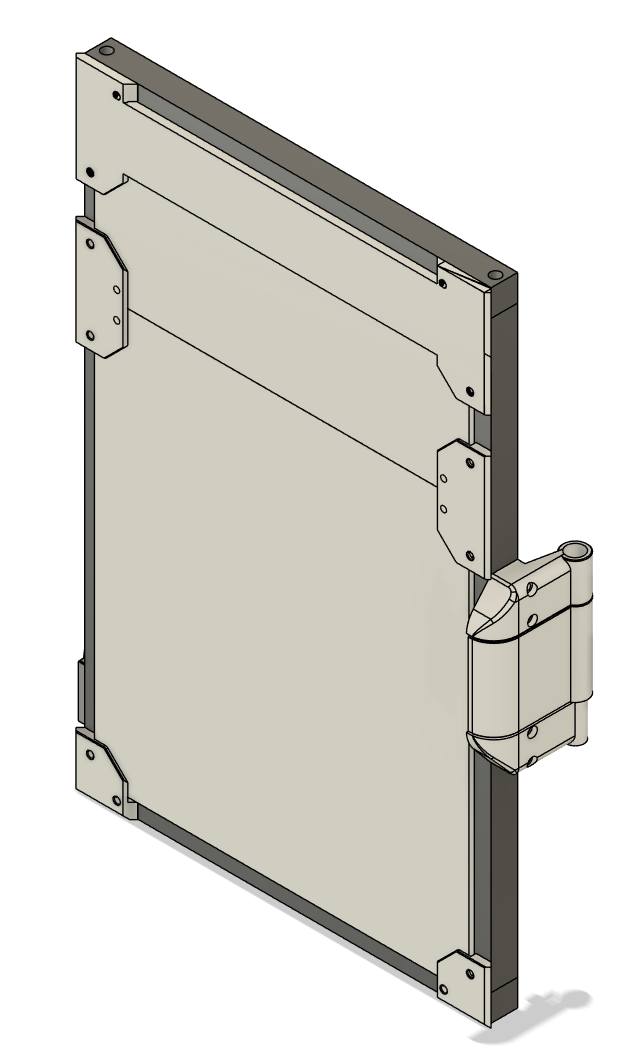

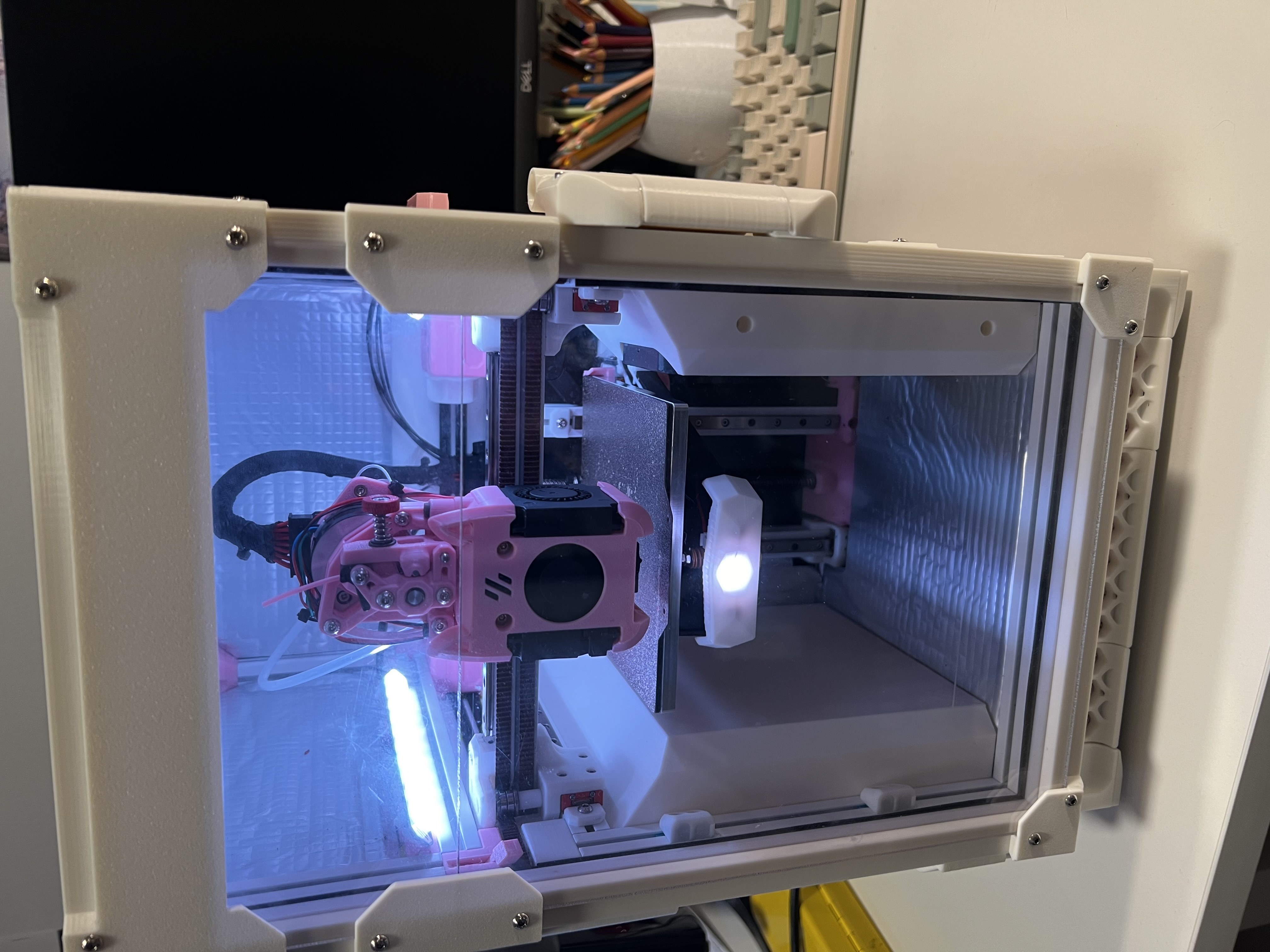

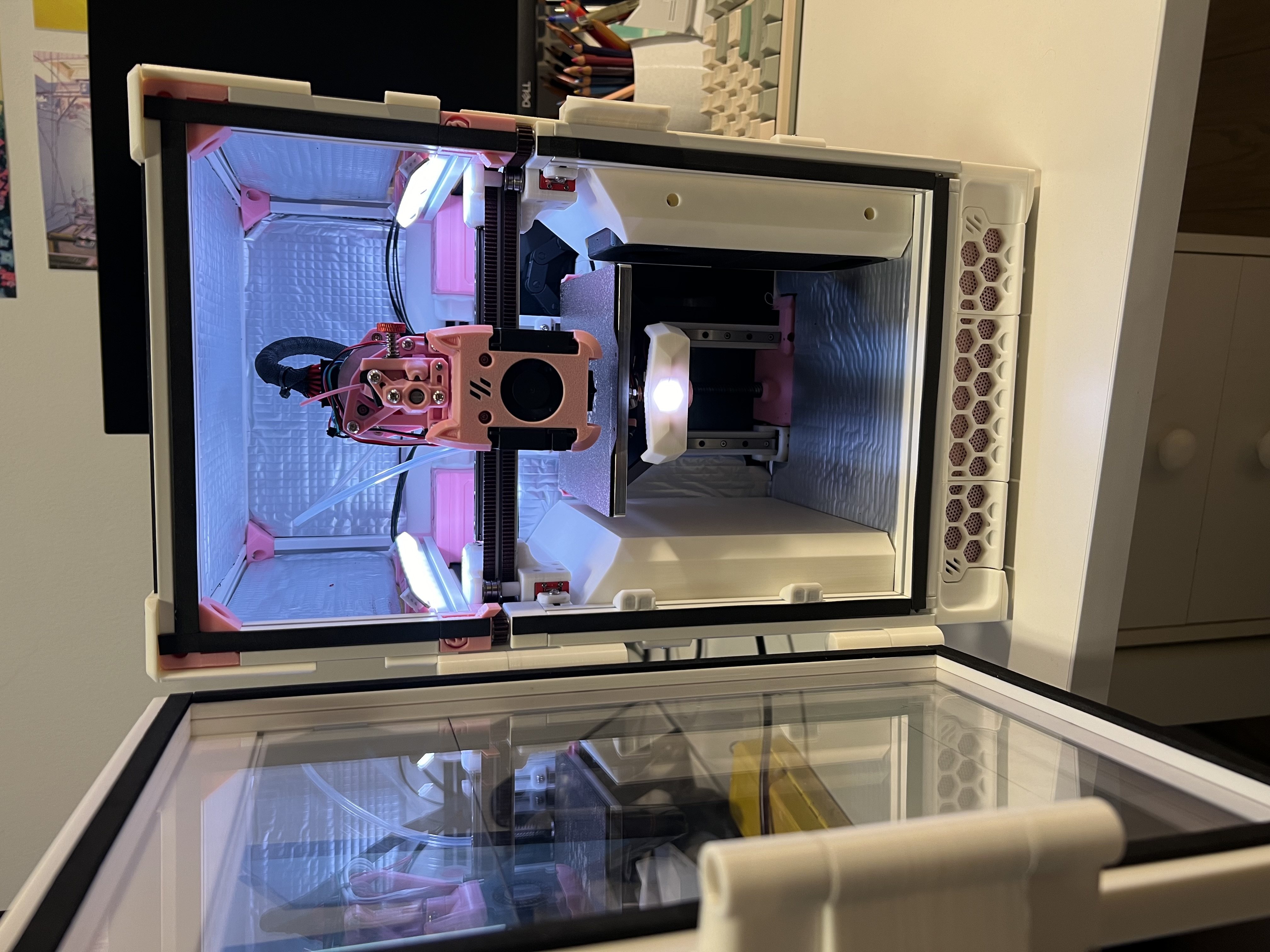

This is my budget version of a mini-fridge door. It doesn't require any extra extrusions and reuses some leftover hardware you might have from an Ender 3/5.

Design considerations

• fully 3D printable on a 250mm x 250mm bed • minmal extra hardware • reuse the existing panels from a 0.2 kit • create a better seal to minimise heat losses (untested, unverified)

Requirements/BOM

• Voron 0.2 with 80mm tophat • 30 mm tophat extension https://www.printables.com/model/586916-voron-02-tophat-panel-extension-remix & https://www.printables.com/model/526265-voron-02-tophat-spacer-incl-panel-extension/files • 4 qty of M5x20mm BHCS • 4 qty of M5 ID 8mm OD 7mm height bushing (found on Ender 3/5, used to space the V-wheels) • 2 qty of M5 nylon lock nut (standard M5 nut could work untested) • ~20 qty of M3x5mmODx4mm height heat set inserts • 8 qty 6mm diameter x 3mm height magnets • 10 qty of M3x8mm SHCS (to attach the hinges and latch) • 2 qty M3x16mm SHCS (to attach the handle) • All the M3 hardware to attach the front panel • 339mm x 209mm x 3mm Acrylic/Polycarbonate panel (I chose PC) • 3mm foam tape • 1mm foam tape

I've lost the 3D design file for the Hinge-Lower part, only the .3mf is available.

All 4 panel clips are uploaded as a single .3mf because I got lazy.

I hope the community can improve upon the design. These are the current limitations I'm aware of.

• Not the greatest sealing, especially in the corners on the right hand side. • Gaps at the front idlers since the panel clips on the side 3mm panels are removed. • A little bit of a collision between the latch and the modified handle (the radius was increased to fit the 5mm bolt)

Thanks!

Design and description by onodono , licensed CC-BY.
