Prusa i3 PINDA adjustment tool

This is the tool and the process to adjust the PINDA probe position on Prusa i3 printers.

The standard PINDA calibration process provided by Prusa is https://help.prusa3d.com/guide/9-preflight-check_95128

The inconvenience with Prusa process is that in Step 2 “Move the extruder carefully all the way to the right.”. It’s easy to scratch the hotbed and manually rotating the right Z motor is not convenient, too. So, here is the new process.

• Unscrew the bolt that holds PINDA sensor and move PINDA up. Don’t pull the cable. Use a flat screwdriver to ease the PINDA holder if needed.

• With the printer powered off move the extruder down (similar to Prusa Step 1) until it touches the hotbed.

• Power on the printer and through Settings -> Move Axis -> Move Z, move the extruder all the way up until both sides of the x-axis assembly reach the upper point (same as during the Z calibration process). Both sides should hit the stop. X-axis assembly is horizontally leveled, now.

• Through the same menu move the extruder down until the nozzle is around 11 mm above the hotbed.

• Push the narrow end of the calibration tool under the nozzle. When it is stuck move the other end of the calibration tool to be under the PINDA. The text "Prusa i3/PINDA" is at the bottom of the tool.

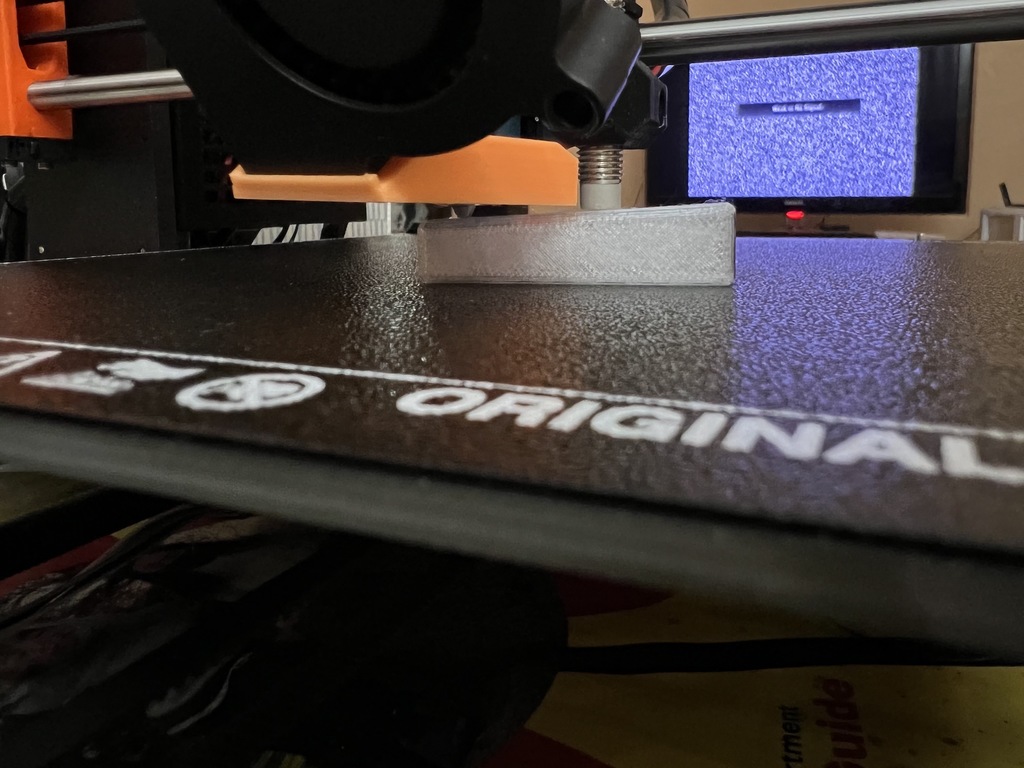

• Move the PINDA down until it touches the tool. See the picture.

• Tighten the bolt holding PINDA.

You are done. Congratulations!

Print Settings

Printer Brand:

Prusa

Printer: i3 MK2.5

Rafts:

Doesn't Matter

Supports: No

Resolution:

0.2

Infill: 20%

Notes

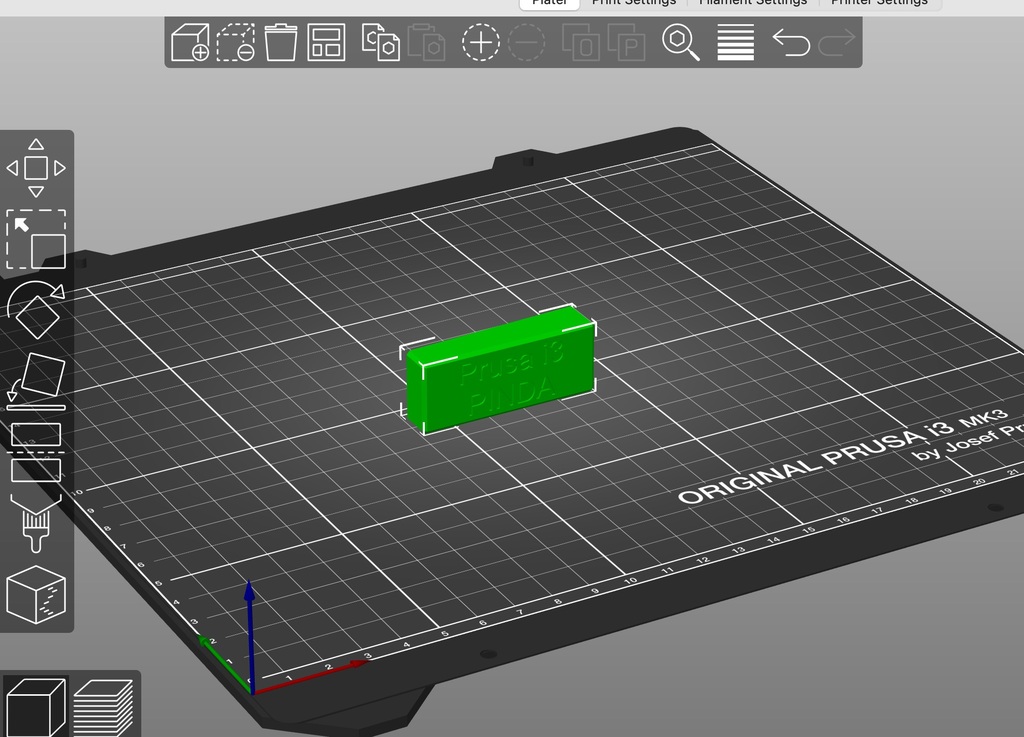

Any filament and resolution will work. Print the calibration tool on its side (see the picture).

Category: 3D Printer Accessories

Design and description by Sergiy Lozovsky , licensed CC-BY.
