Prusa MK3(S) x-axis removal tool
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information
Removing the x-axis end pieces on the Prusa MK3(S) is difficult as they are a very tight fit. This tool allows them to be removed safely and easily.
x3. M6 nuts (10 mm spanner) x2. M8 washer (outer diameter 15.9mm / thickness 1.4mm) M6 threaded rod - length 36cm
I used M8 washers as opposed to M6 as they spread the load into the PETG parts slightly better. You could use a dab of glue to hold them in place, but this is not necessary.
Screenshot shows the dimensions of the printed part, the countersunk hole is of depth 1.5mm
The parts were printed in PETG, using 5 perimeters and 40% grid infill.

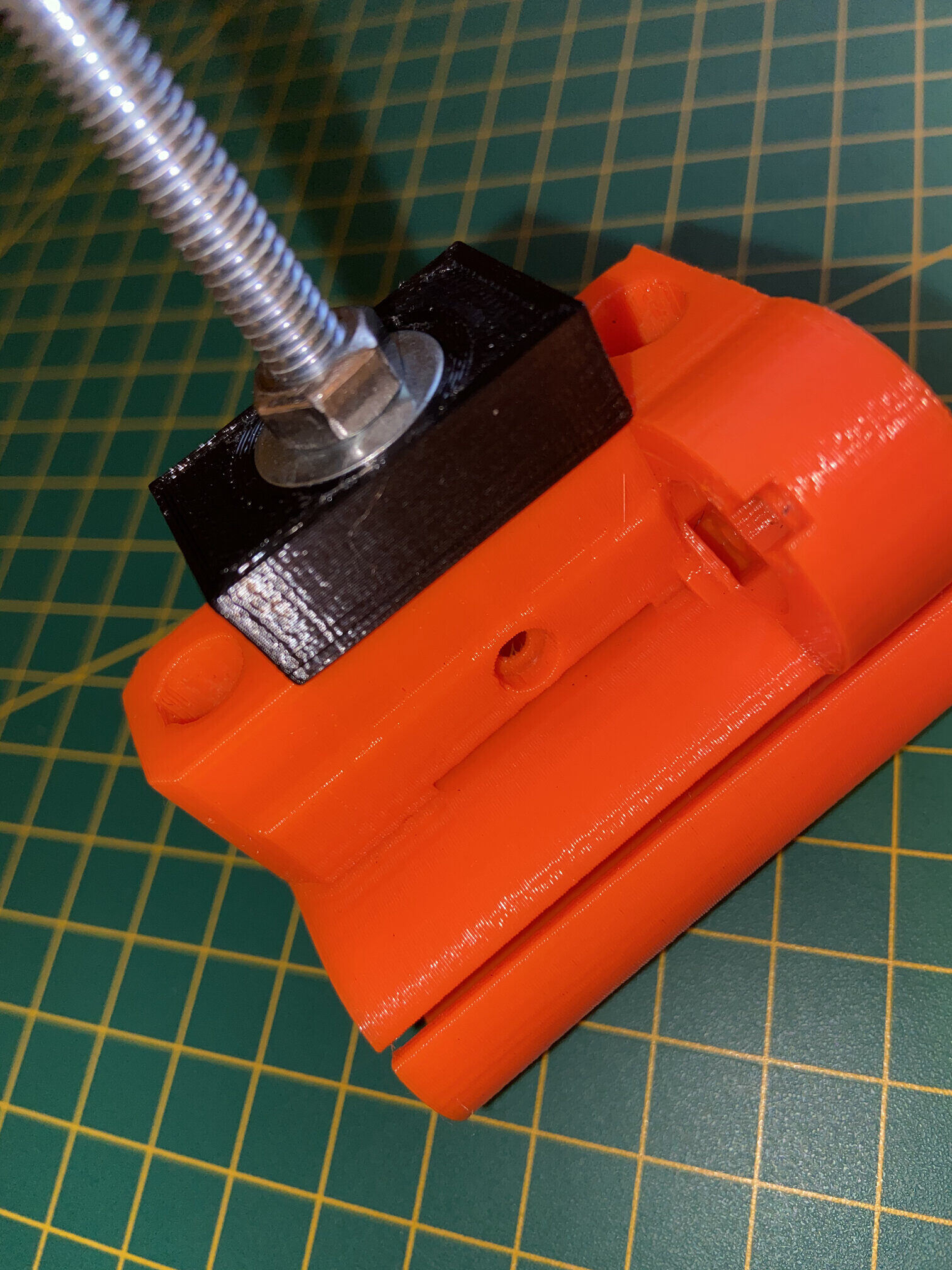

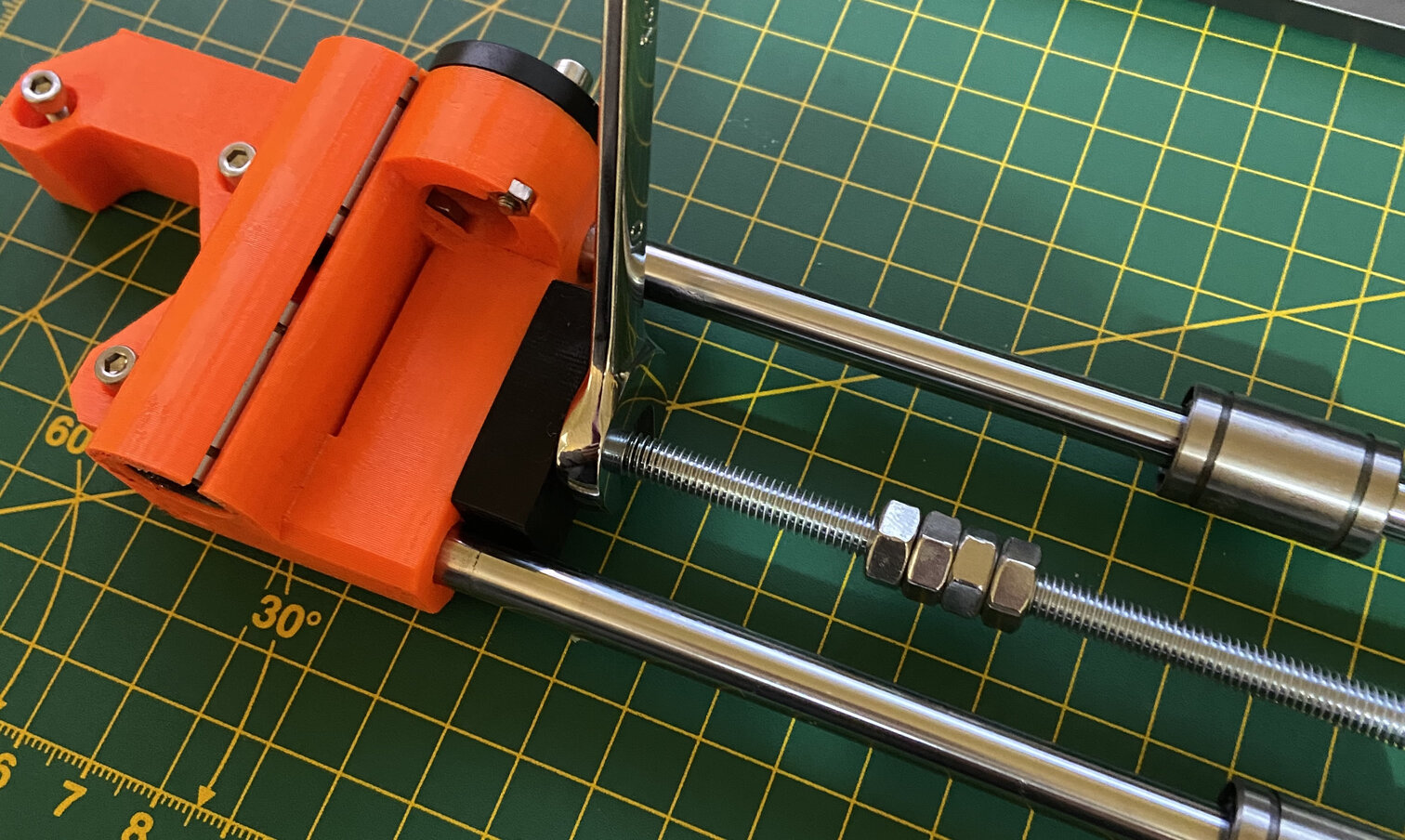

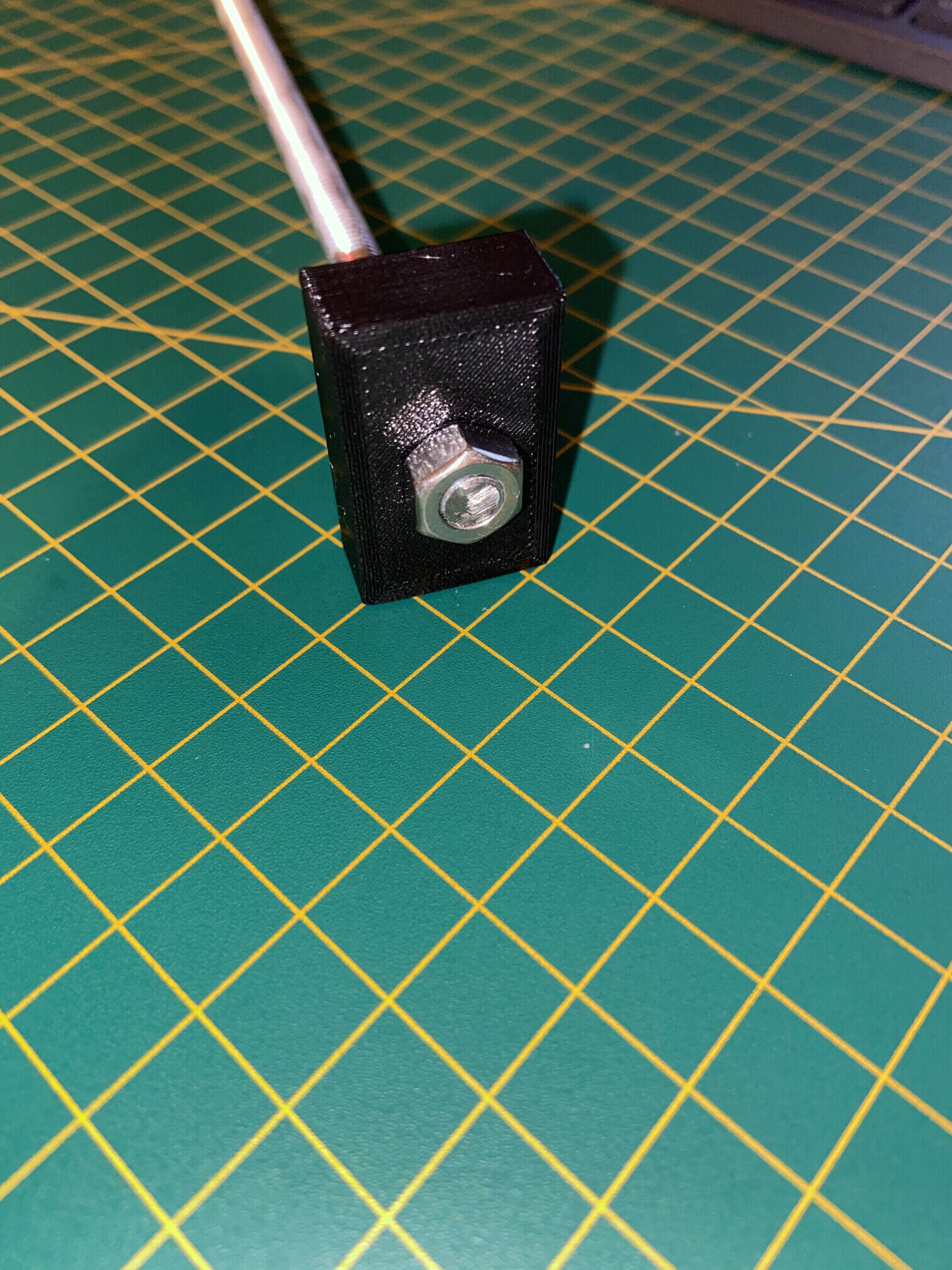

When assembling, be sure to orientate the nut on the end as shown in the picture so that it slots into the slot on the right hand side of the x-end-idler plastic part. To remove the x-end-motor / x-end-idler from the rods, simply align the tool as shown and gently turn the nut nearest the x-end-motor to ease the parts from the rods.
Design and description by Martin , licensed CC0.
Frequently asked
How long does shipping take?
Prusa MK3(S) x-axis removal tool is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
