Prusa MK3S IR Sensor Spacer Set
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~1 g
- Express shipping
- $20
More information

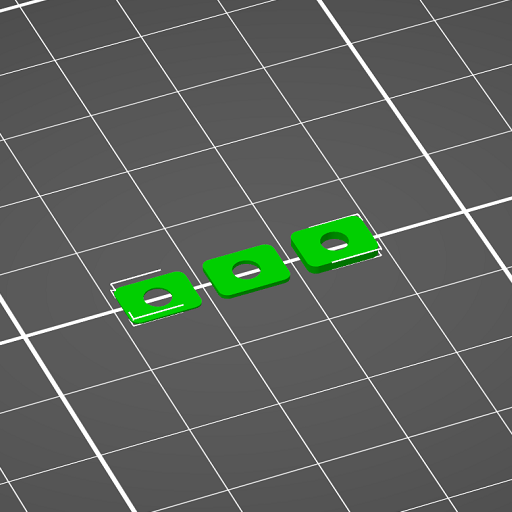

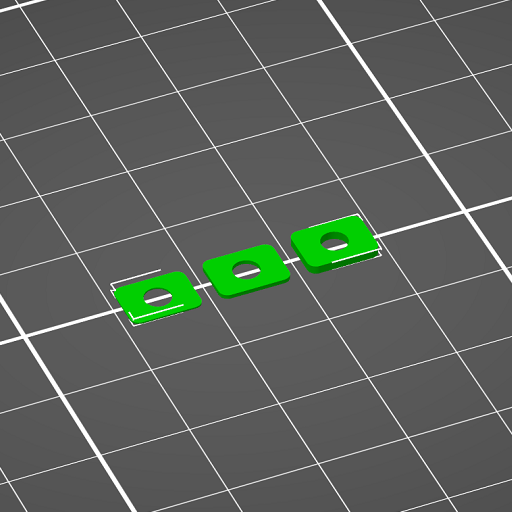

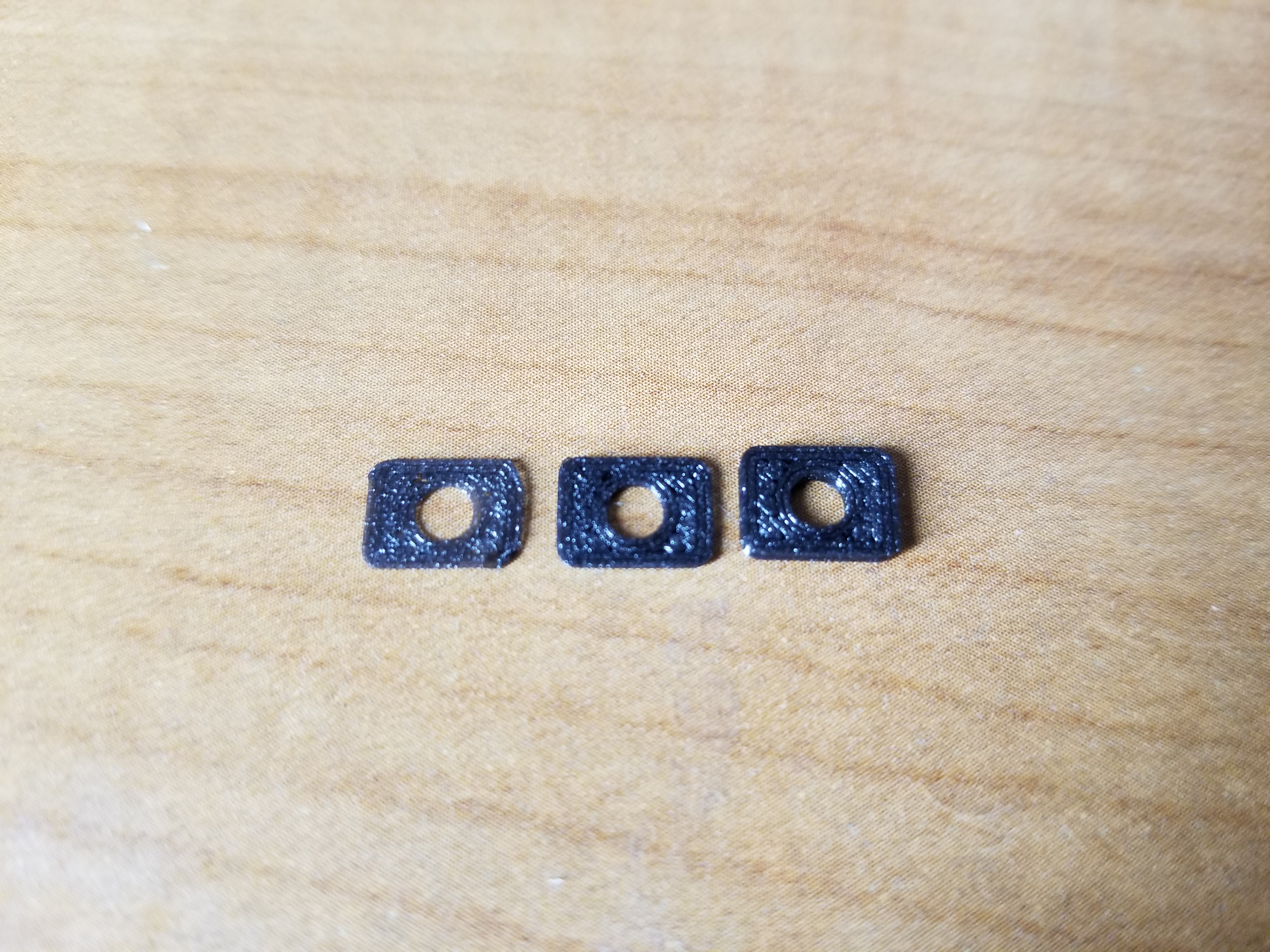

These spacers can be used to correct the IR filament sensor. Just stack them below until reliable readings are achieved. I am also including the f3d file in case anyone wants to print a single, final spacer to suit their exact measurement needs, or simply to reduce wasted filament. The 1mm worked perfectly for me on both kits.
Included:
.2mm
.5mm
1mm
Range Steps: .2mm, .5mm, .7mm, 1mm, 1.2mm, 1.5mm
If you exceed 1.5mm, there is probably a separate issue...please contact Prusa support.
The sensor information can be found by navigating the LCD menu:
Support > Sensor Info
"1" means that the sensor detects filament. "0" means that the sensor thinks the filament is empty. Cut a 15-25mm piece of filament, angle the tip, and use it to test by inserting/removing just far enough to move the ball, but no far enough to catch in the gears. Proper height spacing should reliably toggle the 0 and 1 reading with no misses.
If you print this and it works, please post the size(s) you used to help others.
Print instructions
PETG
.1mm Layer Height
100% Infill
Design and description by nilok , licensed CC0.
Frequently asked
How long does shipping take?
Prusa MK3S IR Sensor Spacer Set is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
