PUMP-ACTION PLINKER: (TOY LAUNCHER)

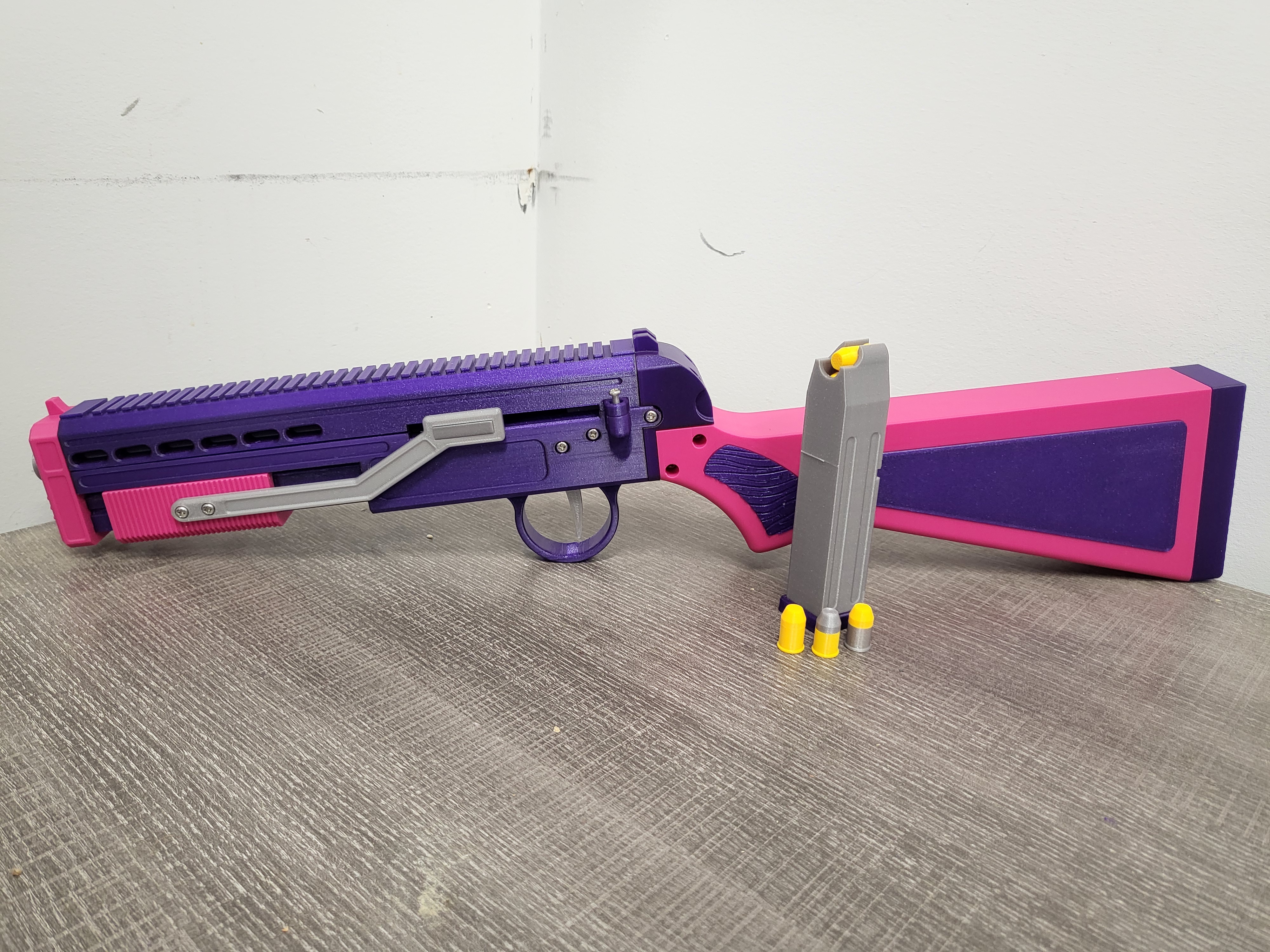

This the most functional and fun launcher I have made to date and I am very excited to share it with you all. Requires a couple of springs and a handful of M3 hardware to make functional! Currently shoots about 30 feet but I'm experimenting with different springs because it seems like it has potential for a lot more range and power. STEP files are included for your remixing needs.

VIDEO: Pump-Action Plinker (Toy Launcher) : r/3Dprinting (reddit.com)

Scale down the Bullet & Bullet Casing in your slicer by 1-2% for best results

Filament used in pictures: Prusament - Galaxy Purple, Prusament - Galaxy Silver, Spool3d - Neon Purple

UPDATE (March 12, 2024):

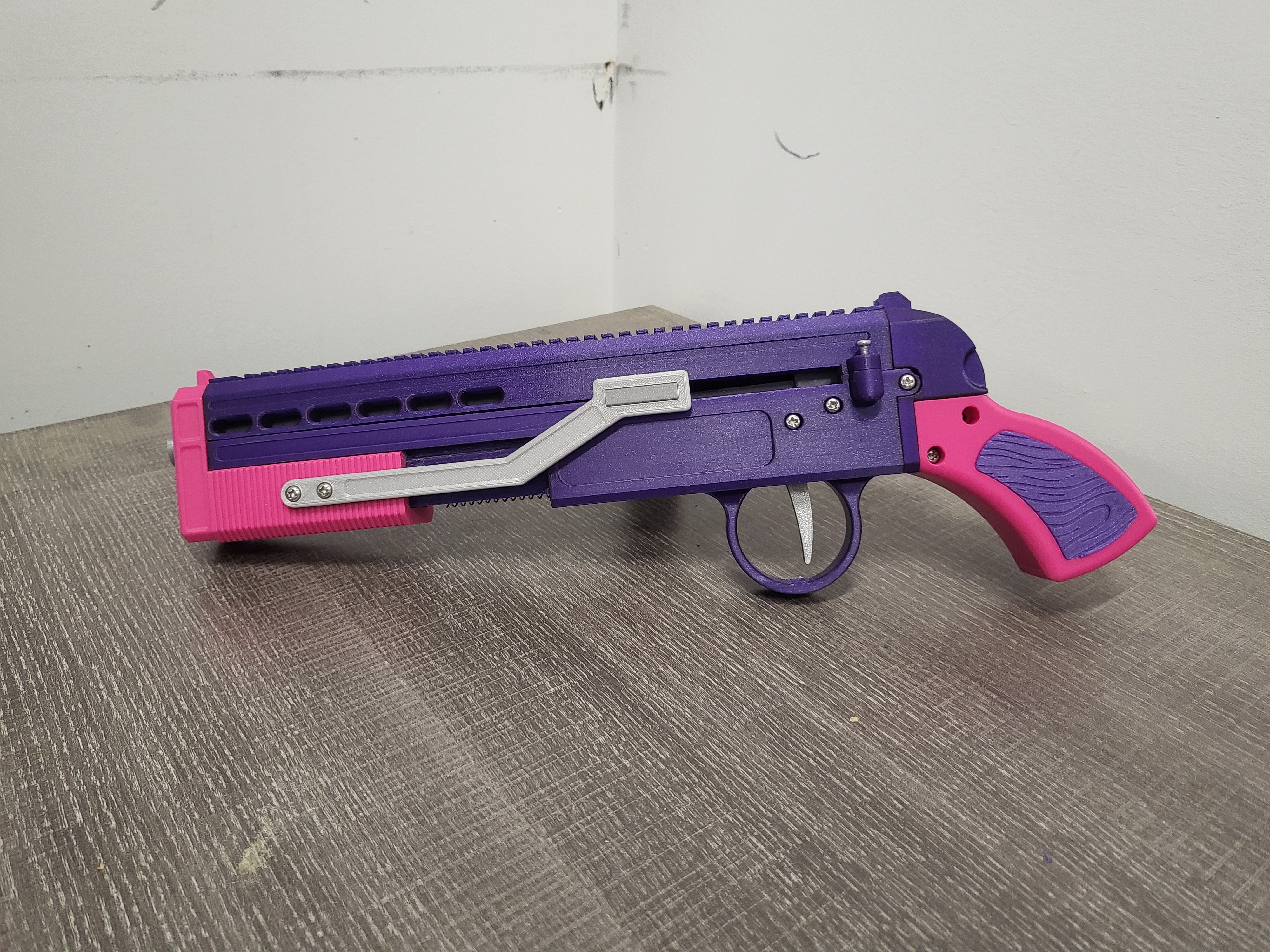

• Added Sawed-Off/Short Parts

Features

• Pump-action cycling. • Side loading magazine. • Shell “Ejection” (Gravity based). • Full length or sawed-off variants.

Printing

Shell: Minimum 3 walls/bottom/top

Infill: 15% minimum

Material: PLA or similar.

Filament Usage: Just over 500g

Hardware

Nuts & Bolts

2 x M3*6

6 x M3*10

6 x M3*12

1 x M3*18

2 x M3*20

2 x M3*25

Springs

2 x Pen Spring

1 x Compression Spring (For Striker) - OD: 10 mm, WD: 0.8 mm, Length: 50 - 60 mm

1 x Compression Spring (OPTIONAL: for pump) - OD: 10 mm, WD: 0.5 - 0.6 mm, Length: 50 - 60mm

1 x Compression Spring (For Magazine) - OD: 10 mm, WD: 0.6 mm, Length: 100 mm

Link for compression springs: 305mm Compression Spring Wire Dia 0.3 0.4 0.5 0.6 0.7 0.8 1 - 5mm Outer Dia 3 3.5 4 4.5 5 5.5 6 7 8 10 12 - 60mm Length 305 mm (aliexpress.com)

Operating Instructions

• Pull back the pump until the striker is securely latched. • While holding the pump back, insert the magazine and make sure the magazine latch is securely in the corresponding groove on the magazine. • Quickly push the pump all the way forward so that it is flush with the back of the front plate. • Aim, and pull the trigger to fire. • Tilt the barrel upwards to a 30-45 degree angle, and pull the pump back until the striker is latched again. This should eject the shell casing out of the port in front of the trigger guard. If the shell becomes stuck in the barrel, gently shake or tap the sides while keeping the barrel tilted upwards. • Once the casing has been ejected, push the pump forward to load the next round. • Repeat steps 4, 5 & 6 until the magazine is empty, the lift table in the magazine will prevent the pump from moving to the forward. • To remove the magazine, pull the pump to the rear position and press the magazine latch. Pull out the magazine.

Design and description by Brew Boy , licensed CC-BY.
