Qidi Box Filament Retraction Fix (Gear Pressure Spacer) Q2 Q2C Plus 4 Max 4
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information
If your filament is not retracting properly (the spool doesn’t rotate) and instead unwinds inside the Qidi Box instead of going back onto the spool — this model fixes that problem.

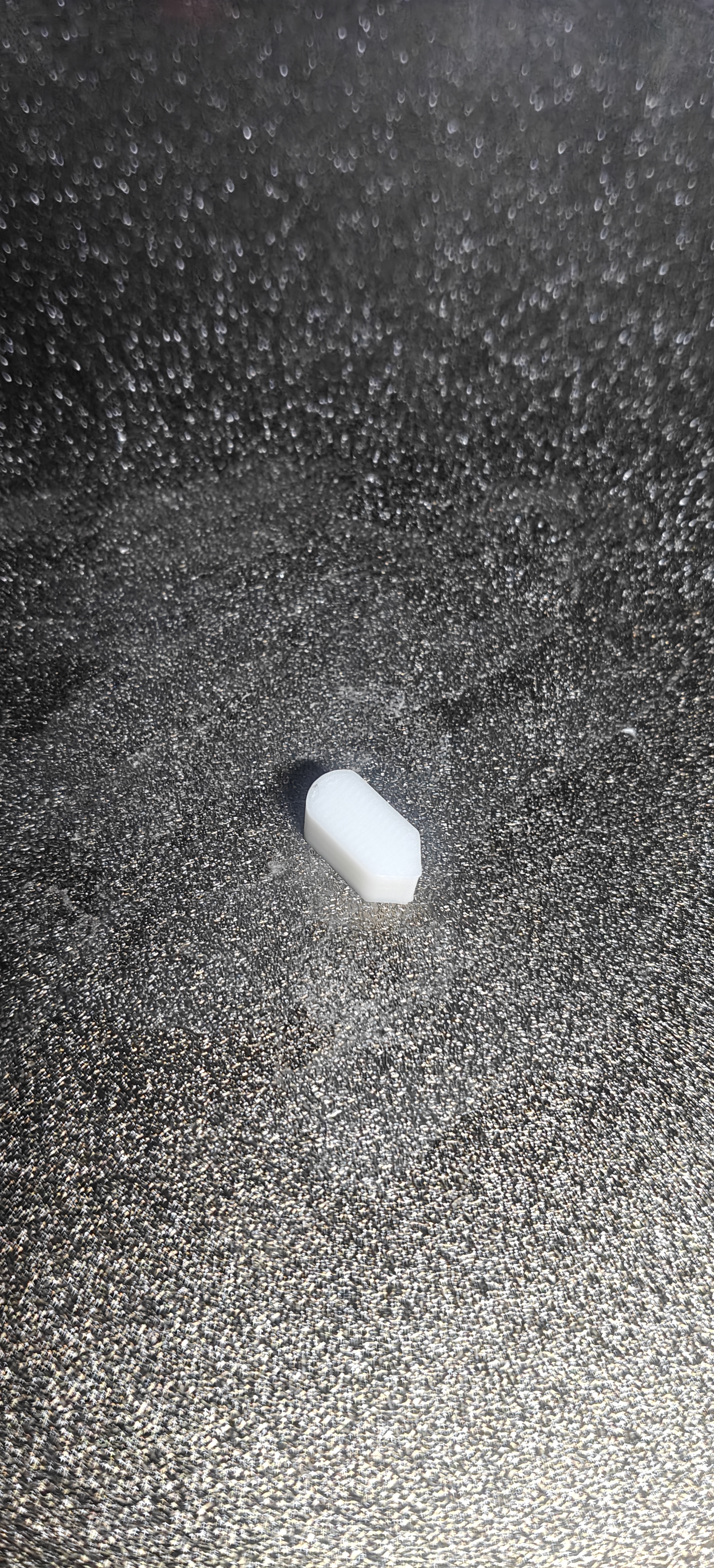

This spacer reduces excessive pressure between the extruder gears by slightly spacing the motor from the front assembly. By loosening the mechanism, the clutch can work properly again, allowing the filament to move more freely. This improves retraction and prevents slipping or grinding.
🔧 Installation:

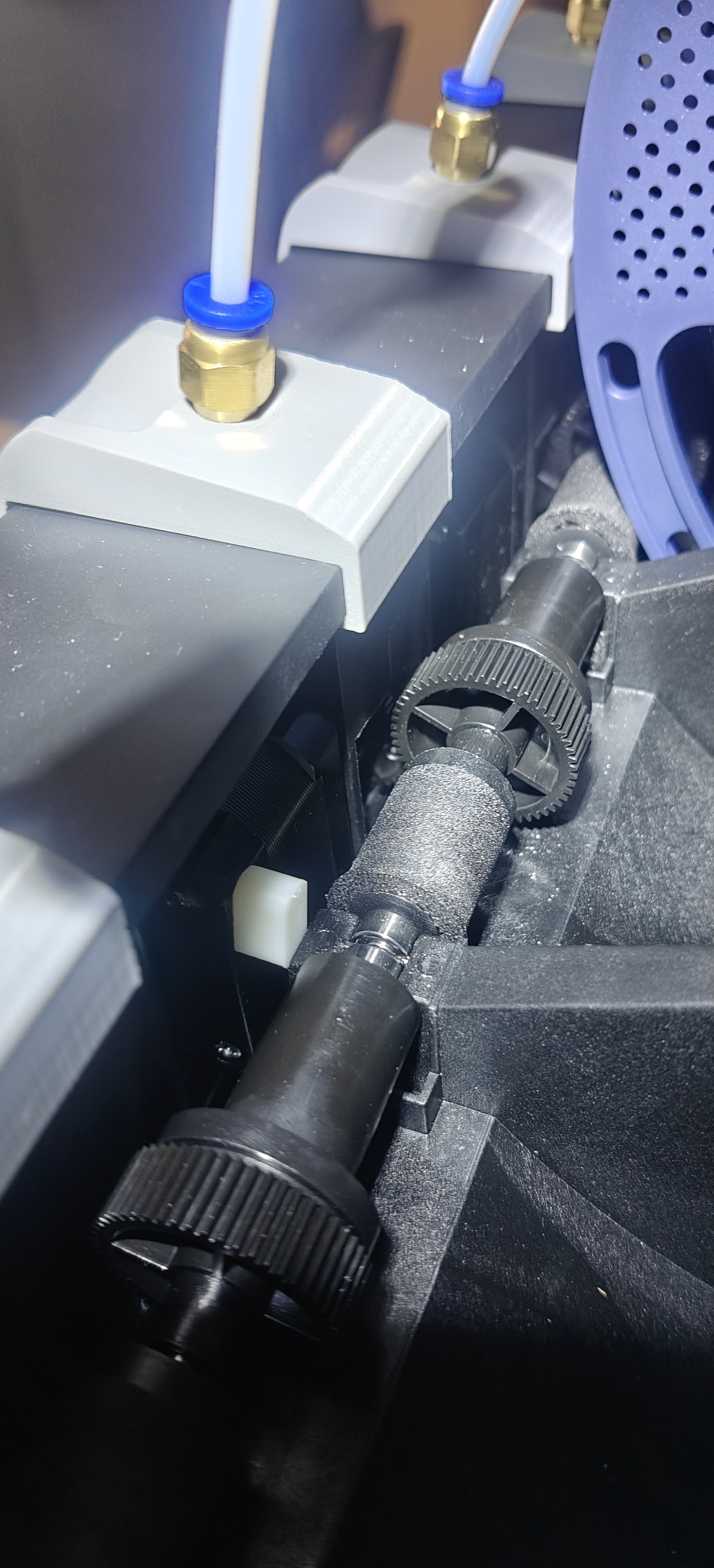

Place the spacer between the extruder motor and the front assembly.
📏 Sizing:
The default thickness is 7mm, which worked best for me. You can easily scale the model to fine-tune the pressure depending on your setup. You can also slightly lengthen the model for easier assembly, depending on your printer's tolerances.
🧱 Recommended materials:
ABS or ASA (for better heat resistance and durability)
Let me know if it works for you 👍
Design and description by Lemonidas , licensed CC-BY.
Frequently asked
How long does shipping take?
Qidi Box Filament Retraction Fix (Gear Pressure Spacer) Q2 Q2C Plus 4 Max 4 is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
