Rocker Pad for Quick Clamp

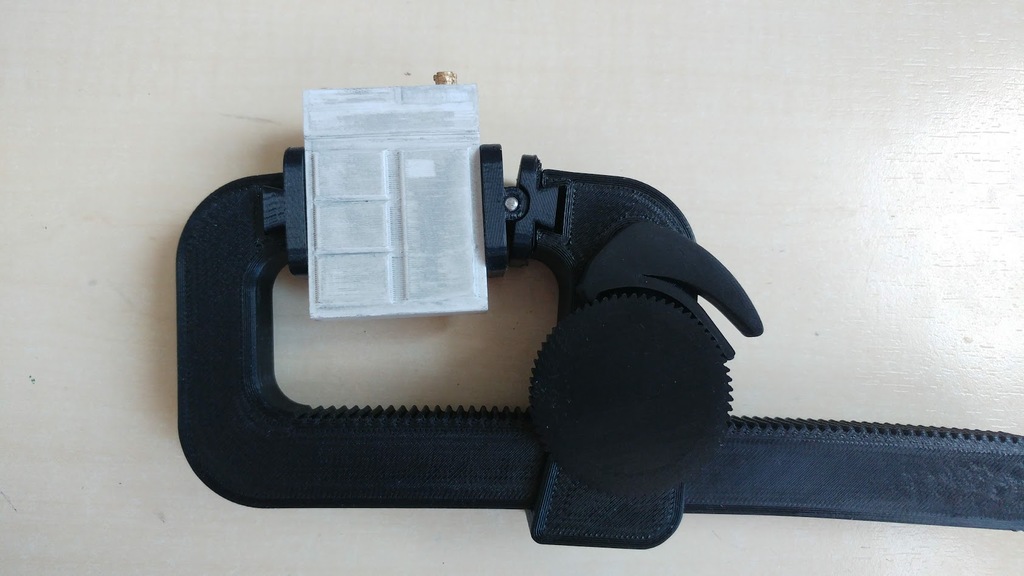

This is a two-piece hinged pad for LoboCNC's Quick Clamp, with 10° inclination range on both sides. It allows gripping of non-rectangular objects, and also compensates for slight deformations of the clamp, that causes the jaws not to be perfectly parallel to each other.

There are two versions:

• One for a 2 mm peg

• One for a 3 mm peg

Print Settings

Printer Brand:

Prusa

Printer: i3 MK3

Supports:

Yes

Resolution: 0.15

Infill:

50%

Notes: Supports required just for the bottom part. Post-Printing

Connecting the Two Pieces

Use a drill bit (2 mm or 3 mm, depending on the printed version) to clear the holes of the hinges, where the peg goes. Cut a 2 mm or 3 mm diameter nail to make a 25 mm long peg, and push it carefully through the hinges to connect the two parts.

Category: Parts

Design and description by jonnieZG , licensed CC-BY-SA.
