Shower Cabin Sliding Door "Roller" Wheel
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~19 g
- Print time
- ~1 h
- Express shipping
- $20
More information

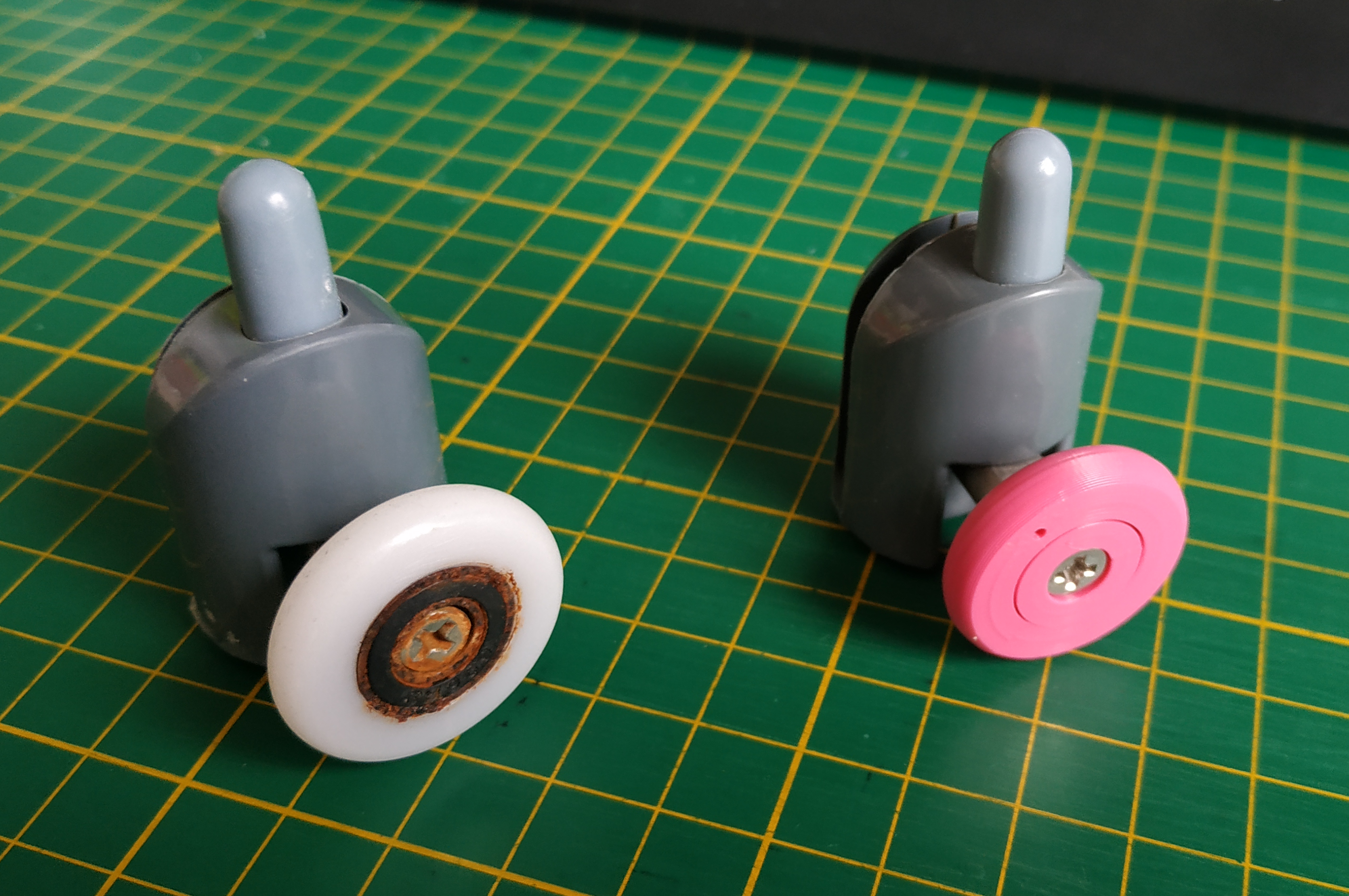

I have had issues with the original rollers of my shower cabin doors as they were running/sliding on plastic wheels with roller bearing hubs. Unfortunately those roller bearings are not stainless steel so they rust and seize up quite quickly. I got tired of buying replacement wheel assemblies and replacing them every year or so.

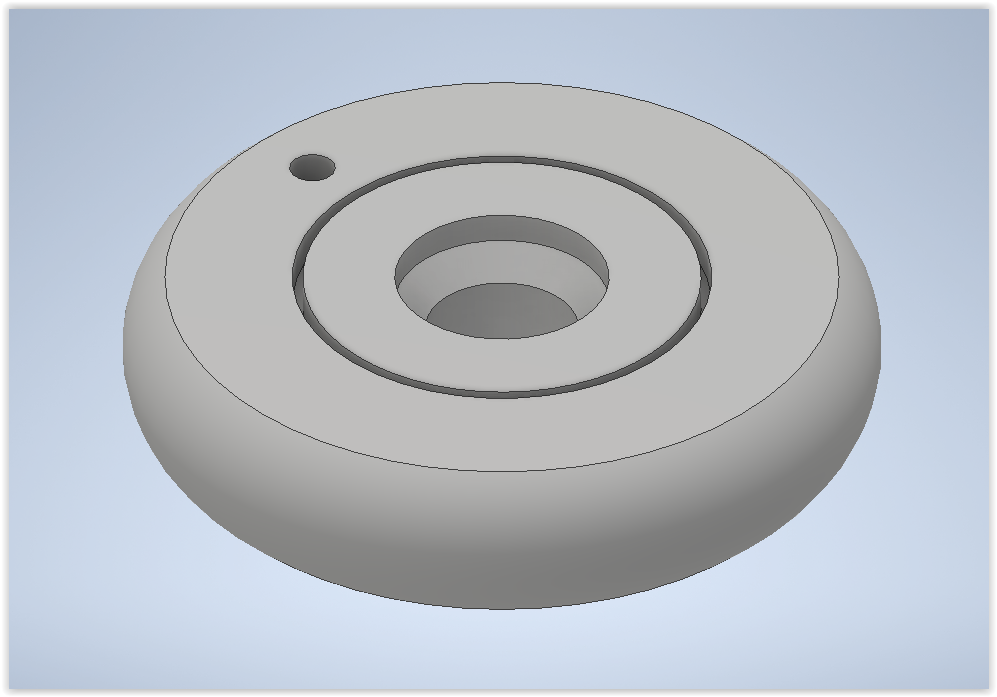

This wheel is a print is place replacement to solve this issue. When these wear out it is easy to replace them. A single screw holds them in place. No need to take off the whole wheel assembly from the glass door.

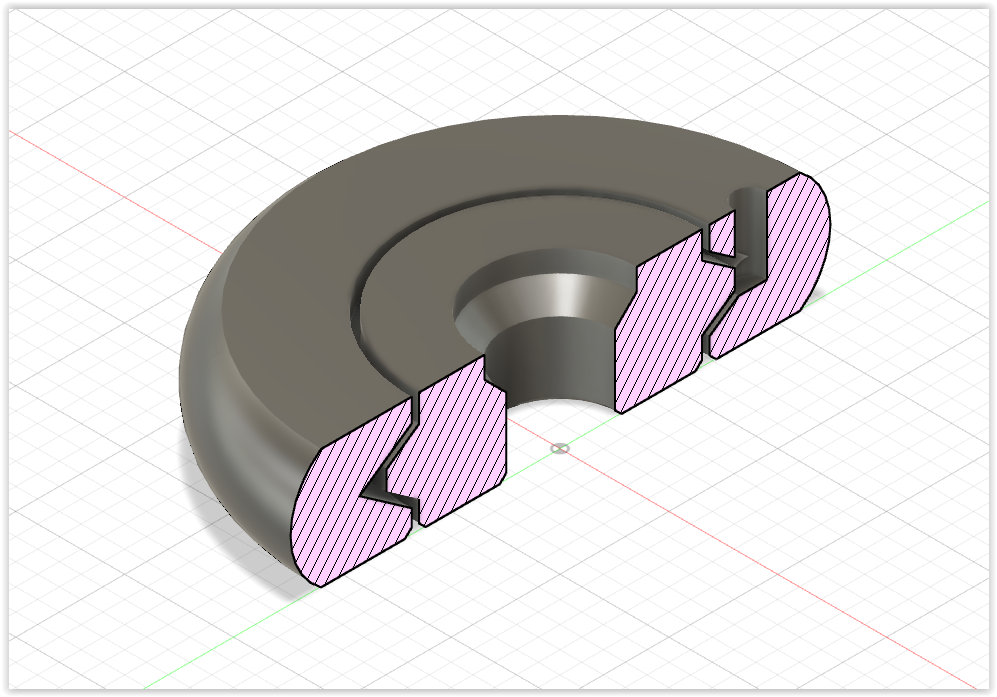

The model has a small hole that should be used to inject some grease between the two sliding parts of the wheel. With grease they will last in excess of 2 years.
I have included a .f3d file as well in case anyone needs to adjust the diameter of the wheel.
Slicer setting I have used: 0.2mm layer height 80% infill (minimum) - 100% recommended
If you like the design please show it by clicking the like ♥ button. Thank you!
Happy 3D printing!
Design and description by nushipwright , licensed CC-BY.
Frequently asked
How long does shipping take?
Shower Cabin Sliding Door "Roller" Wheel is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
