Sink Caddy with Self Drain and Adjustable Divider

A flexible Sink Caddy for your indoor or outdoor sink.

Dimensions (with lower cup): L:180mm; W:92mm; H:135mm

Features

• Store your soap; sponges and brushes in a flexible configuration.

• Divider allows for 1/2 split or 1/3-2/3 split. More if you print a second divider.

• Lower drain cup will catch moistness and hold it to allow the items in the caddy to dry out.

• Spout on lower drain cup allows for easy emptying by simply pouring the excess liquid into the sink periodically. You don't even need to remove the cup.

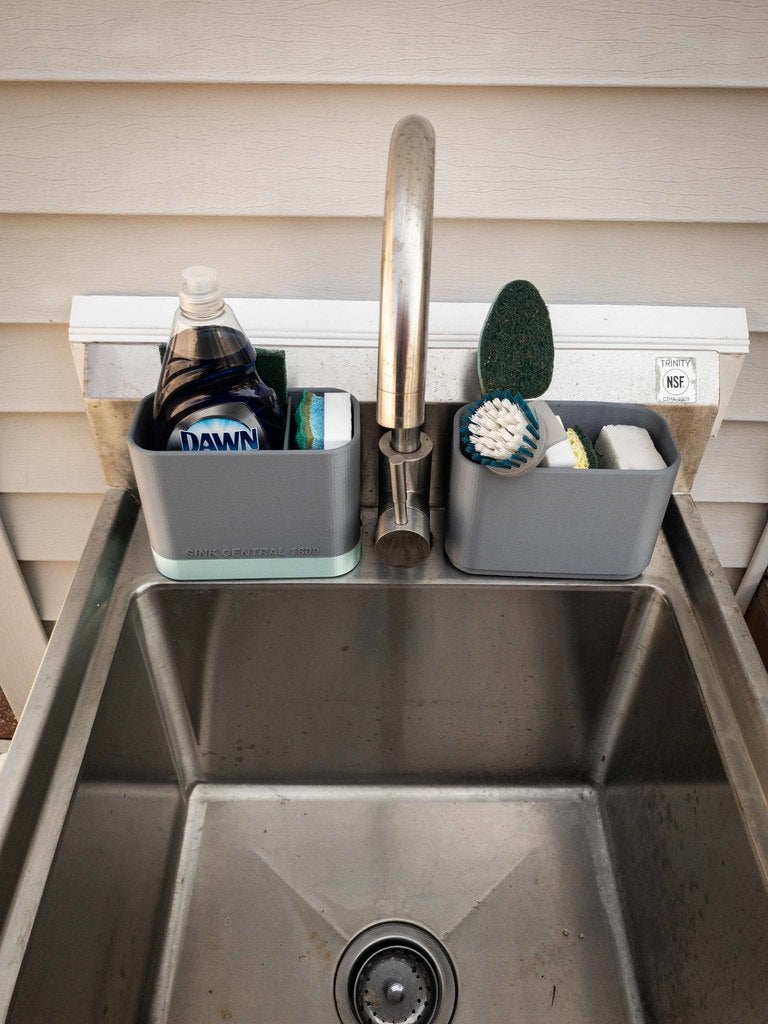

• Lower cup can be removed for applications like an outdoor sink where drainage directly below (into the sink cavity typically) is preferred.

• One divider slot will allow storage of a typical 709ml (24oz) bottle of detergent so if stored in an outdoor sink it will prevent a near empty bottle from blowing around in the weather.

• Sponges will stay put in an outdoor sink. Animation

• https://youtu.be/ooF6w7Rm1vY

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

Yes

Supports: Yes

Resolution:

200

Infill: 15

Filament:

Hatchbox PETG

Notes

For outdoor environments I recommend printing in PETG or other filament that can stand up to hot weather without warping.

On the main body consider printing supports near overhang. A test print slicing a small section is a good idea if your not sure if your printer will handle the overhang ok.

The lower cup is not needed for an outdoor sink. Just let the water run into the sink which ideal if it rains.

Category: Kitchen & Dining

Design and description by jimerb , licensed CC-BY.
