Skr mini e3 mount for din rail mounting
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~21 g
- Print time
- ~1.2 h
- Express shipping
- $20
More information

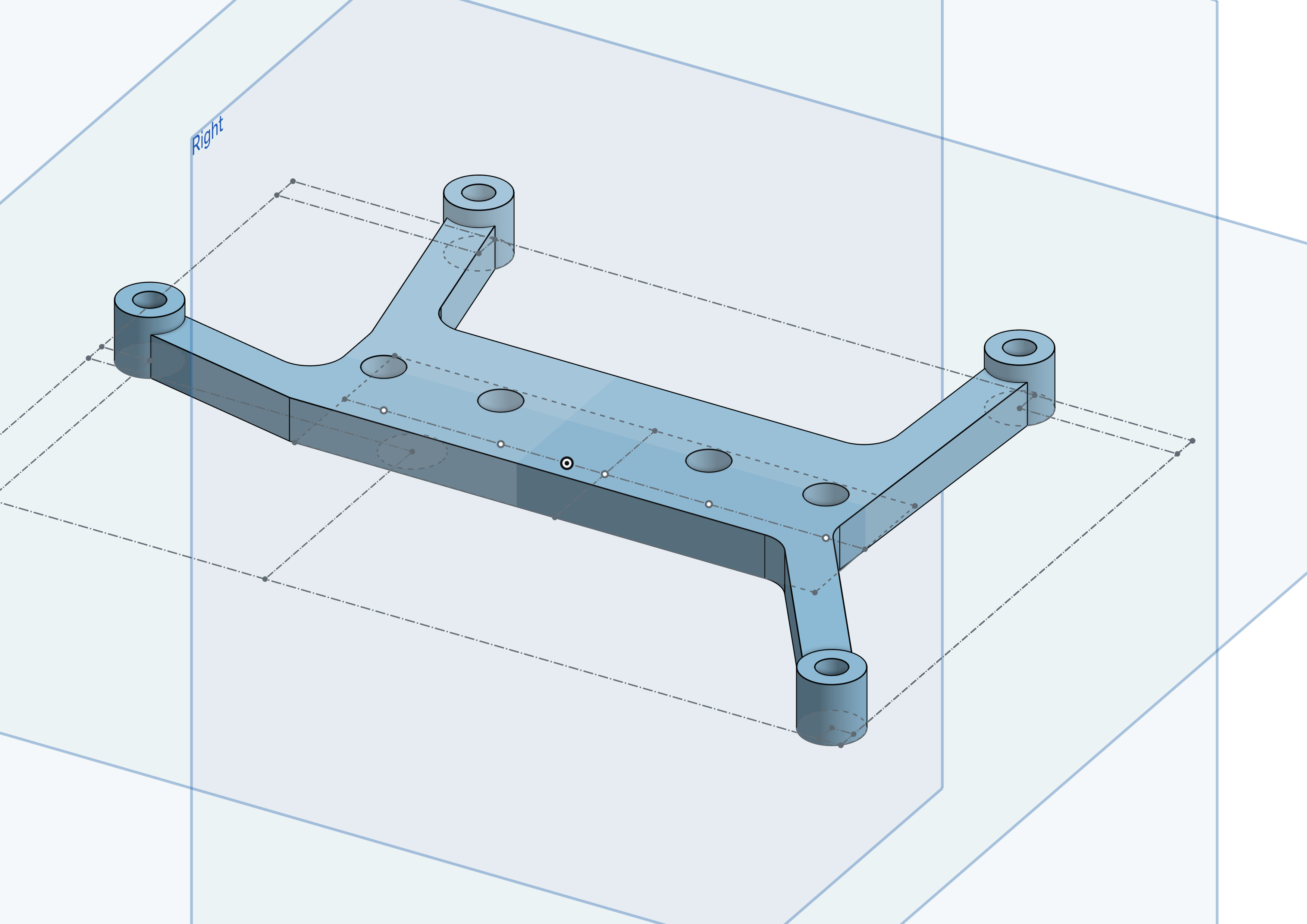

I designed a custom mount for my SKR Mini E3 boards to fit onto my Voron V0.1 using a DIN rail, as I couldn't find suitable models available elsewhere.
My main issue with other models was that the PCBs protruded too far out of the enclosure.
To address this, I made sure the hole placements were compatible with Voron heat inserts, with spacing set at 51mm and 24mm intervals.
The 51mm spacing aligns perfectly with this model: https://www.printables.com/model/472505-din-rail-bracket-redux
As for the 24mm spacing, I originally found a suitable clip elsewhere, but regrettably, I've misplaced the source link.
Source: https://cad.onshape.com/documents/05a0d67800ee1162cec9b9d8/w/e5c694182e9f58ab5d4ac066/e/b144d6609bd4d4f986cd2544
Design and description by mjrider , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Skr mini e3 mount for din rail mounting is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
