Slide Door Handle and Lock
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~26 g
- Print time
- ~1.4 h
- Express shipping
- $20
More information
Handle and Lock for Sliding Door.
Components:
• Outer Handle (Base + Cover Plate + Qty 4: 6Gx25mm Tapping Screw)

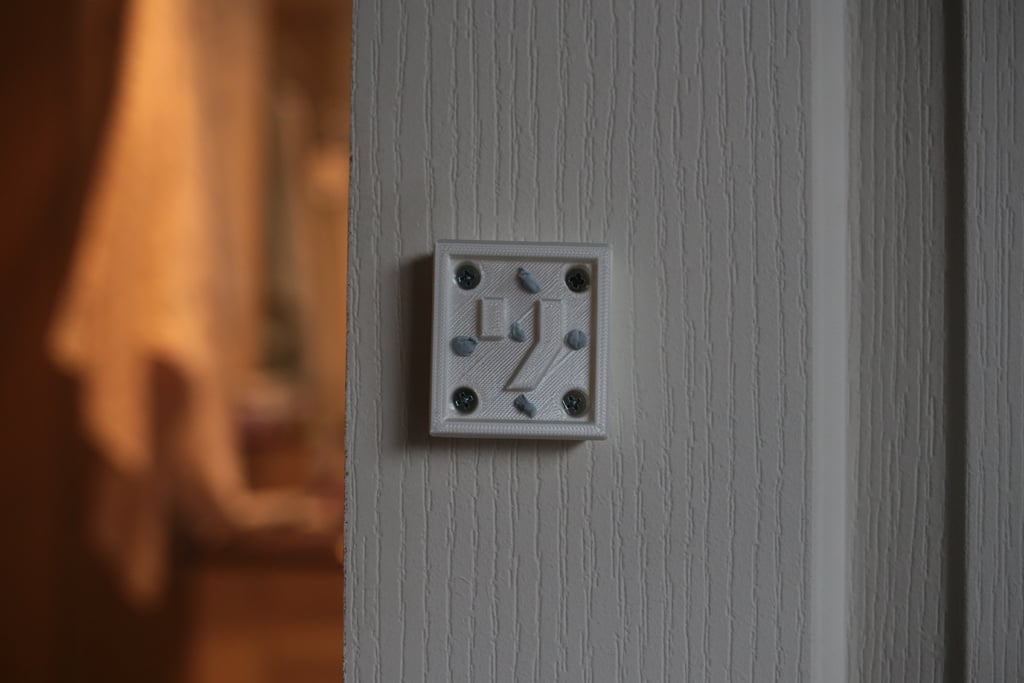

• Inner Handle (Base + 3 Cover Plates + Qty 4: 6Gx25mm Tapping Screw)
• Lock Base (Base + 3mm x 14mm Gauge Pins + Qty 3: M3 x Hex Nut)
• Lock Base Cover (Base + Neodymium Magnet 5x1.5-2.0mm + Qty 4: M4x16mm Cap Head Screw)

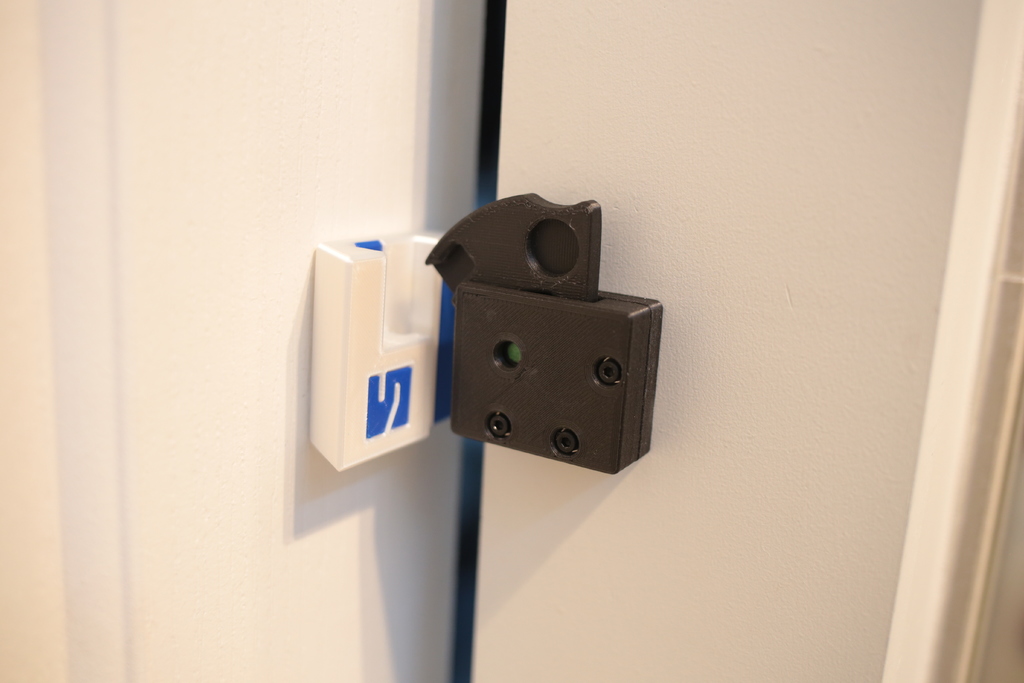

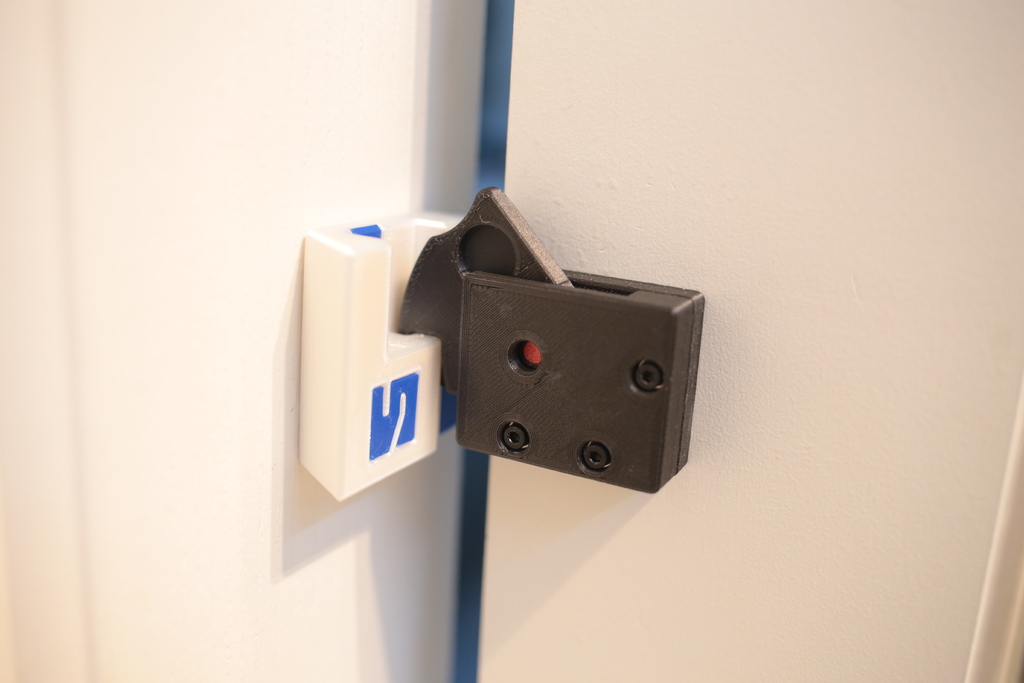

• Latch (Base + Lock and Open Indicators + Neodymium Magnet 5x1.5-2mm)
Print Notes: The lock base cover and latch contain magnets which require a pause operation. 4xPerimeter walls, 30% Infill.
Assembly Notes: Test fit everything using tape or blue tack. Adjust design as required using step files included. Lock Side: Install Nuts to Base Plate then attach to wall with tapping screws, add gauge pins, assemble latch, then add cover and secure with cap head screw. Handles: Once positioned attach using tapping screws and cover with plates (secure with temporary fixing such as double sided tape or blue tack.
Category: Bathroom
Design and description by Rittai 3D Design , licensed CC-BY-SA.
More 3D printed sliding door partsMore 3D printed door handles and knobs
Frequently asked
How long does shipping take?
Slide Door Handle and Lock is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
