Small Pulley 0.20" or 5.08mm Diameter
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~55 g
- Print time
- ~3 h
- Express shipping
- $20
More information

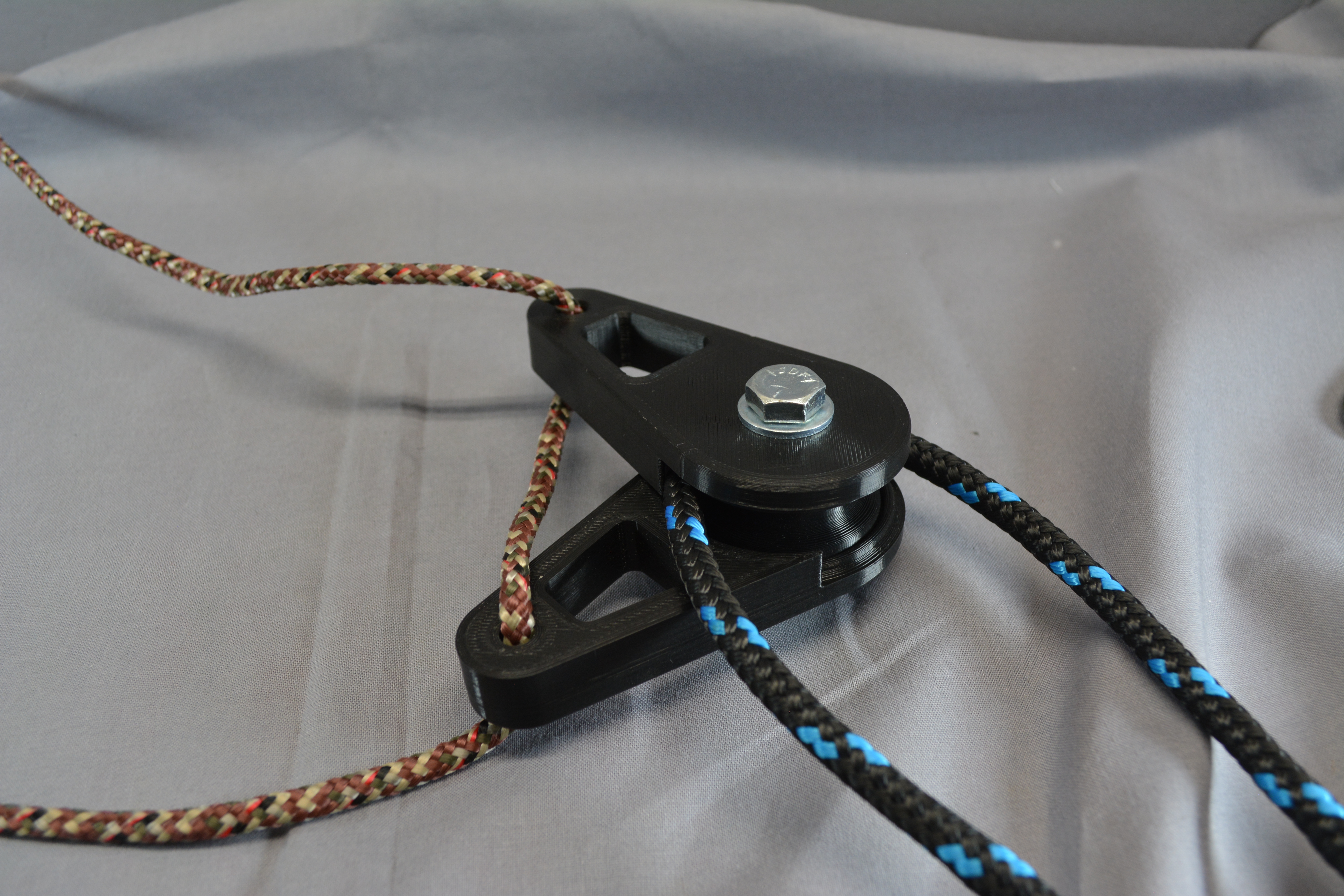

Designed with minimal printed parts (3): 2ea Pulley Housing and 1ea Pulley Roller. This unique design prevents the rope from riding up and over the pulley and binding between the interior of the pulley axle and bearing. Recommended to print flat so layer lines are long and strong.
Unequally designed for the Amateur Radio Community for hoisting antennas into a tree etc. with minimal use of electrically conductive metals that, can reflect and absorb the radio waves and consequently interferes with their transmission.
No Tools / fastener (Bolt/Nut) disassembly is not required to load or remove rope. simply rotate the two halves to the 3 and 9 o'clock positions.
No Supports Needed
Print PLA, PETG, ASA, ABS other stronger technical material.

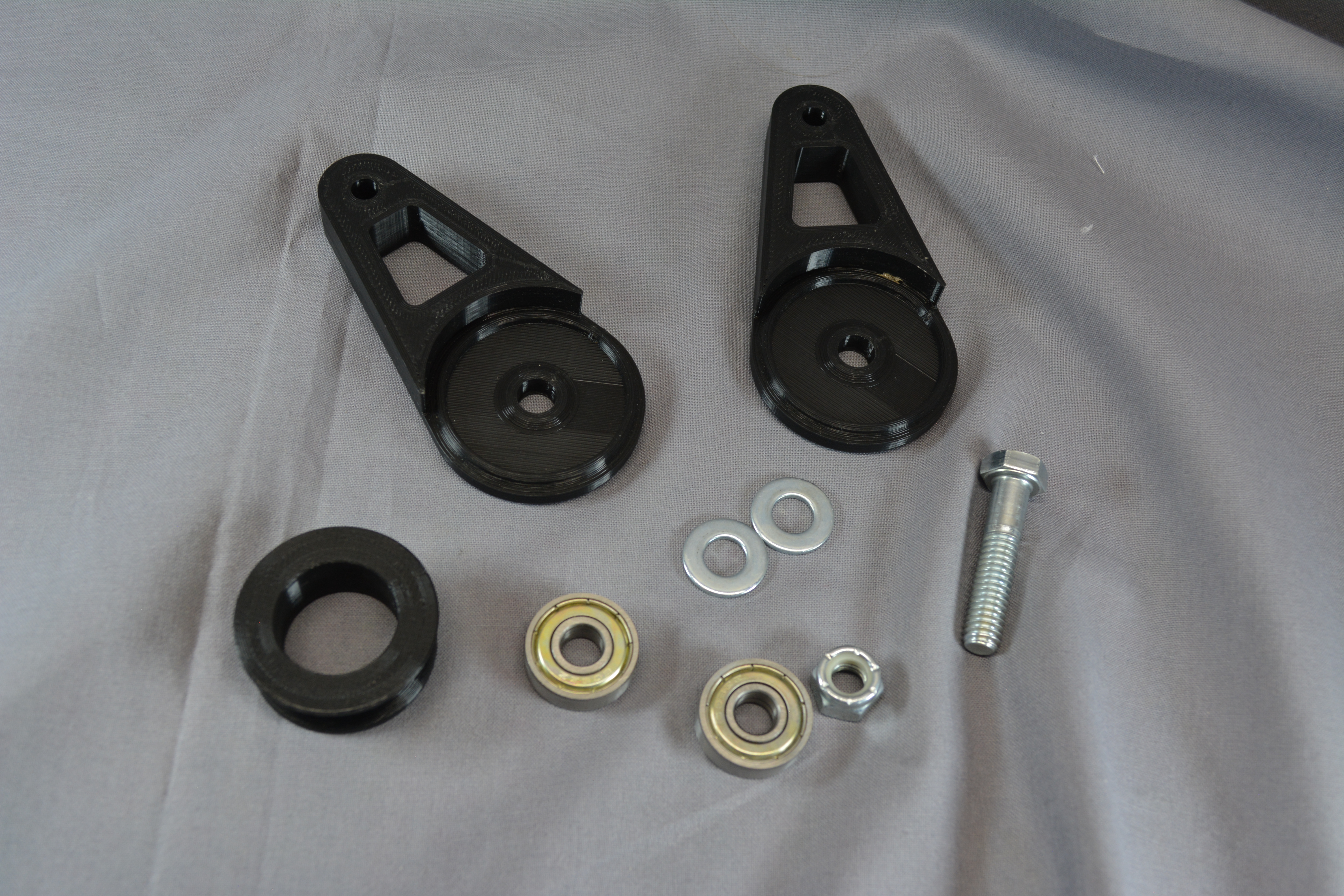

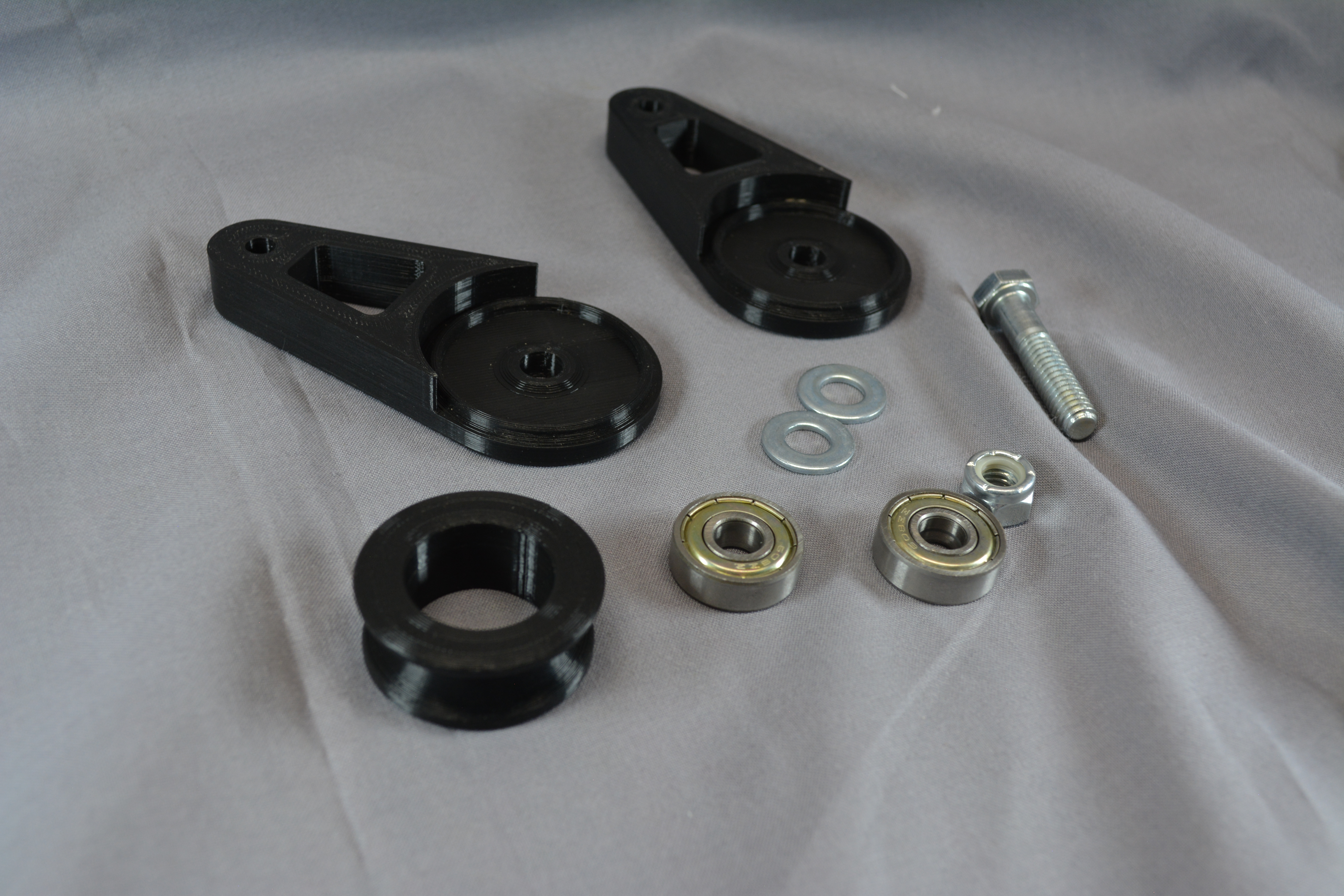

Requires:
2ea 8x22x7 Bearing Steel Mini Groove Ball Bearings
1ea 2.75mm x 25mm L bolt
1ea 2.75mm nut
2ea washers
0.4mm or 0.6 mm nozzle, 2 or 3 walls per your preference, 14% to 20% your favorite infill.
73
V/r, Jason
KBØEOD
Design and description by C4 Designs , licensed CC0.
