Spice shelf / Kitchen cabinet organizer

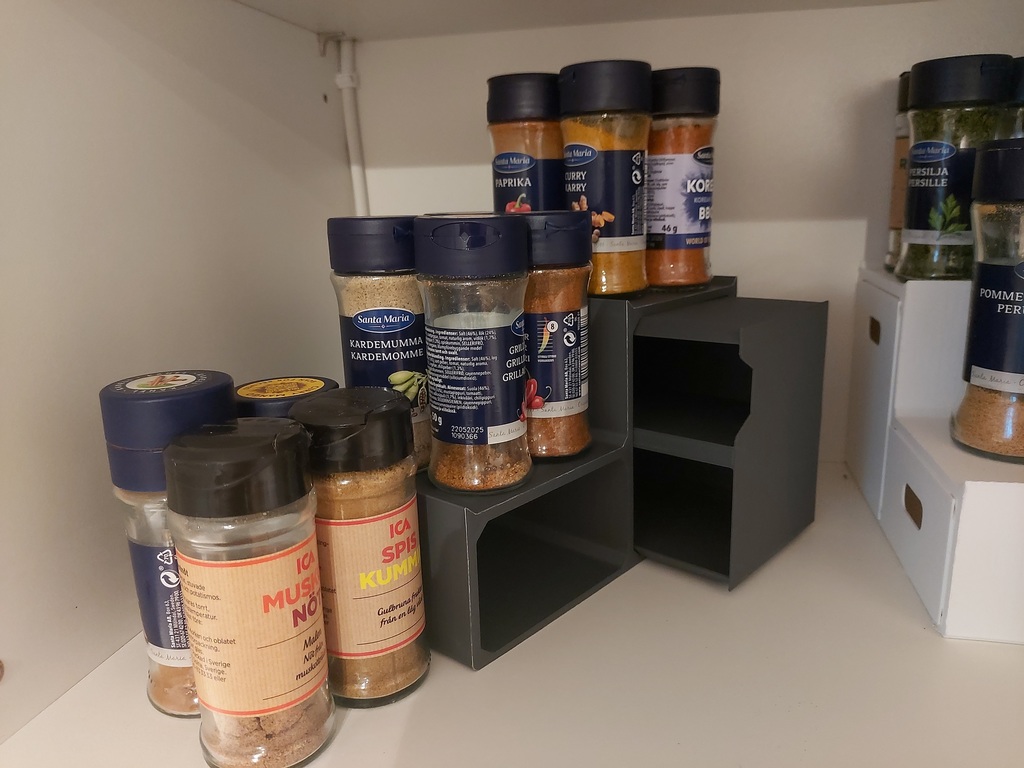

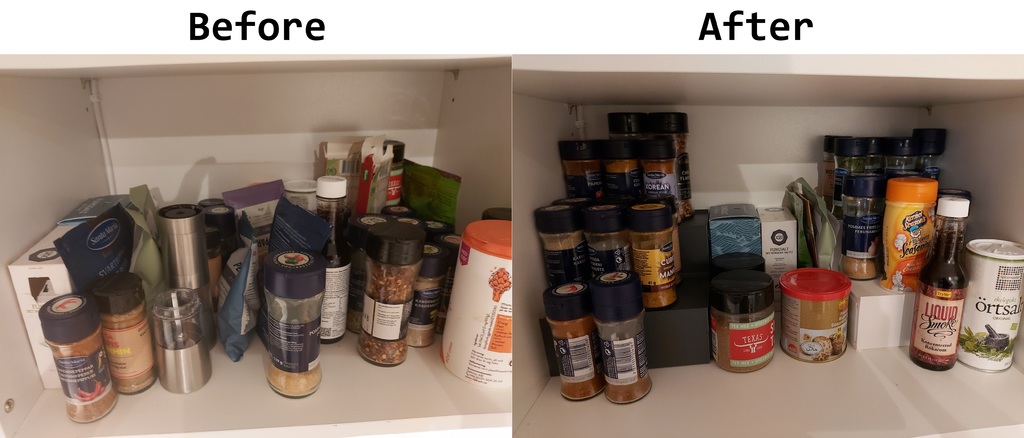

This thing is designed to make the spices (or whatever you need organized) in the back of the cabinet more accessible, by raising them up they're easier to see. You can make it as wide as you want. If you're not covering the entire width of a cabinet with this so the edge is exposed, you can use the inside for additional storage. Print a cover or a drawer to cover up the sides.

The files

spice_organizer_base - The main model. 20 cm deep and 12 cm high (excluding the edge at the top). The width can be adjusted to whatever you want, tall printers can produce wider parts.

spice_organizer_side_edge - Same as above but with an edge on the side to prevent things falling off. It is 10 cm wide, by modifying the width you will be distorting the edge. You can flip it in the slicer to get the edge on the other side.

drawer_small_10cm - 10 cm long drawer for the small hole in the model. Should not be made much smaller since it's already pretty thin. (There are no pictures of the small drawer)

drawer_small_16cm - Same as above but 16 cm long.

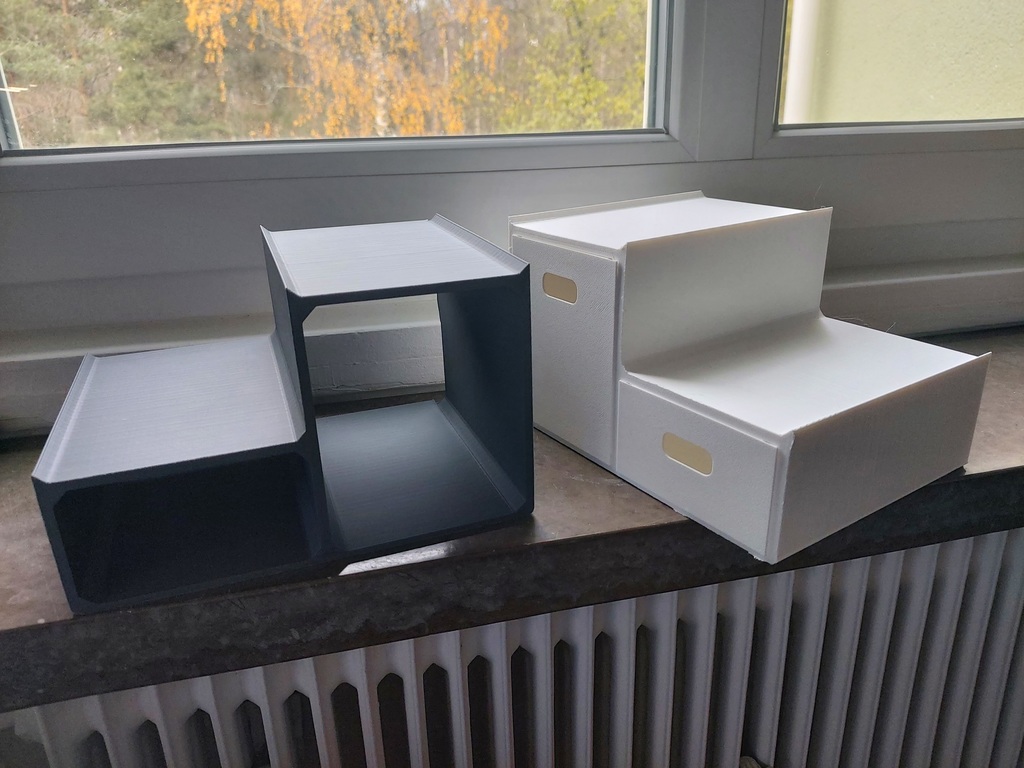

drawer_large_10cm - 10 cm long drawer for the large hole in the model. Accessible from the side and has a shelf in the middle. Should not be made much smaller since it's already pretty thin.

drawer_large_16cm - Same as above but 16 cm long.

cover_small - Used to cover up the small hole in the model.

cover_large - Same as above but for the large hole

Print Settings

Printer Brand:

Creality

Printer:

Ender-3 S1 Pro

Rafts:

Doesn't Matter

Supports:

No

Resolution:

0.24

Infill:

40

Notes

All parts can be printed without supports, you may have to reorient some of them in the slicer.

Post-Printing

The side covers may fit differently after printing with other settings than me, you may have to sand the edges down to get a good fit.

Design and description by Max Hedebratt , licensed CC-BY-SA.
