Spinning Magnetic Levitation Desk Toy
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~27 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information
Instructions:

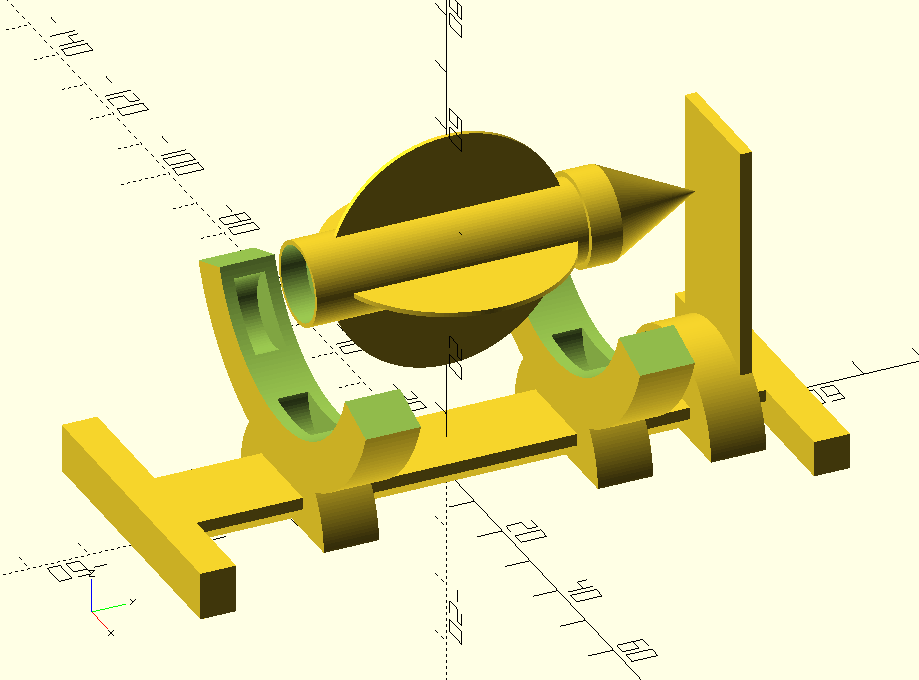

Uses eight (8) cheap 12mm (D) x 5mm (H) ceramic magnets. OpenSCAD source is included, so you can adjust to whatever magnets you have.
• Print 1x base, 2x support, 1x endplate, 1x spinner, 1x cap. You may need a brim on the spinner and cap depending on how good your bed adhesion is. • Insert magnets into the supports, making sure the polarity is the same. • Slide the endplate and the two supports onto the base, making sure the polarity of the two bases are the same. The supports should be about as far apart as the ends of the spinner, but slightly closer together. The supports are very stiff to slide on, so they won't slide afterwards. • Insert the magnets into the spinner, making sure the polarity is the same. • Hold the spinner over the supports - if it repels both ends, add a cap to the side with the endplate. If it attracts both ends, turn it around then add the cap. If it repels only one end, switch the polarity of one magnet and try again. • Hold the spinner over the supports with the cap touching the endplate and let go. You may need to adjust the endplate and/or supports. • If unstable, you can print a second endplate and cap, and move the endplates together until they almost touch the points of the caps, then place the spinner.

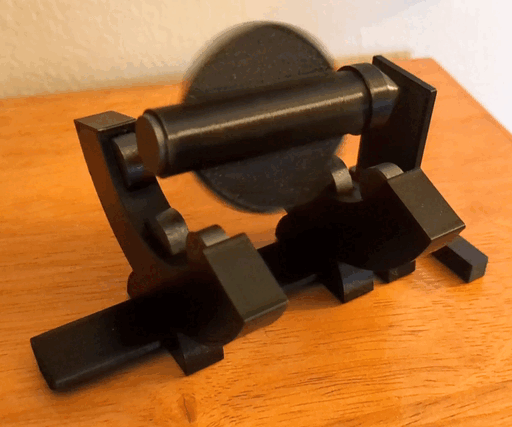

You can flick or blow on the flaps on the spinner to make it spin.
Design and description by mrquackers , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Spinning Magnetic Levitation Desk Toy is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
