Spreader Clamp - Filament Spool Clamp, print-in-place
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~25 g
- Print time
- ~1.4 h
- Express shipping
- $20
More information

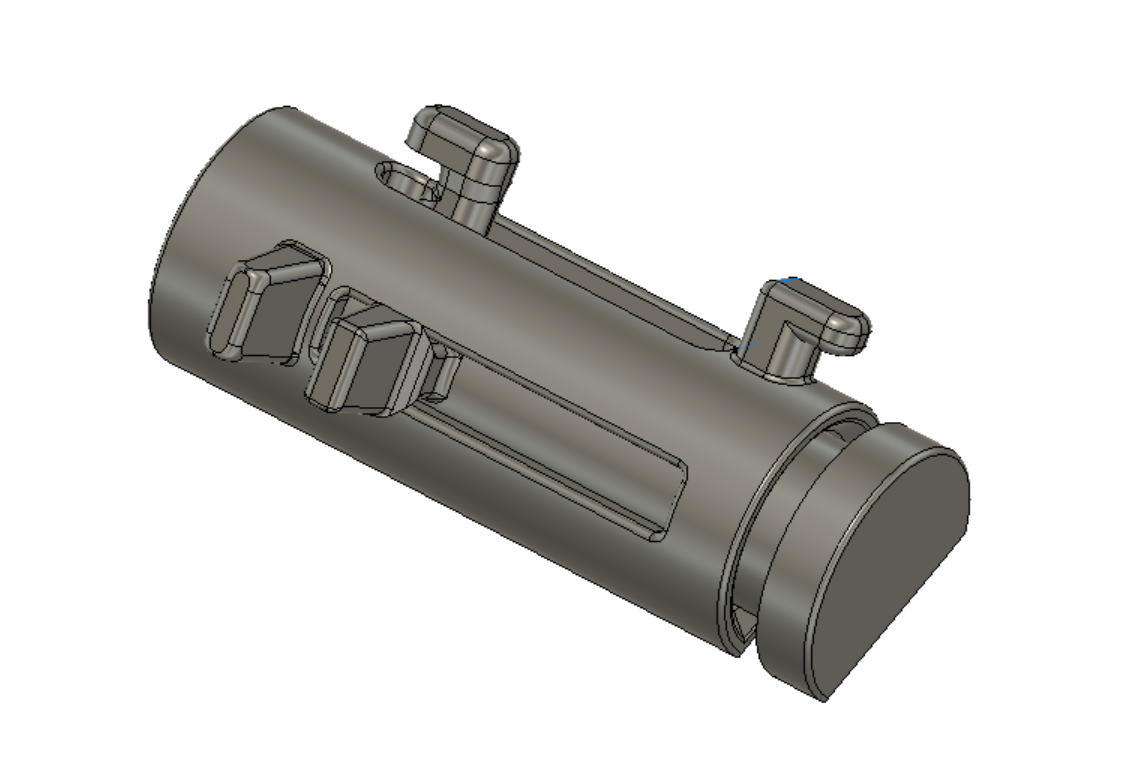

For clamping your filament spool to prevent the loose end from crossing or tangling. I like the design concept by ishikawa, but decided to take the design in a different direction. Still a print-in-place design. There are 2 versions: using a rubber band or springs for the clamping force. These are the proper length for Prusament or similar sized spools.

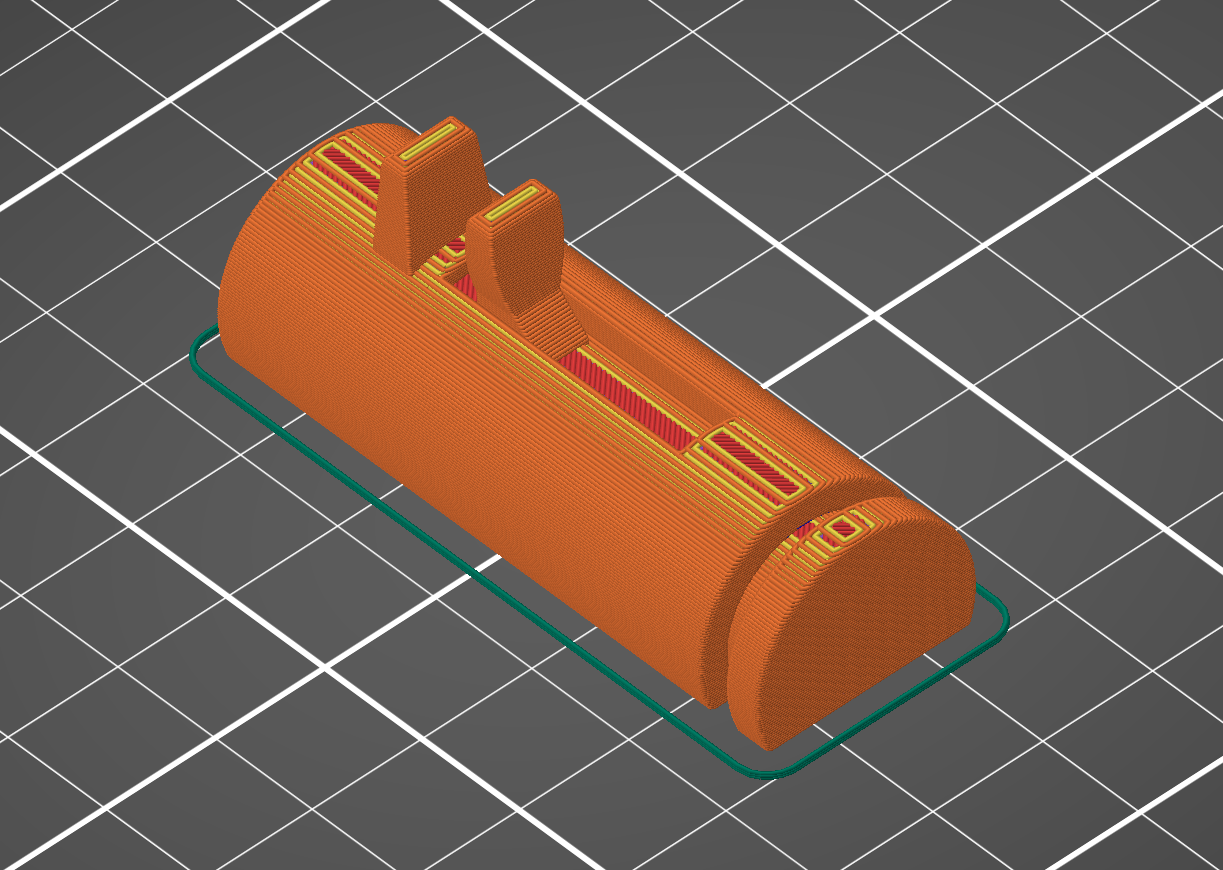

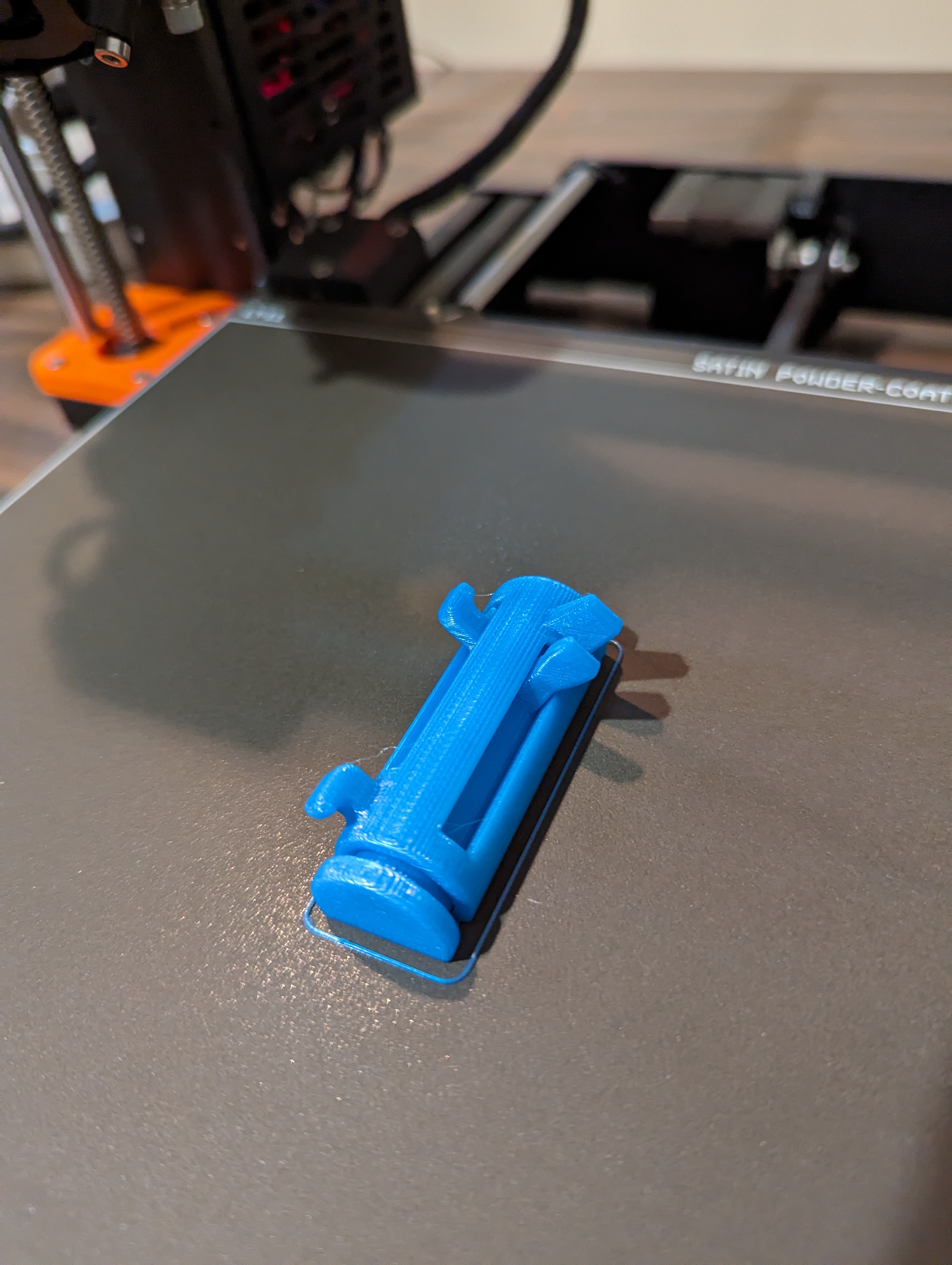

Prints best in PLA with 0.2 mm quality profile. After printing, break the inner cylinder free using a large screwdriver, then work it back & forth several times until the action smooths out. Then install either the rubber band or the springs (depending on which version you printed).
A 20 mm length rubber band can be used singly. A longer band will need to be wrapped multiple times.
The spring version uses 2 springs from ballpoint pens. I designed it for the size I had on hand, which came to 28.5 mm unsprung length & 4.3 mm diameter. Slightly longer might also work. Insert one end of a spring into one of the holes located on the end of the inner cylinder first & twist while pressing it in until it's fully seated. Then position the other end into the circular indentation on the inside back of the outer cylinder. Repeat for the second spring.
Design and description by burtronix , licensed CC-BY.
Frequently asked
How long does shipping take?
Spreader Clamp - Filament Spool Clamp, print-in-place is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
