Stackable Kitchen Fruit Bins V2

This is V2 of https://www.printables.com/model/573567-stackable-kitchen-fruit-bins ,

Model size:

11" L x 6" W x 4" H (Main part)

1.5" H (Spacer)

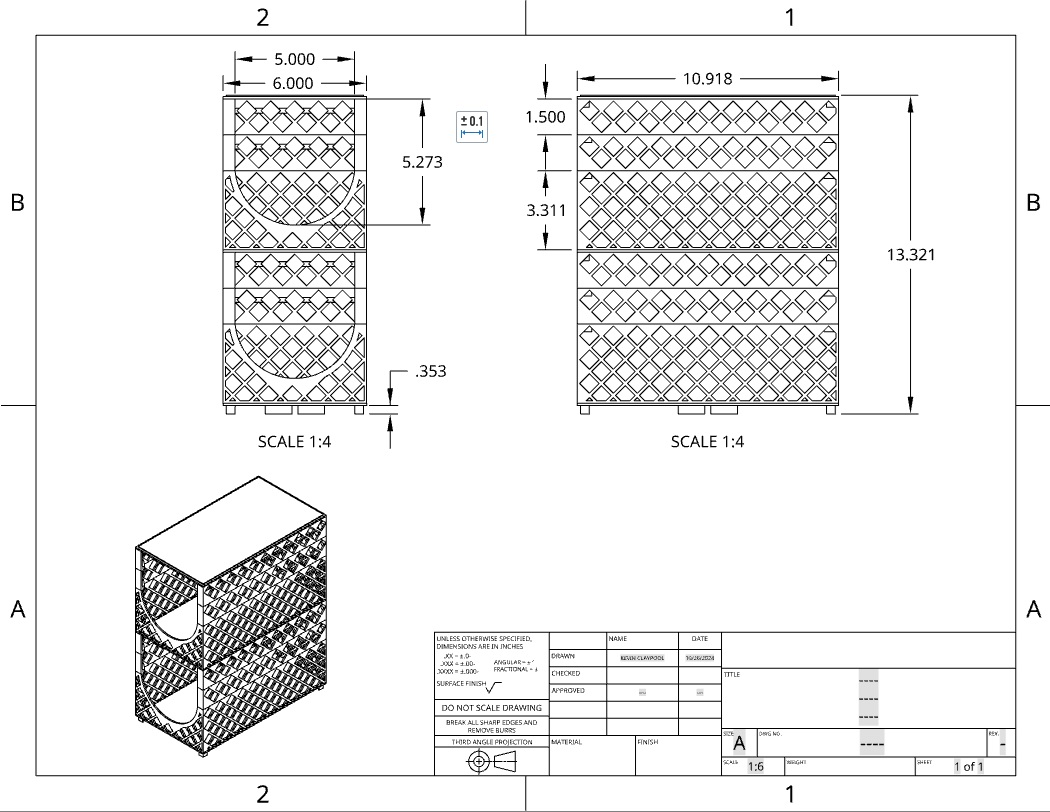

Full dimensions of the assembled bins (like the one in the photo) are provided in the drawing.

The big issue with the last one was that SO MANY SUPPORTS were needed. I turned the squares to eliminate this issue. Now the only support necessary is for the base portion that the main/spacer parts are glued to.

Additionally, any sag in the bottom base should be eliminated by a circular support I added for the center, this should keep the base and main, that must be gorilla-glued together, from breaking apart due to the weight of fruit or veggies you put in the bins.

I hope you all get better mileage out of this one. It will definitely require less plastic.

**This model requires at least a 300mm^3 build plate

**Add support to the build plate of bottom base and separation base, flip the part so feet face upward in your slicer for both bases and Spacer. No supports needed for main or spacer.

**I recommend a 0 mm spaced brim to the spacer and/or main parts

**I also recommend something with stronger layer adhesion like PETG or PLA Pro, since you'll likely crack the fencing on the wall if you bump it.

If you liked it leave a comment! Thanks!

Design and description by Kevin Claypool , licensed CC-BY.
