Storage boxes for PRUSA MINI

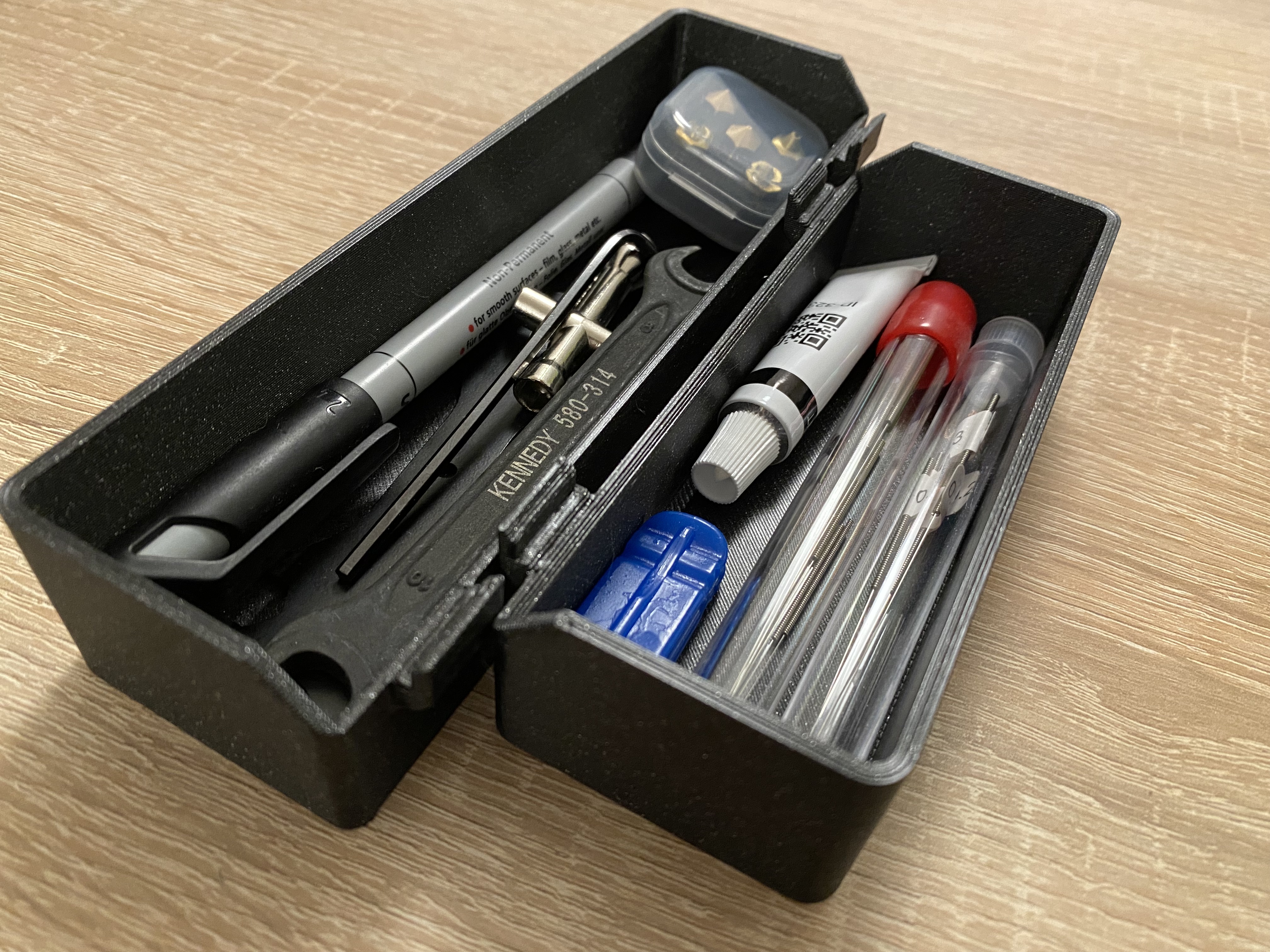

Short and long version of side-mounted and under-bed storage box for accessories for PRUSA MINI with a flexible insert.

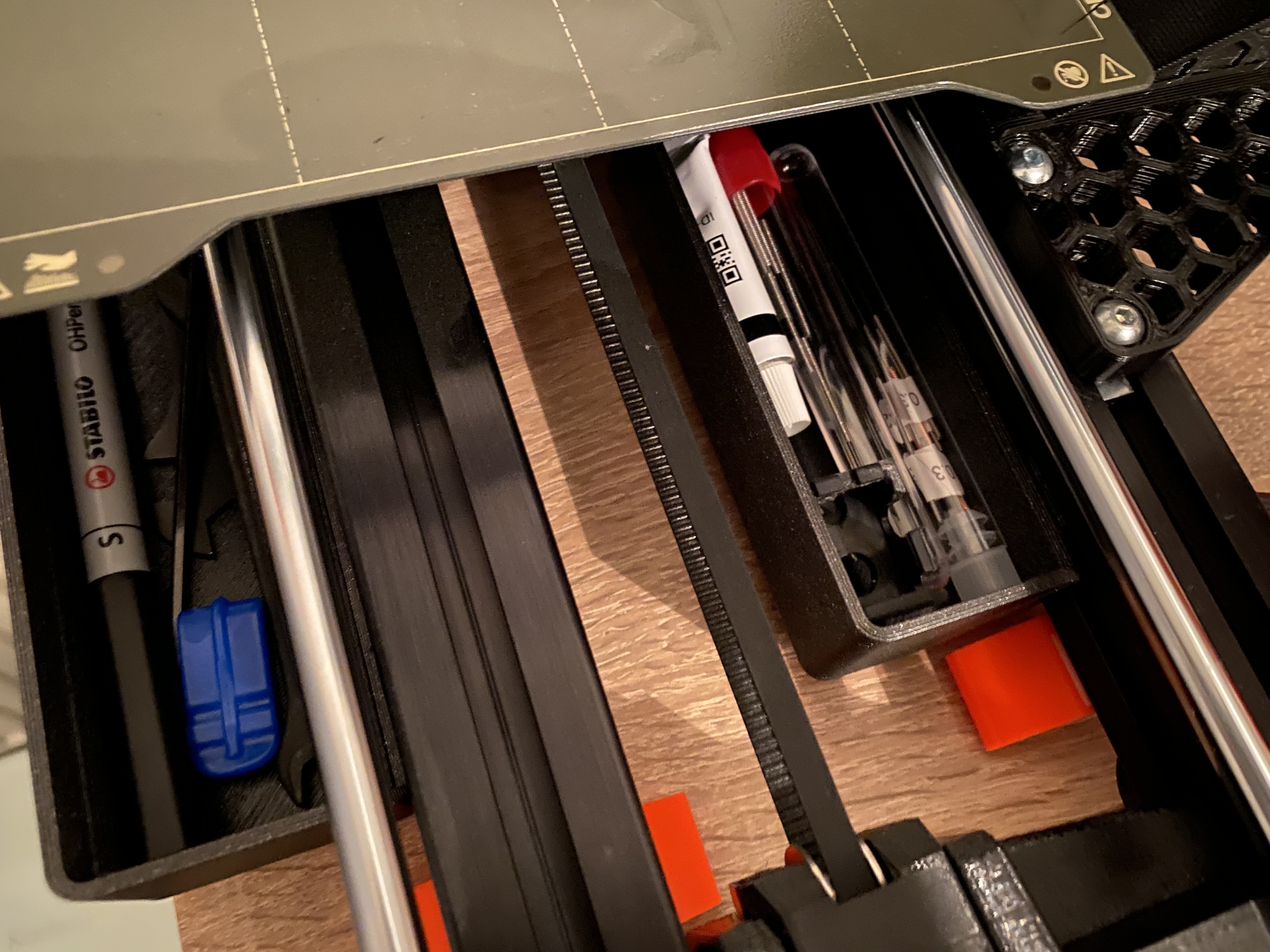

Both versions can be placed on the left side of the printer or under the bed on the right profile.

Because I use low-noise legs, I could not use the original version. So I created two versions with an optimized hinge. I use the short version inside the printer and the long version fits perfectly on the left profile. The box on the left profile simply allows you to quickly remove the entire box, including accessories.

Print a flexible pad / insert If you have a problem with vibration or noise from the accessories in the box during the printing.

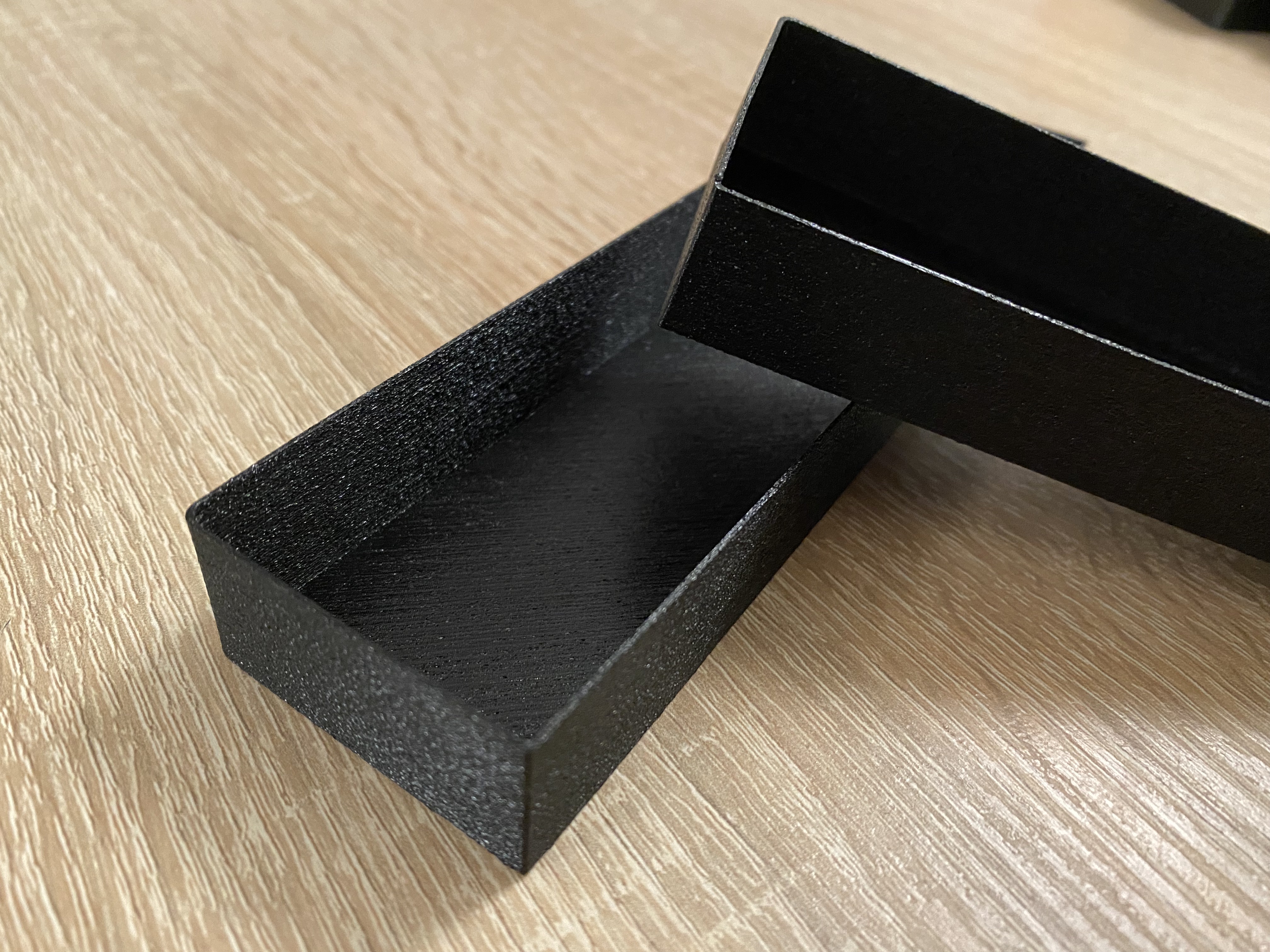

Long version: 170x48x32 mm (external dimensions) Short version: 125x48x32 (external dimensions)

Recommended printing settings of boxes: material PLA or PETG nozzle 0,6 mm perimeters 4 layer height 0,2-0,4 mm without support

Recommended printing settings of inserts: material FLEX (Fillamentum Flexfill 98A) nozzle 0,6 mm perimeters 1 (VASE mode) layer height 0,15 mm width extrusion: 0,65 mm

Have fun ;)

Design and description by Petr Skřivánek , licensed CC-BY-SA.
