Strap Clamp Tensioner
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~50 g
- Print time
- ~2.8 h
- Express shipping
- $20
More information
This is the tensioner assembly for a strap clamp. For the other corners you will need to find other designs, but they are quite common. There are several other designs available for this type of tool but I believe this design is a bit more elegant and operates very smoothly in use.
The Fusion 360 file is included for editing, but I designed this part before I was very good at using the organization structure so the model may be difficult to work with.
Print Settings
Notes
Use whatever settings you would typically use for structural parts, the key is scaling. For all of the parts to fit well you will need to scale the parts appropriately. For me this was the following scale factors:

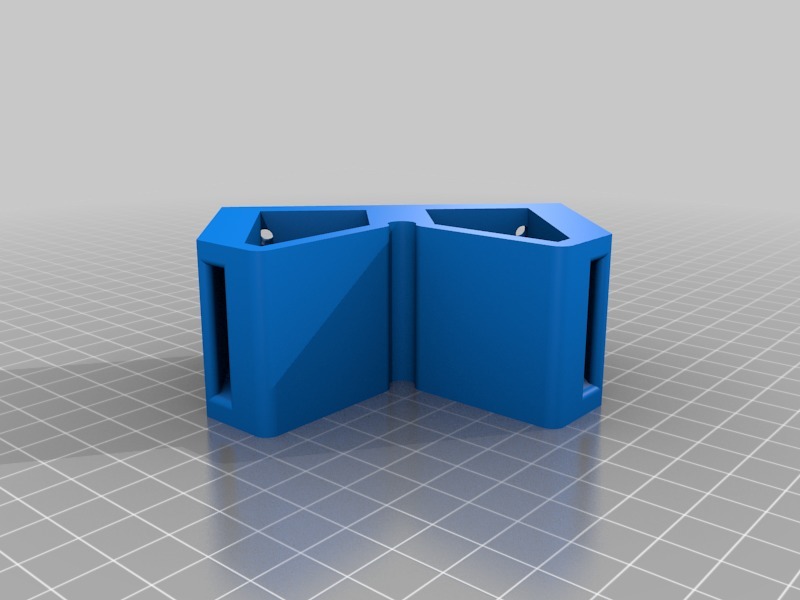

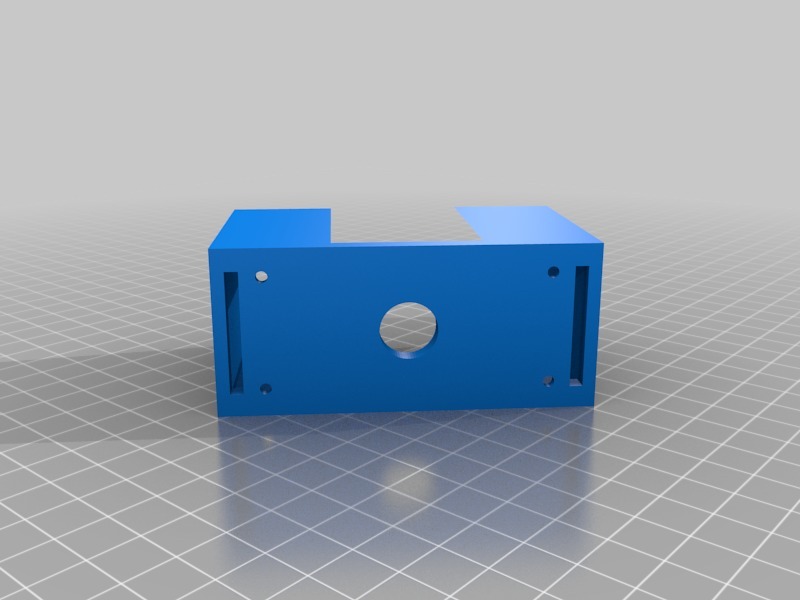

sleeve and 90Bracket - 102%

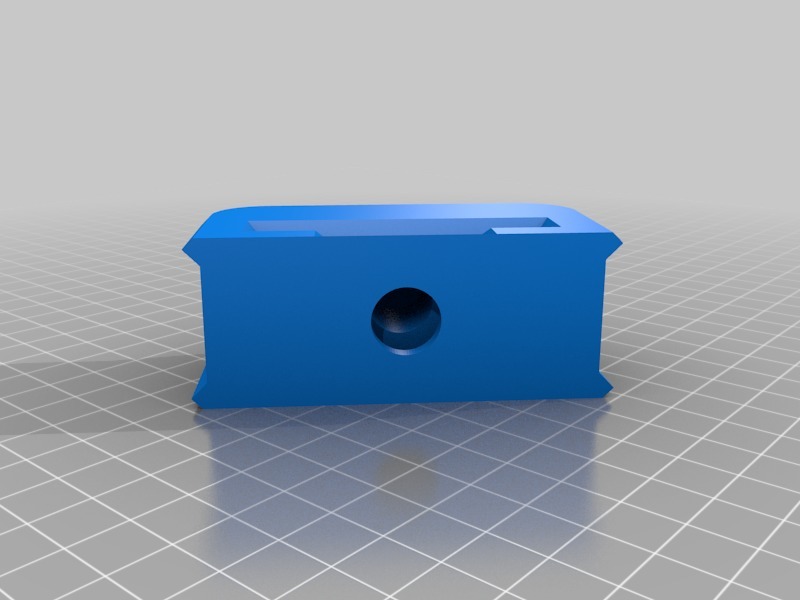

puller - 100%
wheel - 99.5%
It is important that the sleeve and 90Bracket are scaled the same becasue they have holes which must align.
Also, no support is needed if you orient all of the parts correctly for printing.
Post-Printing
Hardware required
M2.5 inserts - 4pce
M2.5x8mm screws - 4pce (use whatever length works)
1/2"-16x1 1/4" screw + nut - 1pce
You could use a M13 screw and nut by scaling up slightly.
Category: Hand Tools
Design and description by icybaker , licensed CC-BY.
