Strong hinge, easy latch, fast printing cable winder with parametric CAD. Print in place cable organizer or wire spool for pegboard

The original is amazing, I rebuilt it in CAD in preparation to organize my own box of cables. There are a few tweaks that I think are nice:

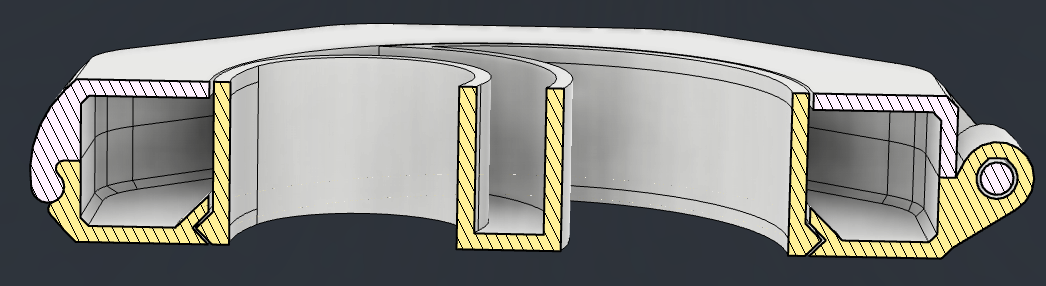

• Bigger clearances • The hinge won't stick or break as easily •

• Different latching mechanism • More positive engagement, easier to open •

• The cavities in the core piece go all the way through • Faster print • No bridging • Less material • Easier to operate • Built-in handle or hanger •

• Larger, flatter design • Larger bend radius = less damage to cables •

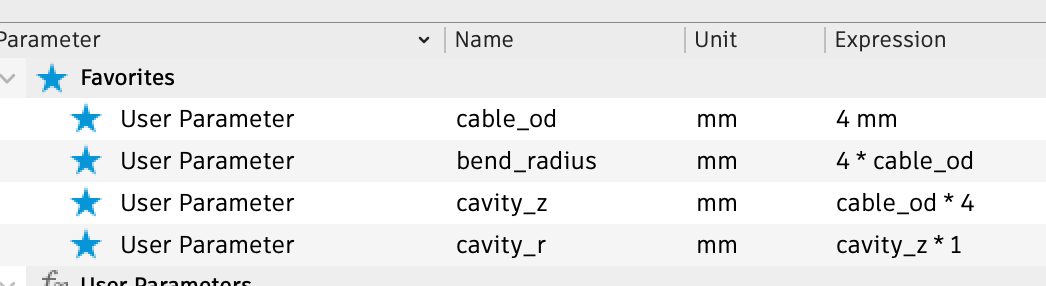

• Parametric design • Customize the cable diameter, bend radius, wall thickness, height, octagon vs hexagon, etc

I recommend disabling brims and supports for this model

As usual, post your make or feedback in the comments! I want to know if the parts fuse together or the latch is too tight or too loose

Design and description by GekoPrime , licensed CC-BY.
