Strong Locking Cable Clip, Universal Desk Cable Holder

Why Make Yet Another Cable Clip?

I tried the very popular Klamma cable clip, and while the design is really clever, I felt it was too flimsy, especially if not mounted to a flat surface, it would open on its own quite easily. So I made this one, which should not have the same problem.

Updates

• v1.1: Tweaked the latch a bit, should be much less likely to unlock under pressure from cables. • v1.2: Added the version with no dividers as promised.

How to Print

Material: PLA or PETG both work fine.

Layers: Prints fine up to 0.3mm layer height.

Perimeters: 2 is enough.

Infill: 15% is enough.

Supports: not needed.

Just make sure you have good bed adhesion and it will print fine.

4 Mounting Options

There are four versions of the clip, pick one that works for how you want to mount it.

Double-sided tape

Recommended option for using as a desk-side cable holder or for semi-temporary installations

There is a cutout at the back sized to take a bit of this 30 mm reusable double-sided tape. The depth of the cutout is a bit less than the thickness of the tape, allowing it to stick to stuff but minimizing wobble that you would otherwise get with such a thick tape. The tape is pretty strong, so this method can be used for a long-term install, as long as you don't yank on the cables too much.

Zip ties

Easiest option if you have something to wrap a zip tie around

Ears are added to the back of the clip, allowing you to put a couple of zip-ties through for mounting. Zip-ties can be inserted along the length of the clip or perpendicular to it. Or both, if you use thin zip ties.

Screws or glue

For permanent installations on flat surfaces

Holes for counter-sunk wood screws are added every 3 cable-holes. Be careful not to screw this in too tightly, you might split the layer lines. There is also a small indent on the back where you can put a drop of glue for extra security.

Nothing or just glue

For if you just want to hang it in the air or mount it with glue.

16 Sizes

Size is measured by the number of cable holes. There are versions from 1 to 16 holes, though for some mounting options the versions with less than 4 holes may not be available. Each hole is 7.5 mm, which should let most cables slide though it pretty freely. The 4-holed clip is the default version.

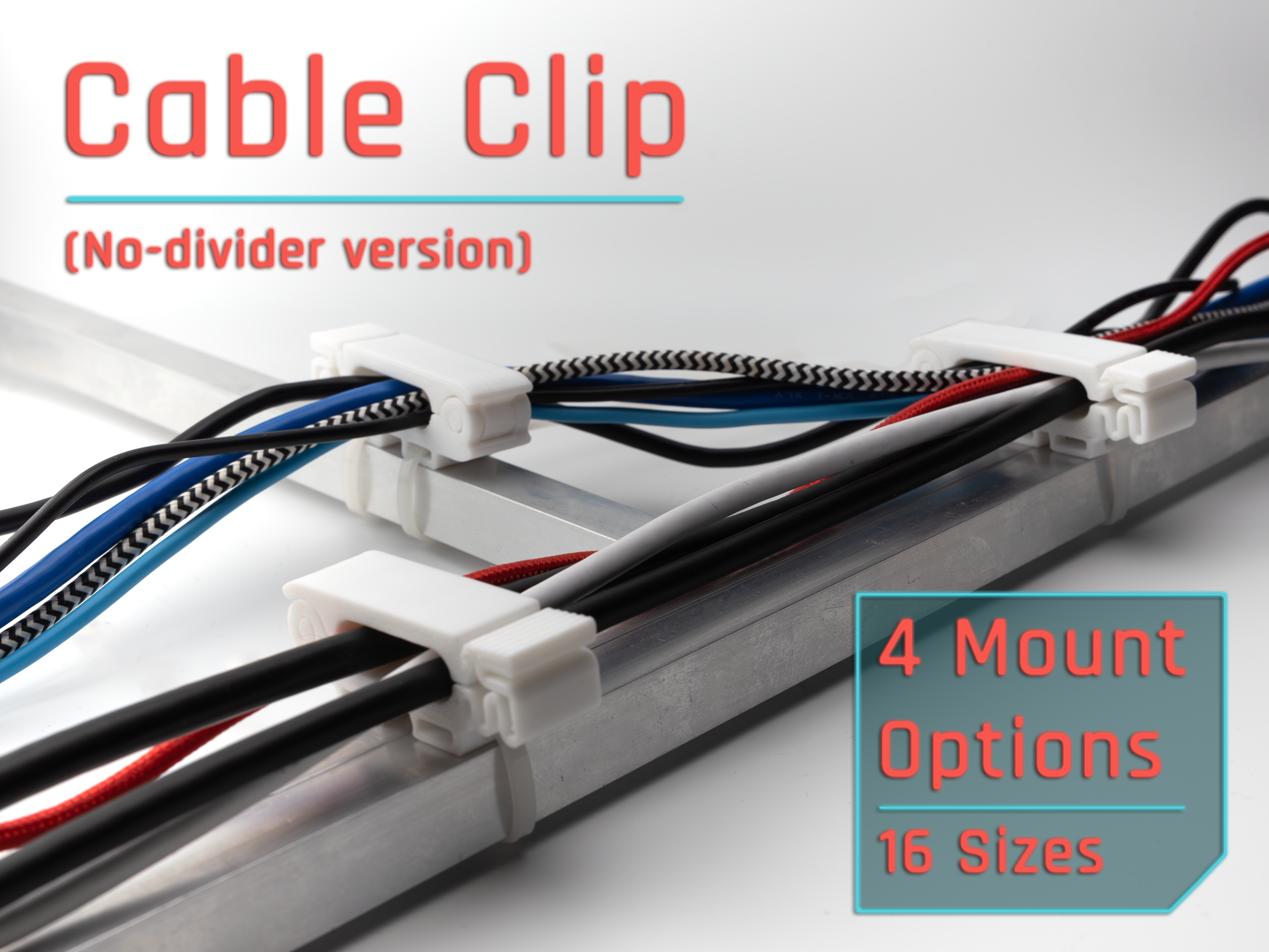

For the no-dividers version, clips are sized by “number”, which is how many cable holes it would have if it had dividers. The length of the cable slot in mm is also included in the name. The width of the slot is 7.5 mm, which should fit the vast majority of cables. Size 4 is the default version.

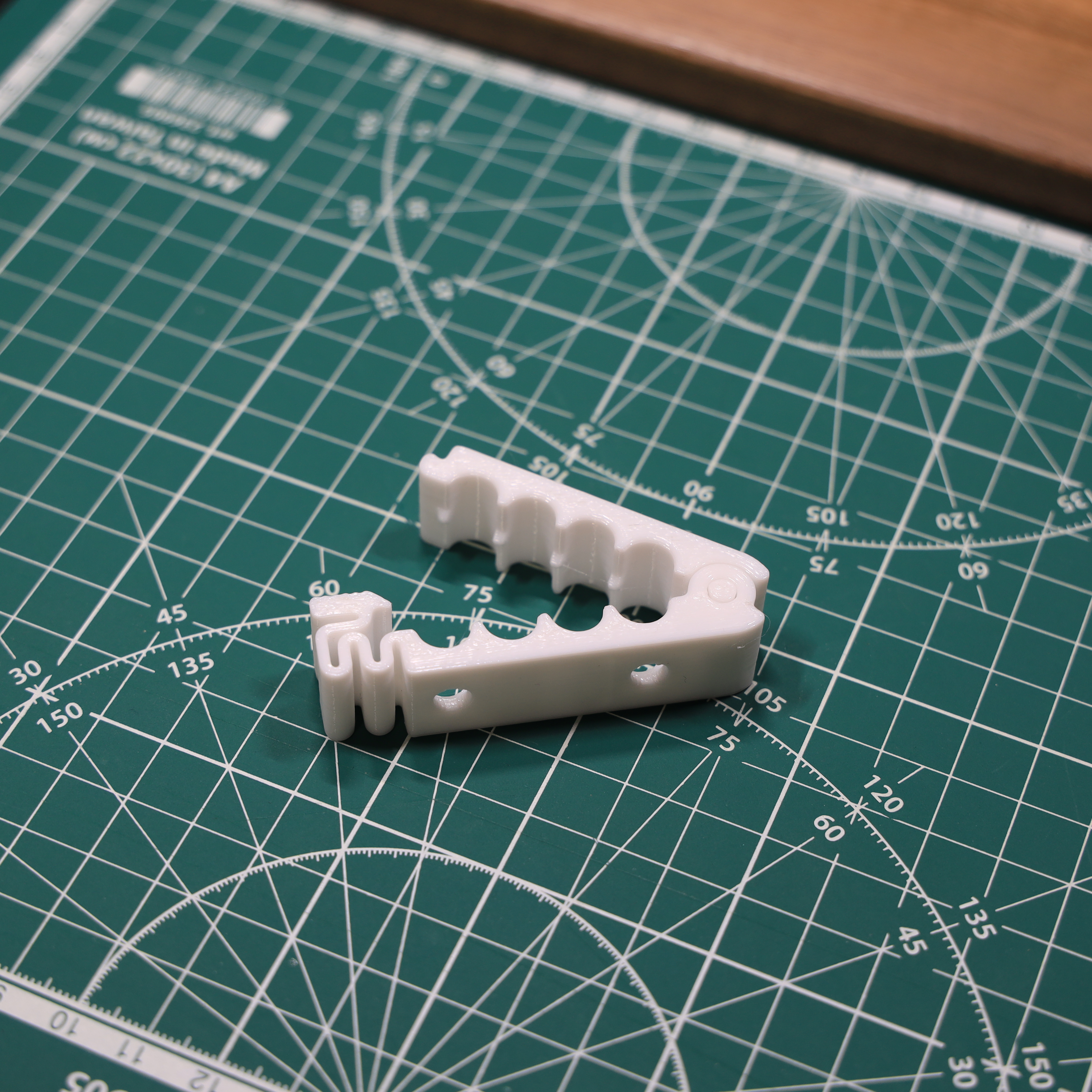

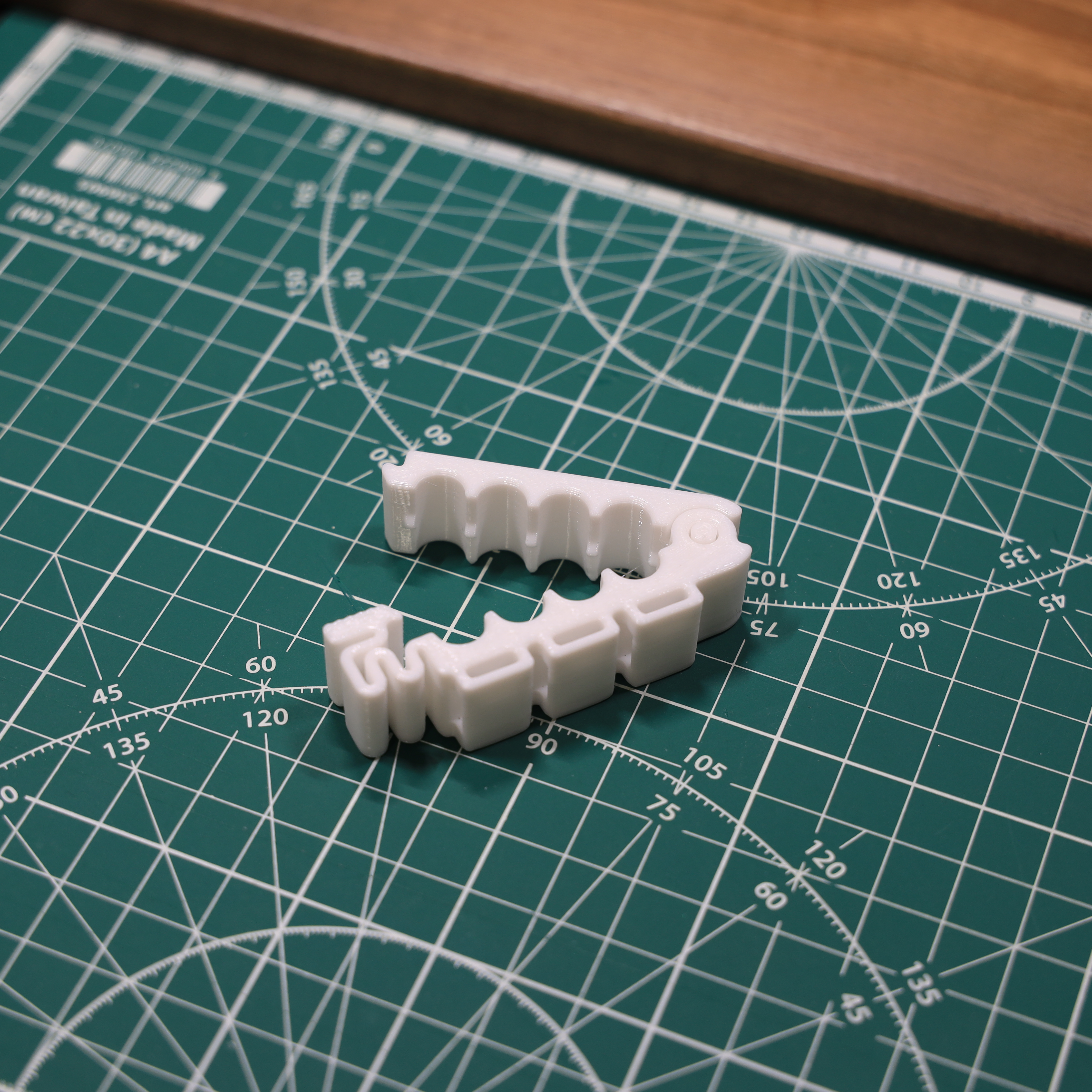

Robust Design

This cable clip was intentionally made boxy and thick to stand up to real-world stresses and not open when you don't want it too. It also keeps the second-gen hinge from my bag clip, but scaled up for much more strength.

Other versions?

Let me know in the comments or DMs if you want any other version or mounting option.

Note: the links to Aliexpress are affiliate, I get a small commission if you buy anything from them.

Design and description by neoyarus , licensed CC-BY-SA.
