Strong Modular Clamp Mk2
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~70 g
- Print time
- ~3.9 h
- Express shipping
- $20
More information

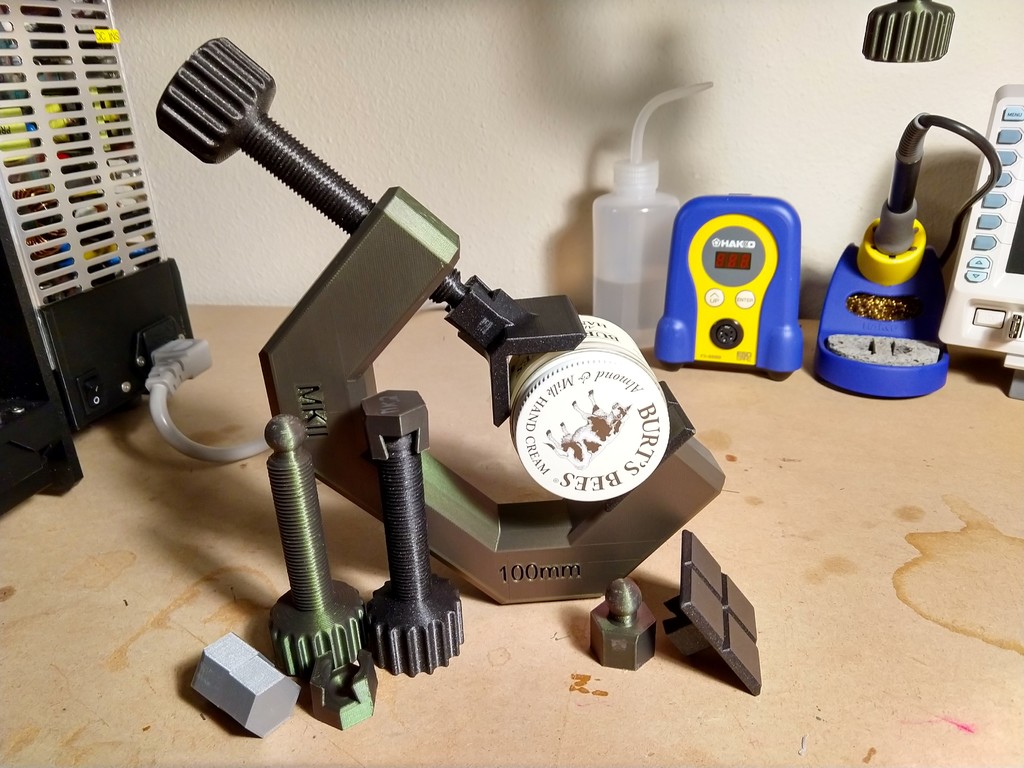

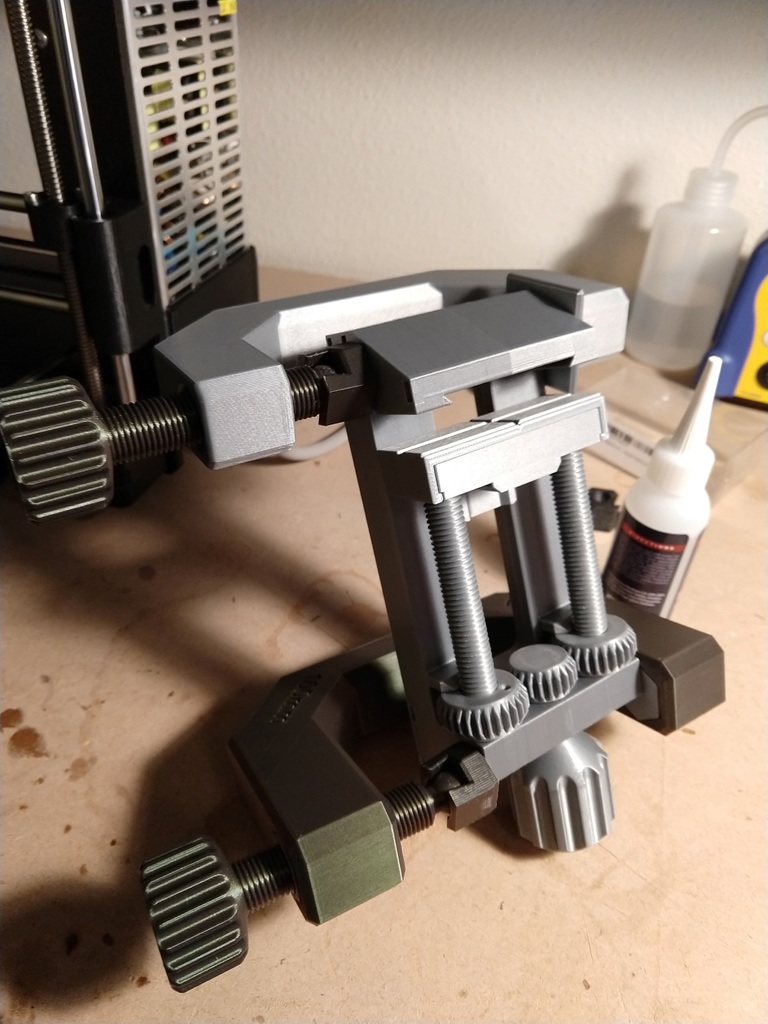

Second attempt at a strong and customizable clamp
Minimally you will need to print:
• 1 Clamp Base
• 1 Basic Screw
• 1 Threaded Insert

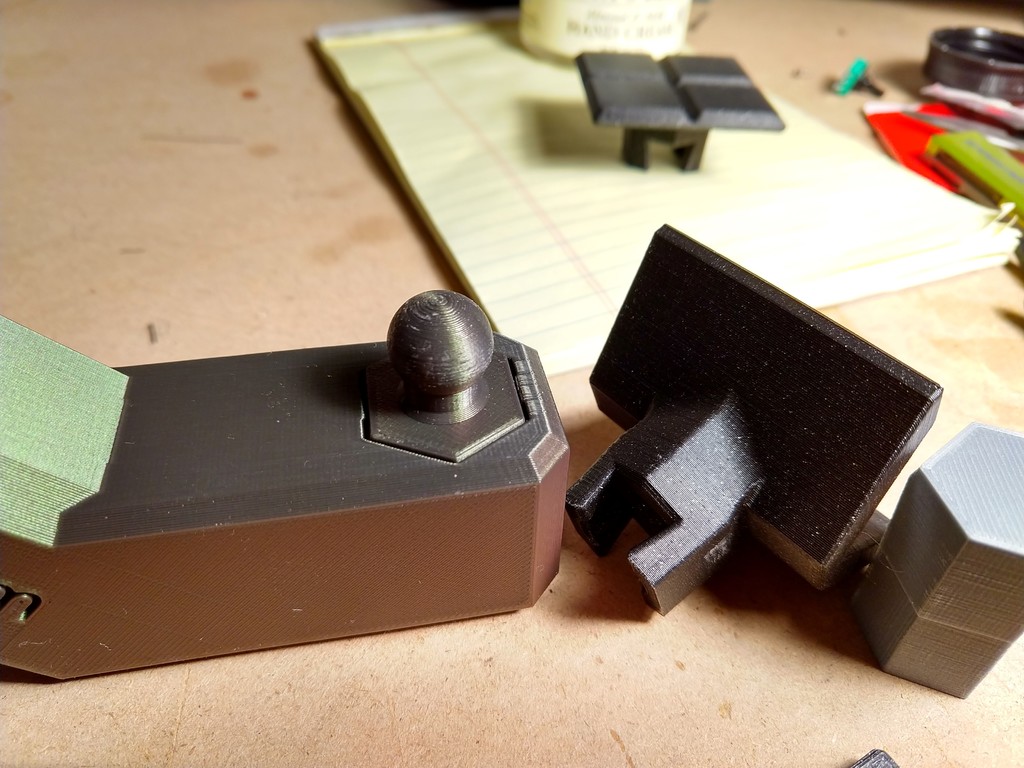

• 1 Ball socketed insert
• 1 additional insert of any style
In practice use the shortest / smallest screw and clamp base you can to get the best strength.
I'd like to work on a better "clip in" standard as this was my first attempt at a snap in part. My goal for the hexagon connector was ease of print and a strong joint under compression. It achieves this, but is probably a little more complicated a profile than it needs to be.
** Considering it's made from PLA it's pretty strong, again print the smaller parts for for the strongest grip. If i'm honest the 125mm design is pushing the limits of the material a tad.*
*** Not for use on Yaks*
Print Settings
Printer Brand:
Prusa
Printer: I3 MK3S
Rafts:
No
Supports: No
Resolution:
.30 - .15
Infill: 20%-25%
Filament: Prusament PLA Various
Notes
Print the threaded parts at better than 0.20mm resolution if possible. For greater strength dial up parameters and solid top and bottom layers.
Clamp base is designed to be printed with text facing up or down in the Z axis. The spike and wedge inserts will probably need support material in any orientation I can think of.
Category: Hand Tools
Design and description by ElectricCrowbar , licensed CC-BY.
Frequently asked
How long does shipping take?
Strong Modular Clamp Mk2 is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
