Super PINDA (SPINDA, S.P.I.N.D.A) Height Adjustment Tool, mounts into 3030 extrusion
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~27 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information

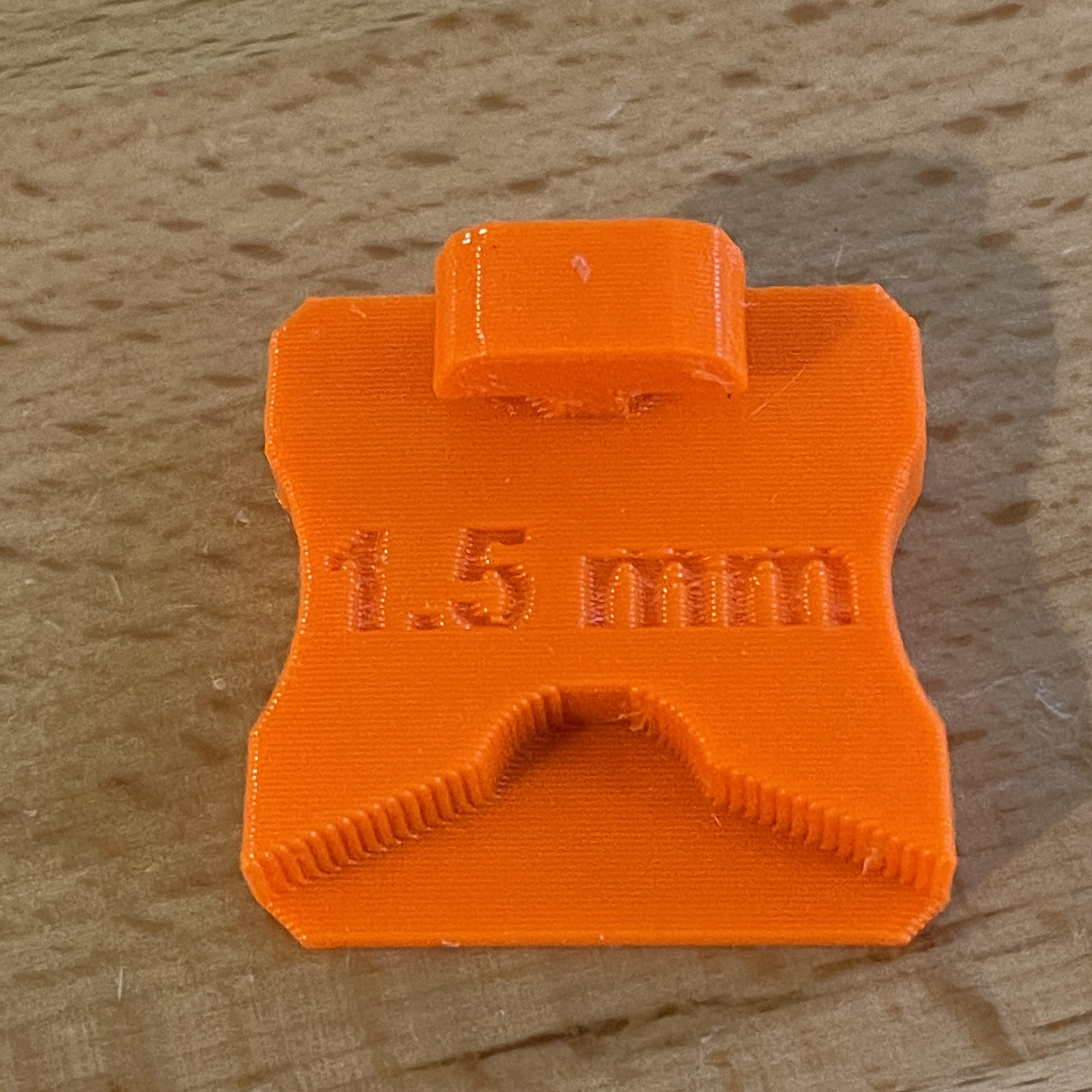

Useful for finding the right distance of the Super PINDA from the print bed. The optimal distance for the Super PINDA is about 1.5mm. That should get your optimal Live Z/first layer calibration to somewhere around -1.00, so you'll have plenty of wiggle room for fine-tuning up and down. Most credit cards/zip ties are too small to find that ideal height.
Remix of With_Maltodextrin's model, which in turn was inspired by my original version. This version is thicker than With_Maltodextrin's version, to make it easier to insert and remove from the 3030 extrusion.

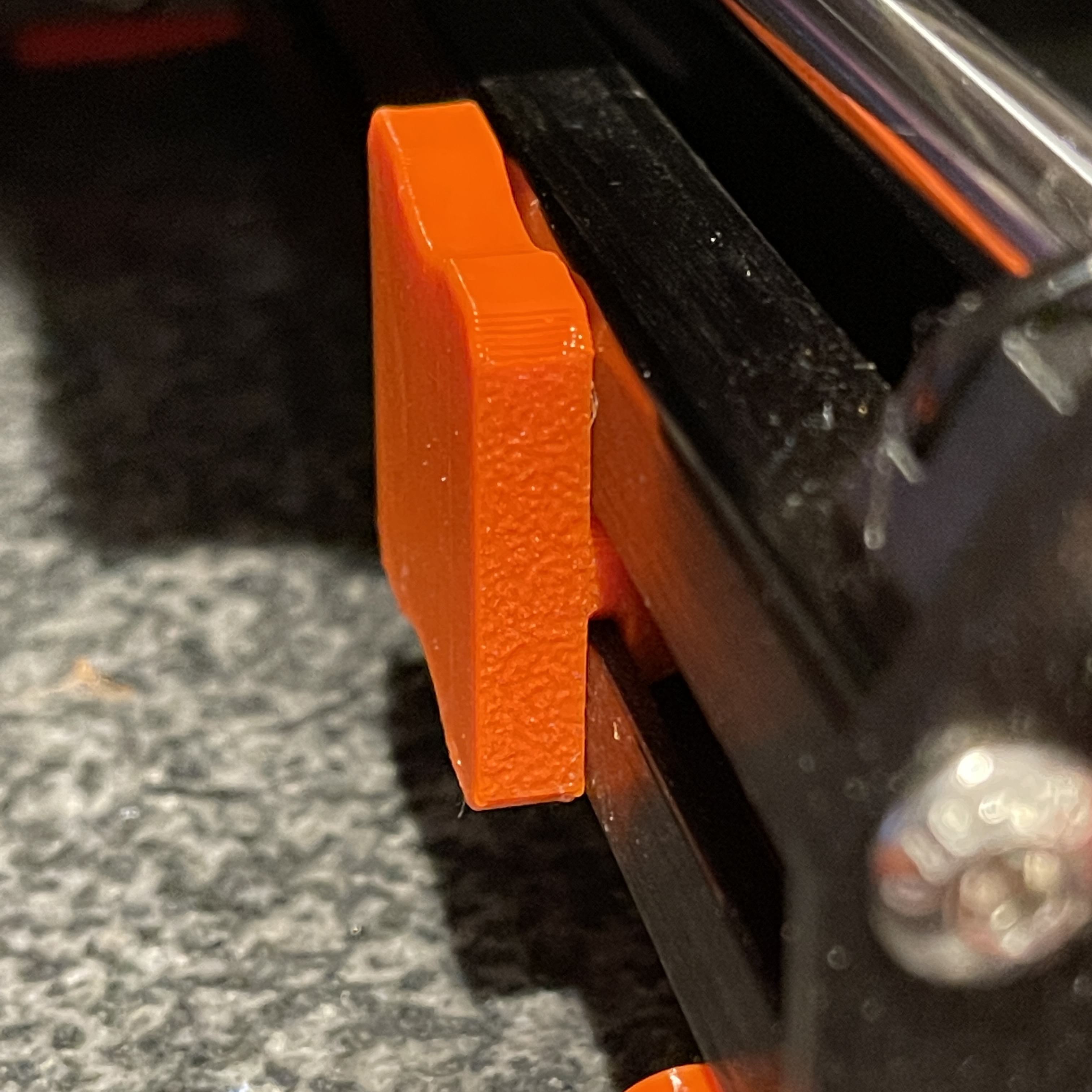

I have mine mounted on the Z axis of the Mini and the Y axis of the Mk3S.
Prints without supports, 0.2 or 0.3 mm, standing up.
NOTE: From the comments you can see that for some it comes out at exactly 1.5mm, for others closer to 1.4 or 1.6, depending on your printer's calibration, settings, etc. In the end, it doesn't matter if the distance is exactly 1.5 mm. Either way, it will bring you into the right ballpark, and it's a lot better than zip ties or credit cards with ill-defined heights.
If you like what I'm doing…
… consider buying me a coffee or joining my Club.
Design and description by fuchsr , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Super PINDA (SPINDA, S.P.I.N.D.A) Height Adjustment Tool, mounts into 3030 extrusion is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
