Swing Arm Lamp Clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~34 g
- Print time
- ~1.9 h
- Express shipping
- $20
More information

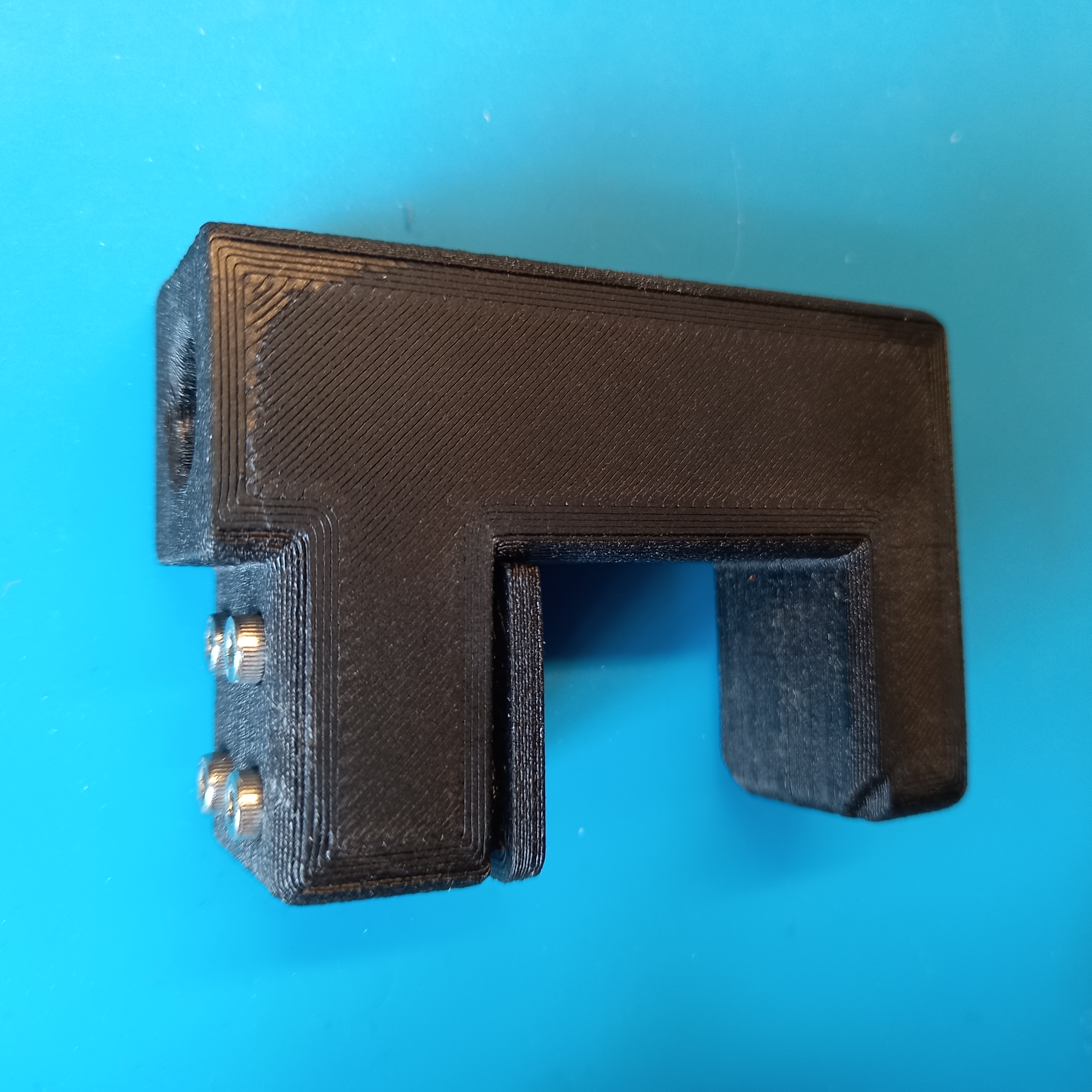

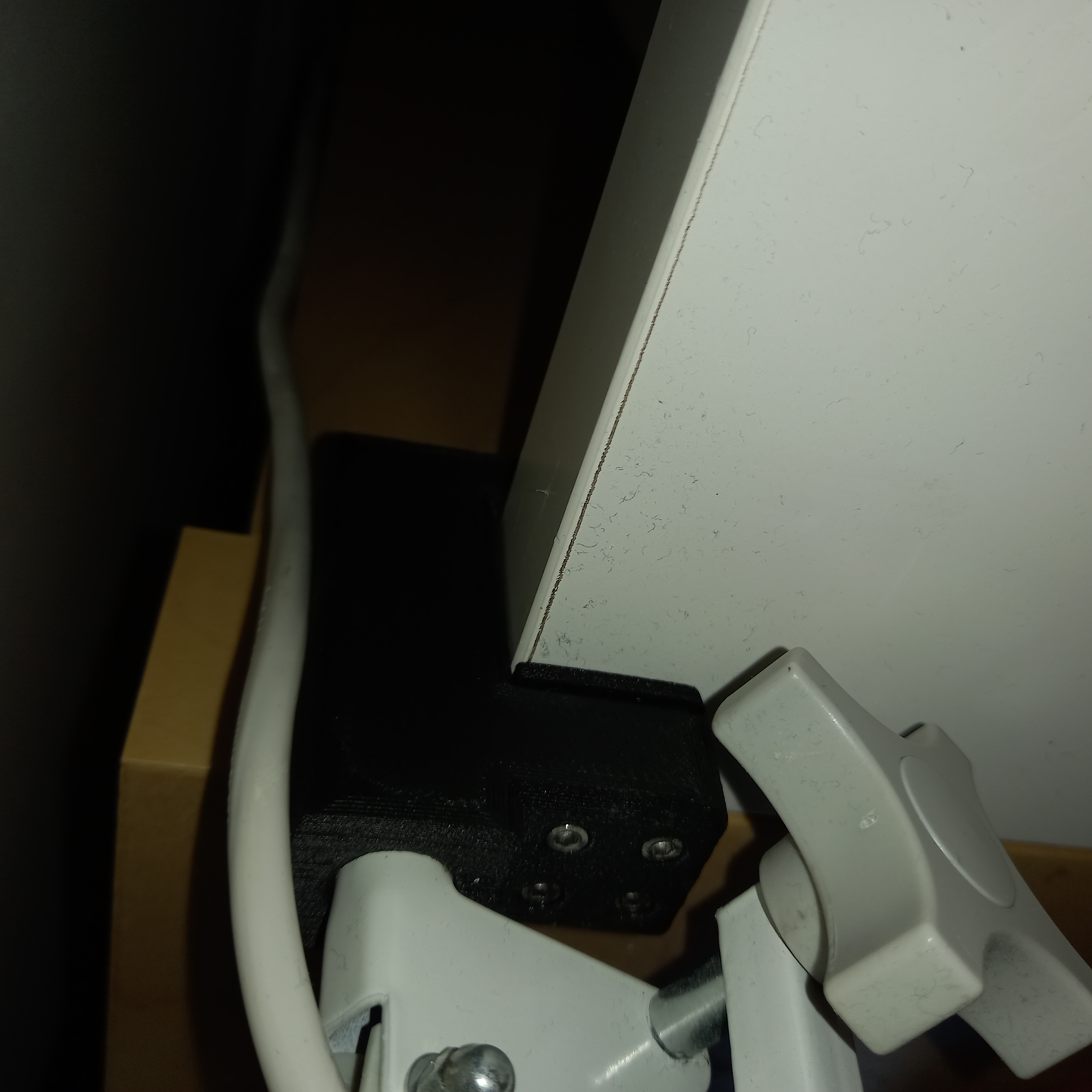

Very strong desk clamp for swing lamps. Raised enough so the finger screw on the lamp clears the desk. Four bolts hold very tight but spread the load so it won't damage the desk surface. Underside cutouts allow for placement at a corner of an Ikea desk with bolt-on legs. Works much better than the clamp that came with the lamp. It is intended for a work surface that is 34mm thick (you guessed it, from Ikea).

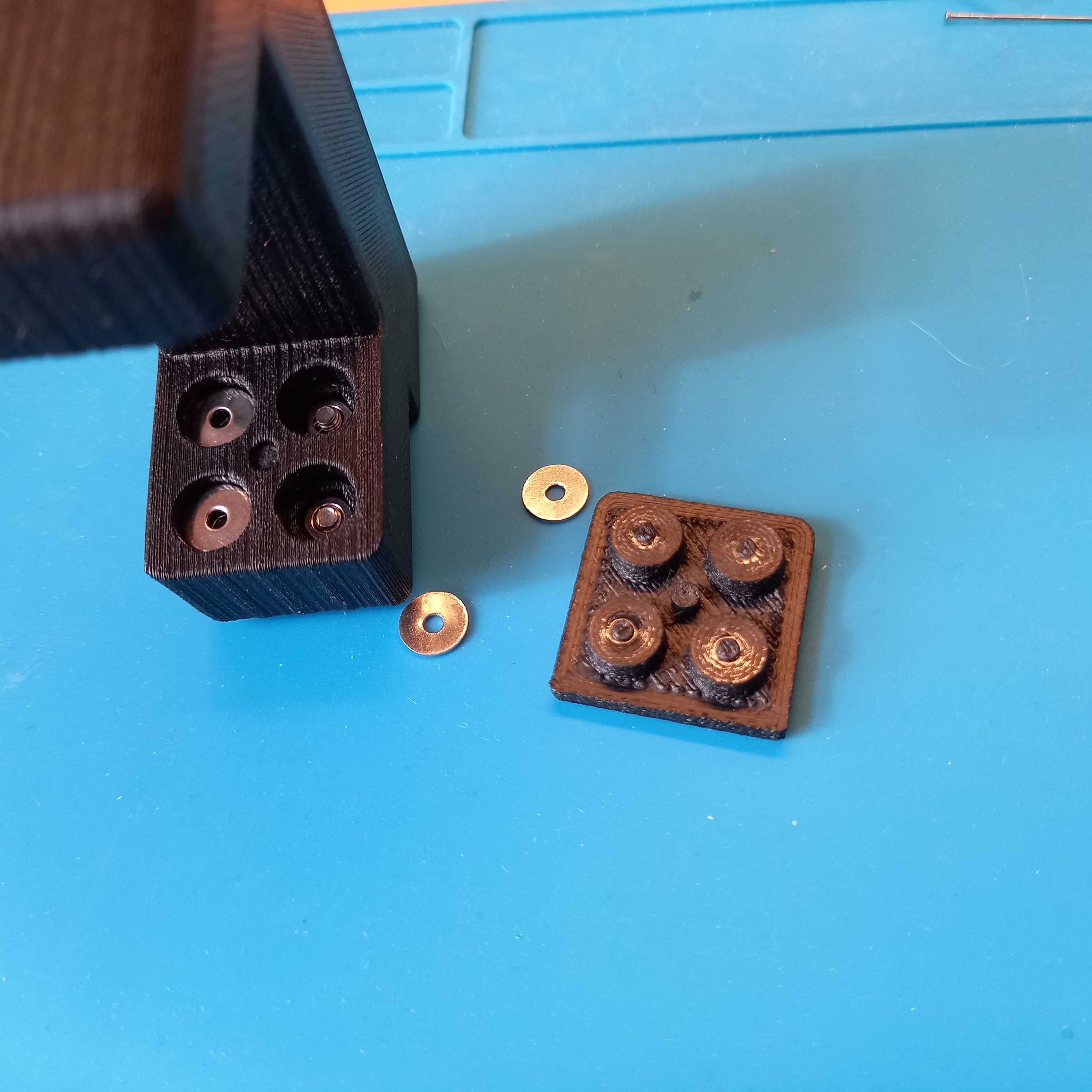

Print with at least 4 perimeters, 30% infill, 2.5mm top & bottom solid layers, and strong resilient plastic (PLA might be too brittle). Note the pressure plate only fits one way. Requires four M3x12 nuts & bolts and M2 washers.
Update: There are now two versions. The M3 version fits a 34mm work surface tightly. The M4 version has a gap of 38mm so there's room for two 2mm rubber pads to reduce slippage. Obviously, the M4 version needs M4 nuts and bolts.
Design and description by Peter Main , licensed CC0.
Frequently asked
How long does shipping take?
Swing Arm Lamp Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
