Temp Control On-Off Knob for Audi TT 2001-06
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~35 g
- Print time
- ~1.9 h
- Express shipping
- $20
More information
The controls on the Audi TT are quite unique in these model years (2000-2006). The climate control system is off when the button is pulled and ‘on’ when the button is pressed matching the other buttons. So ‘on’ is the default state.

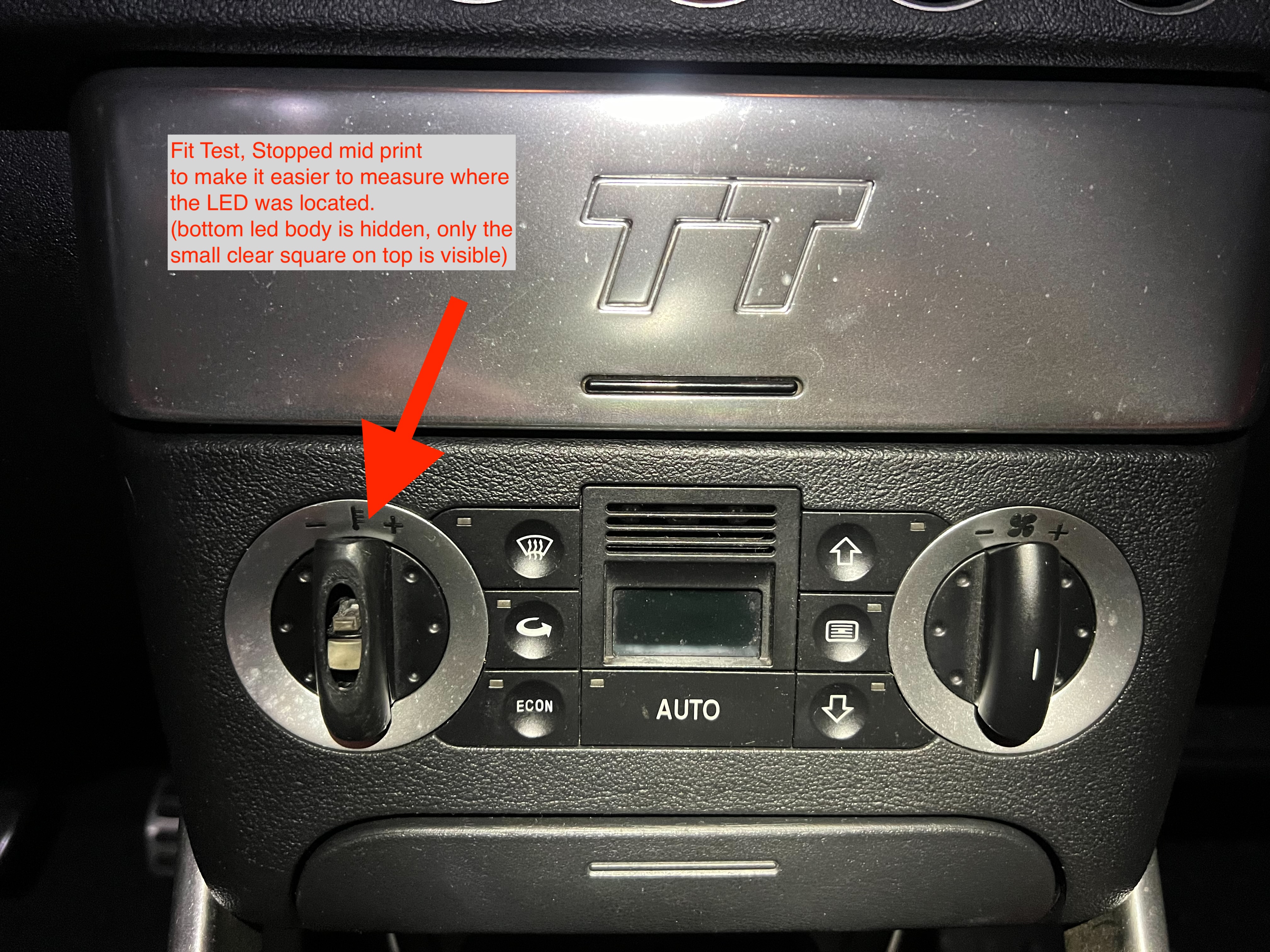

This button was broken off but the underlying LED and substructure still existed so I had something to work with.
Starting with the provided model attributed above, added the square hole and added some additional internal structure.
How to print:
• Open side down • Paint on supports • Smart fill • On overhangs Only • (click the internal features but NOT the inside of the button, it will be fine)
4. Supports for enforcers only.

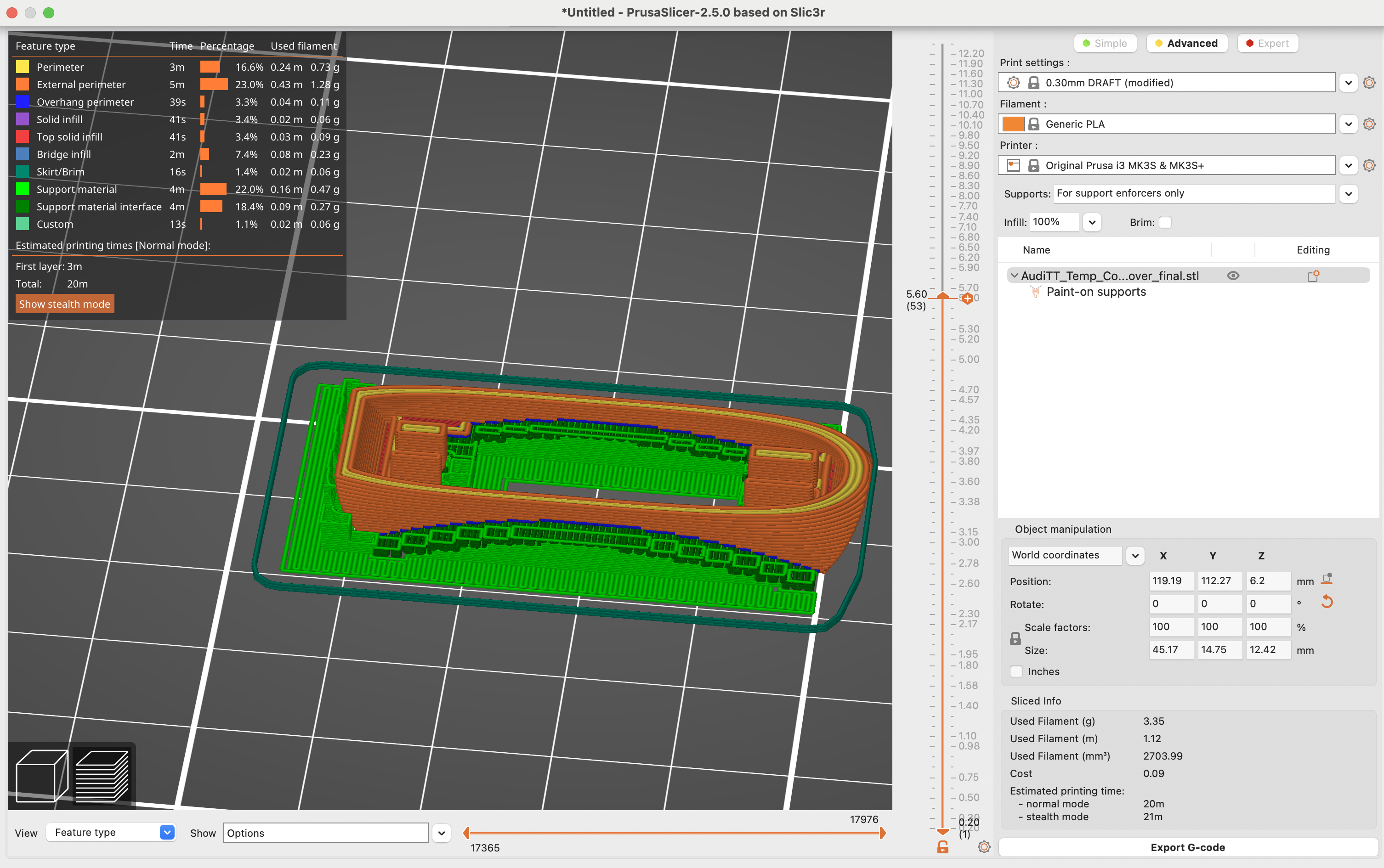

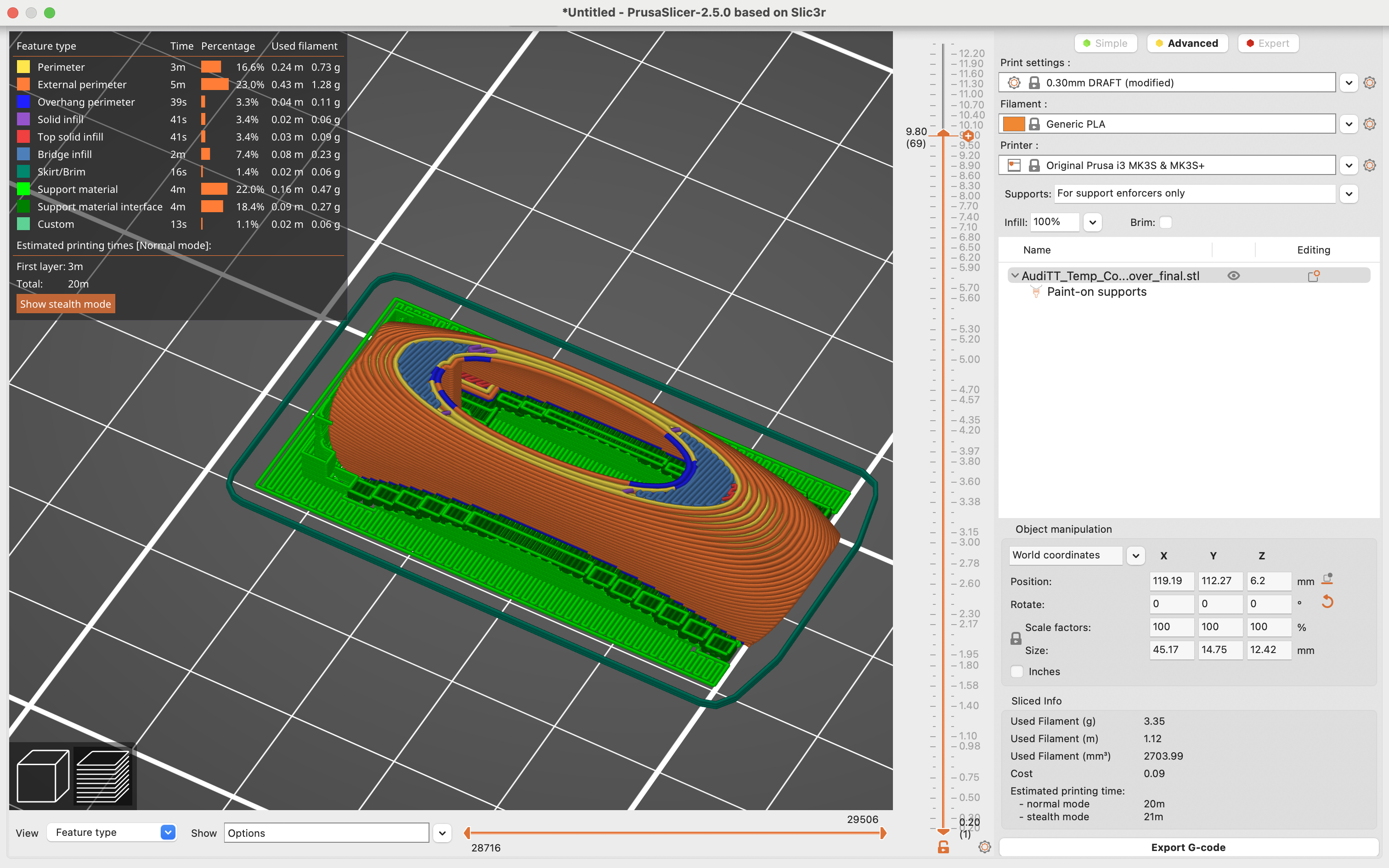

5. Verify the layers are correct and that the inside of the button is hollow. (image below looking at layer 53)
After you print with PLA and test for fit, I recommend:
• Print with ABS • Set your layer height to the minimum (finest resolution) of your printer. • After printing wipe it down with Acetone to smooth it out and give it a dull smooth plastic finish.
See final images soon! (Just need to upload them!)
Future enhancements
• Multi color, add white text. “OFF” • Setup the words in a very thin layer to make them glow from the backlight • The top and bottom of the button don't curve quite the sam as the real thing
Design and description by Trudant , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Temp Control On-Off Knob for Audi TT 2001-06 is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
