Toggle Clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~27 g
- Express shipping
- $20
More information

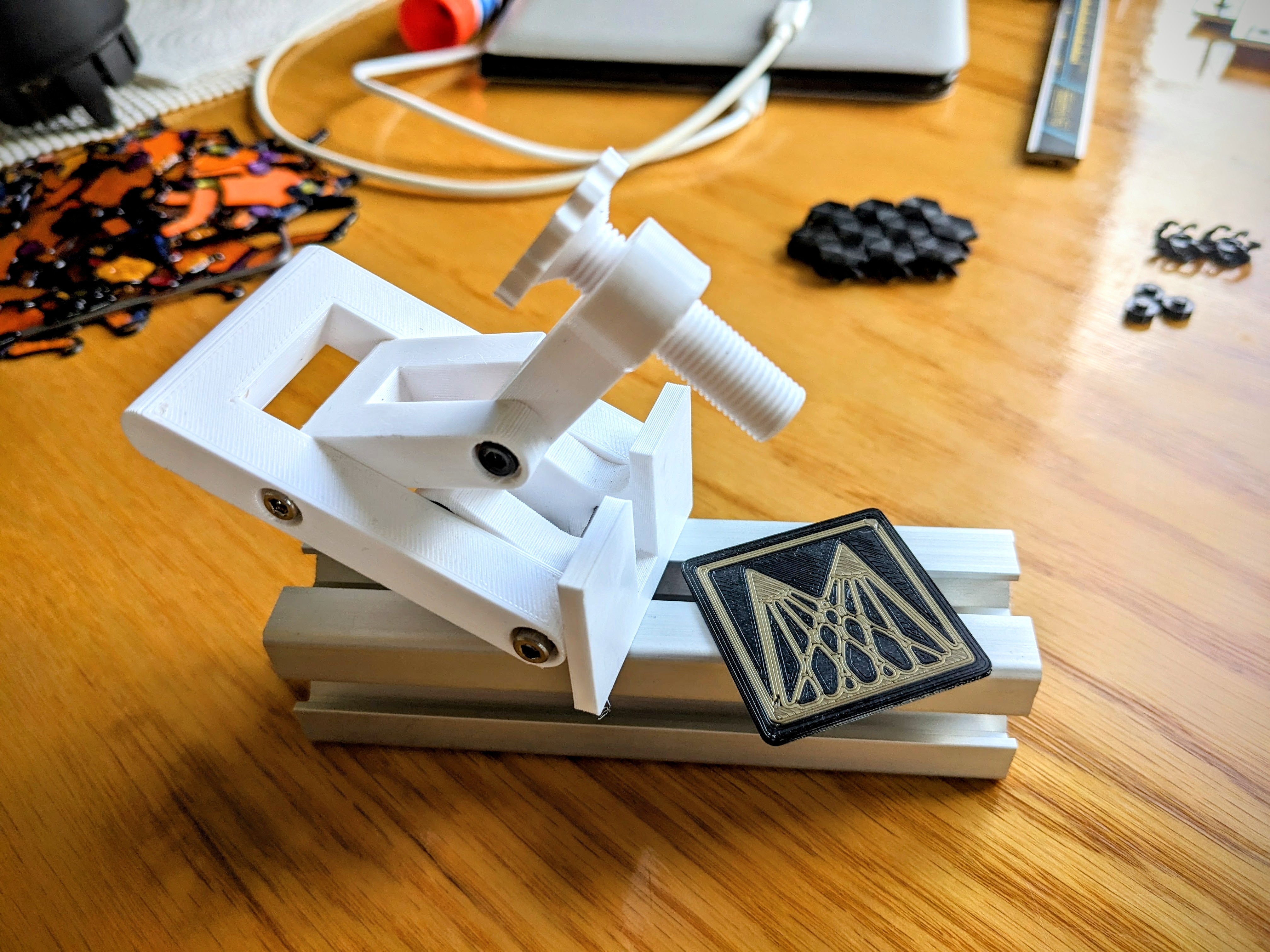

This is a Toggle Clamp for holding down a work piece on some aluminum T-slot extrusion.
I made it for working with a small drill press. It opens and closes easily. The screw section allows you to clamp down parts of different thickness. The action is quite strong and repeatable.
The OpenSCAD source files are included but the design is not quite parametric. So if you want to make a different size it will require some serious messing around.
Print the Base, Link, and Handle with 0.3 mm layers, 3 perimeters, 20% triangular infill.
The Arm and Post should use 0.15 mm layers so the threads are clean. Use 5 perimeters and 20% triangular infill to lower the amount of flex in the Arm.
Be careful orienting the Base on the build plate. The text should be going vertically. Other parts are pretty obvious.
You will need two M3x20, two M3x40, and one M4x12 cap nut screws and associated bolts.
You could fasten this toggle onto something other than the T-slot that I used. Just need an M4 bolt long enough for your application.
Design and description by DrTomFlint , licensed CC-BY.
Frequently asked
How long does shipping take?
Toggle Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
