Toolbox handle
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~34 g
- Express shipping
- $20
More information

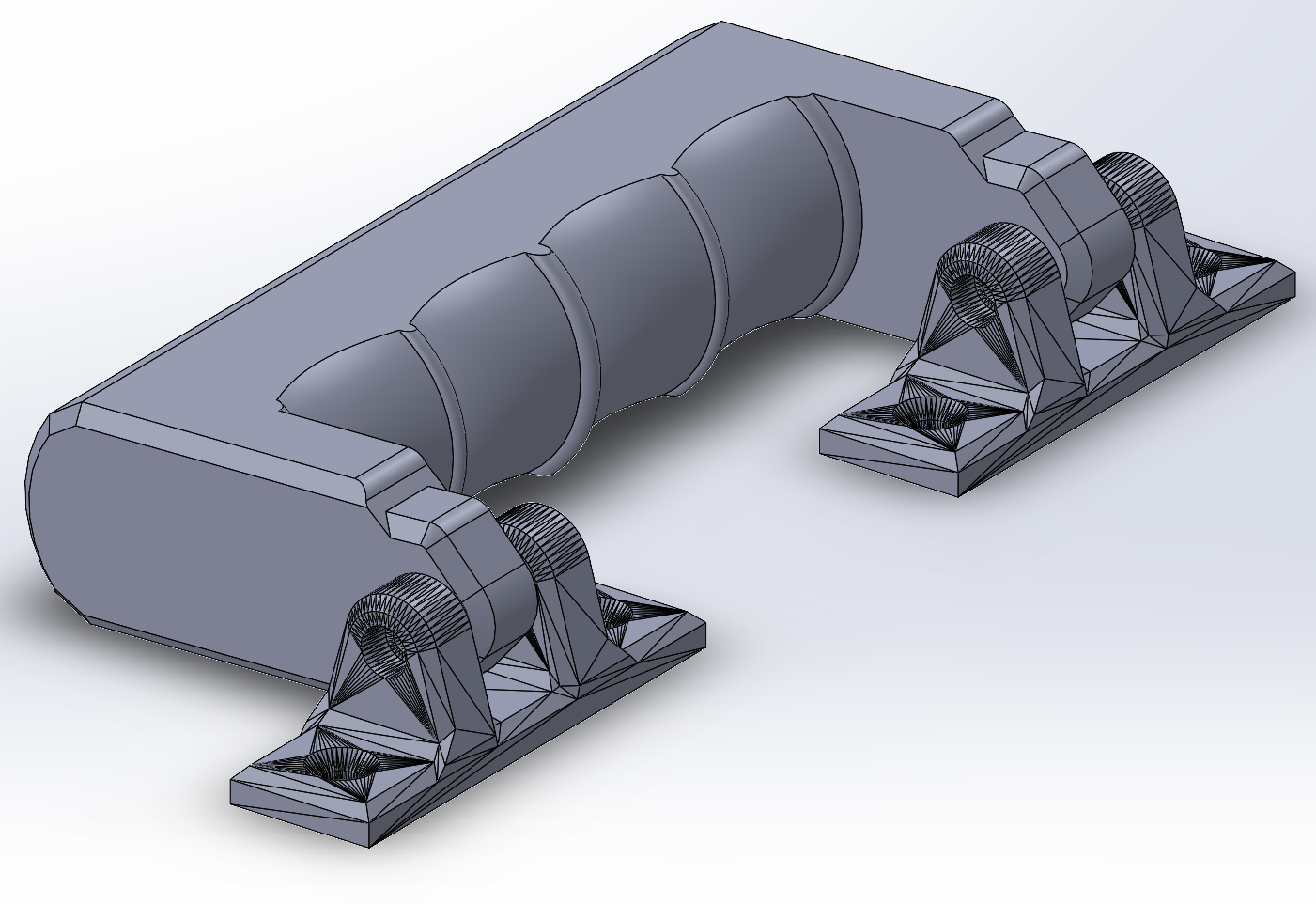

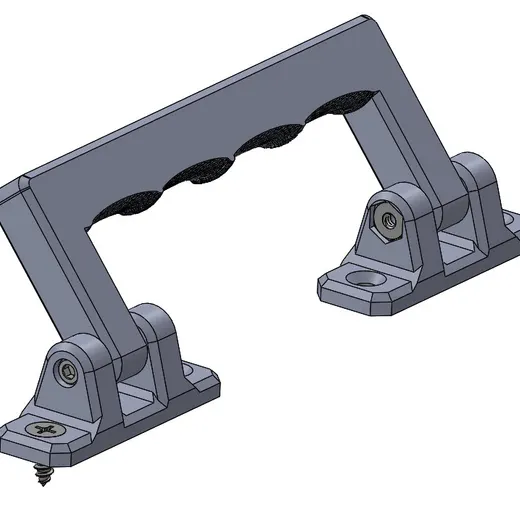

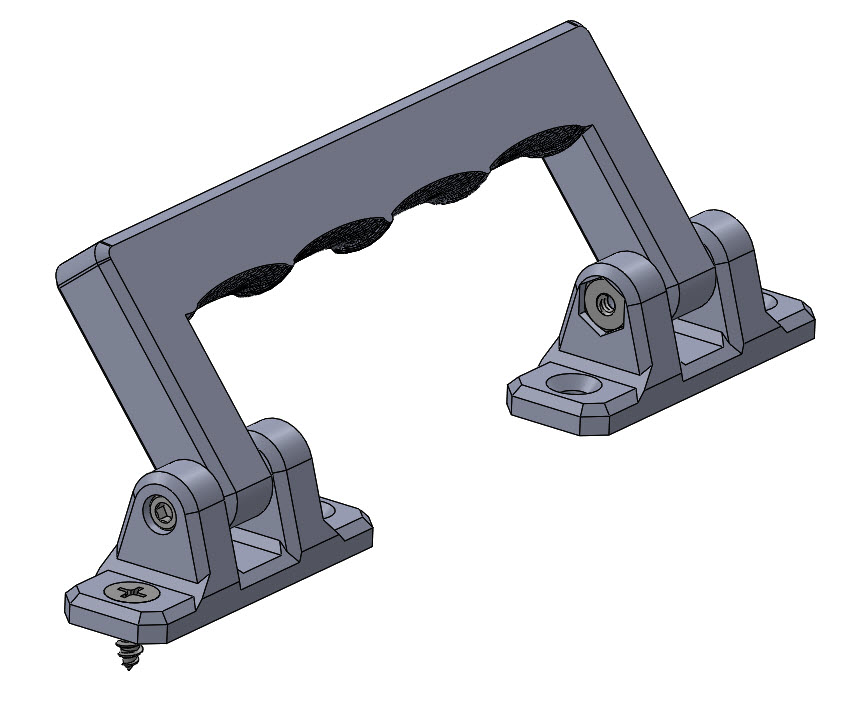

In my quest for a self-contained toolbox style handle, I started with the handle from a Ghostbusters prop (https://www.thingiverse.com/thing:1579200)

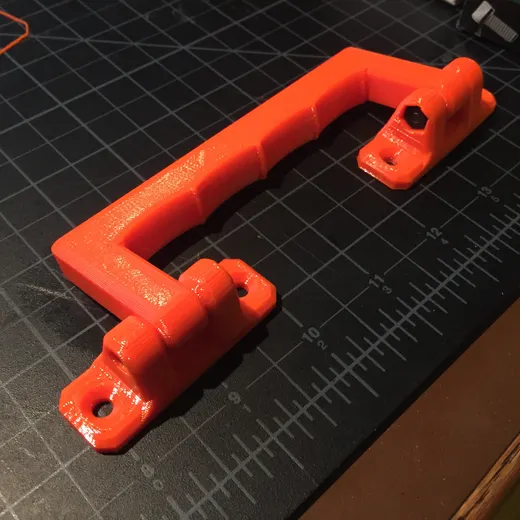

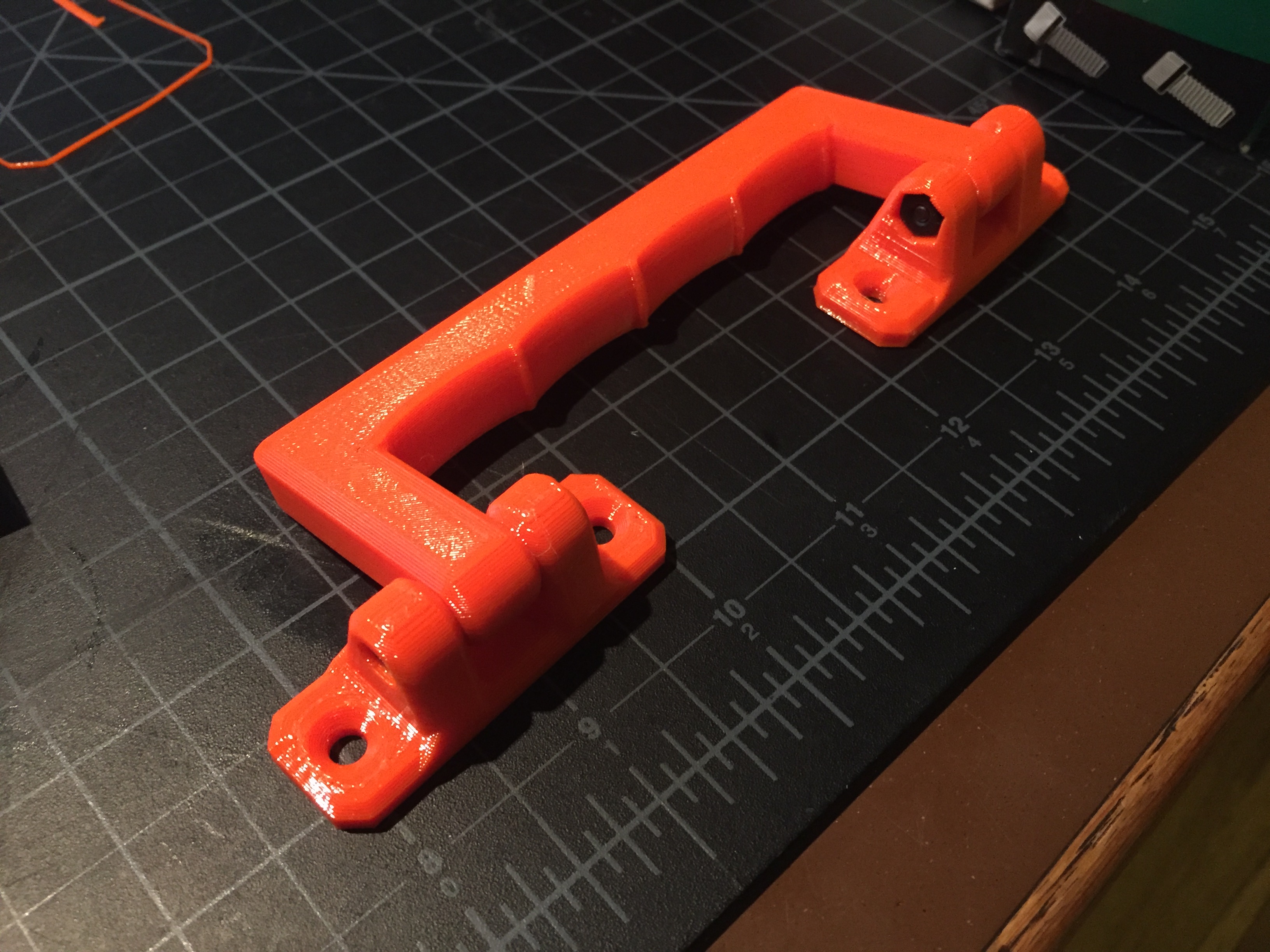

I also made a beefy version sized for a large hand (my own). Print your preference.
Inside handle width is ~4".

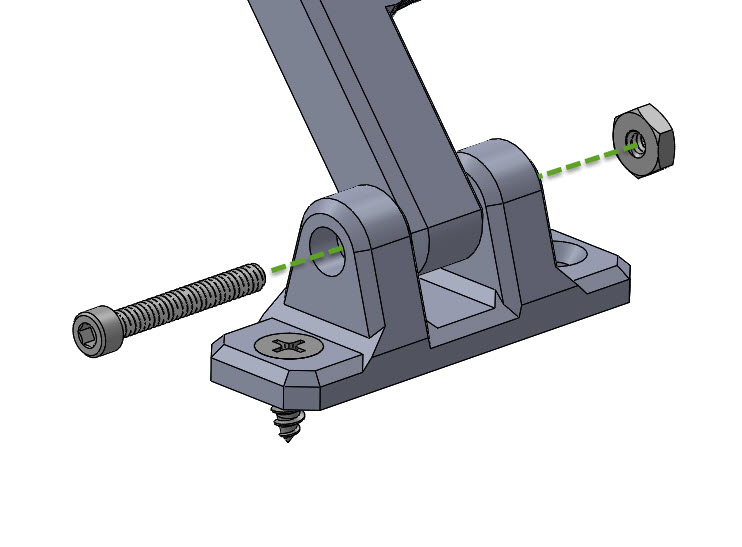

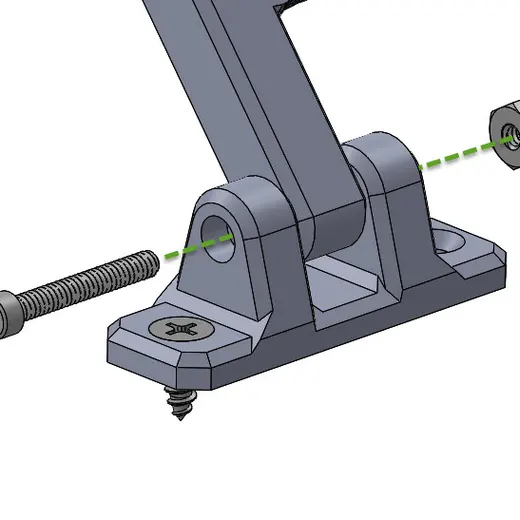

6 fasteners runs through the pivot and are nutted on the other side. to provide as much strength as possible. There's enough clearance in the joint where you should have full screw thread engagement in the captured nut while still allowing the handle to rotate freely but YMMV.
Assembly Hardware:
6-32 socket head screw - 1" long: https://www.mcmaster.com/91251a153
6-32 hex nut: https://www.mcmaster.com/96537a130
Attachment Hardware:
8 Flat head wood screw
Print instructions
No support/raft needed.
gcode resolution is 0.3 layer height and 10% infill.
STL UNITS ARE IN INCHES
Design and description by Bwolfey , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Toolbox handle is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
