Toothbrush Holder

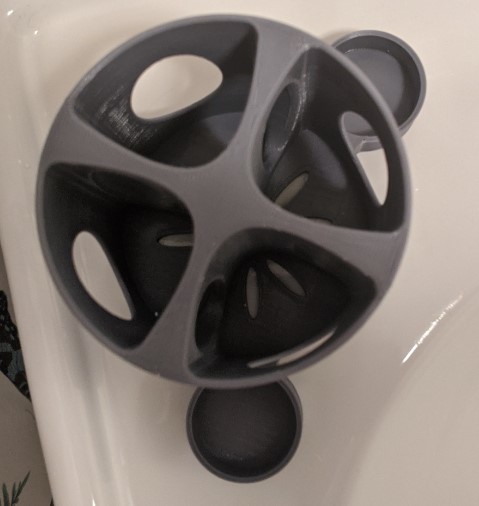

For a while wanted to create a toothbrush holder for our bathroom and finally got around working on it. Wanted the holder to have space enough for a good amount of brushes.

I also wanted some place to put the toothpaste tubes (the ones you store upright.

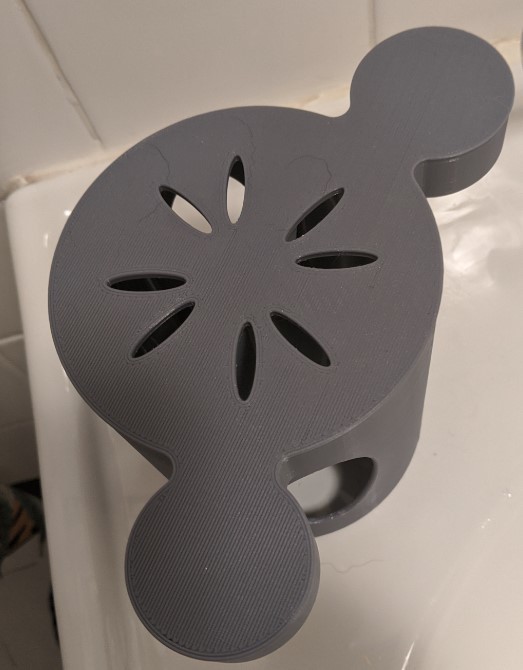

Created slots/openings in the bottom so water doesn't sit in the holder for long. The structure in the middle is for giving it a bit more strength. The elliptical openings are for decoration, venting and to save some filament.

I added the step and obj file version in case anybody wants to modify the design.

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: No

Resolution:

0.2 mm

Infill: 15%

Filament: eSun PLA+ Grey How I Designed This ===================

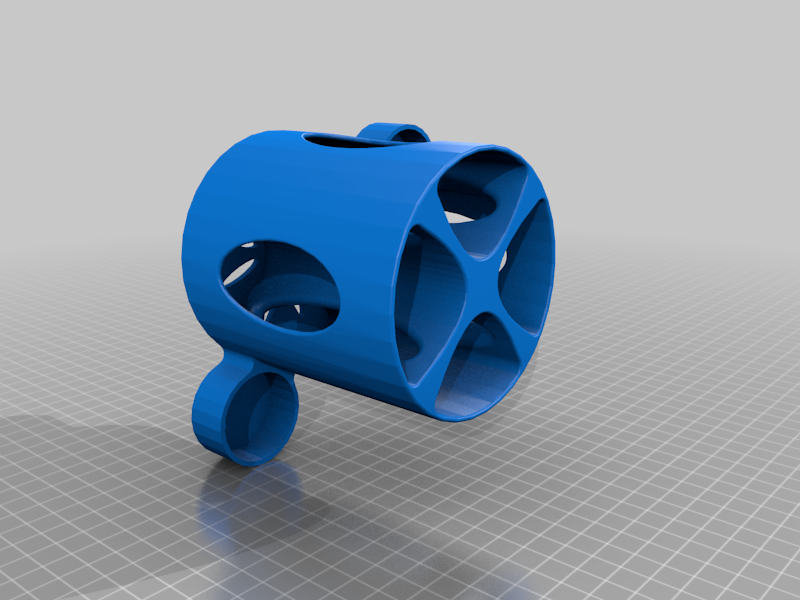

I designed the holder with Fusion 360. Simply created a first sketch with 3 circles. One for the center compartment and 2 for the toothpaste holders.

Then in the sketch I used some helper lines and circular patterns to define the center column elliptical shape.

Then it was a matter of extruding the parts to the right height and rounding things of with fillets.

Lastly I created the oval hole in the exterior and again used a circular pattern to create the other holes.

Category: Bathroom

Design and description by Dutchcolonial , licensed CC-BY.
