Toy Rubber Band Guitar
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~87 g
- Print time
- ~4.8 h
- Express shipping
- $20
More information
A really easy to print toy guitar that uses rubber bands as the strings.
Assembly
• Option 1 (Screws): Use 6 M3x12mm screws. This is what I did.
• Option 2 (Glue): Not tested myself, but glue should be a perfectly good way to assemble.
Notes for glue assembly
The inner diameters for the screws are 3.2mm and cylinders could be printed as line up pins when gluing. Probably 3x12 mm
Other Assembly Notes
The exterior holes on the back of the body are designed at 6.5 mm. If wanted, cylinders could easily be printed to hide the screw heads. Probably 6.1 or 6.2 mm.
To feed the rubber bands through the holes, cut a long angle at the end of the rubber band. A bent paperclip can be used to feed a stubborn band through. Tie a knot at the end of the band to keep it from slipping through.
Safety Note
The tuner screws have small threads, a drop of glue could be applied before screwing them in to keep the small parts attached for younger kids.
Print Options I used
• Wall Print Order: Inner/Outer
• Alternate Extra Wall: Enabled
These print settings were chosen to improve the bottom fillets on the neck. All other parts should be able to be printed as default settings.

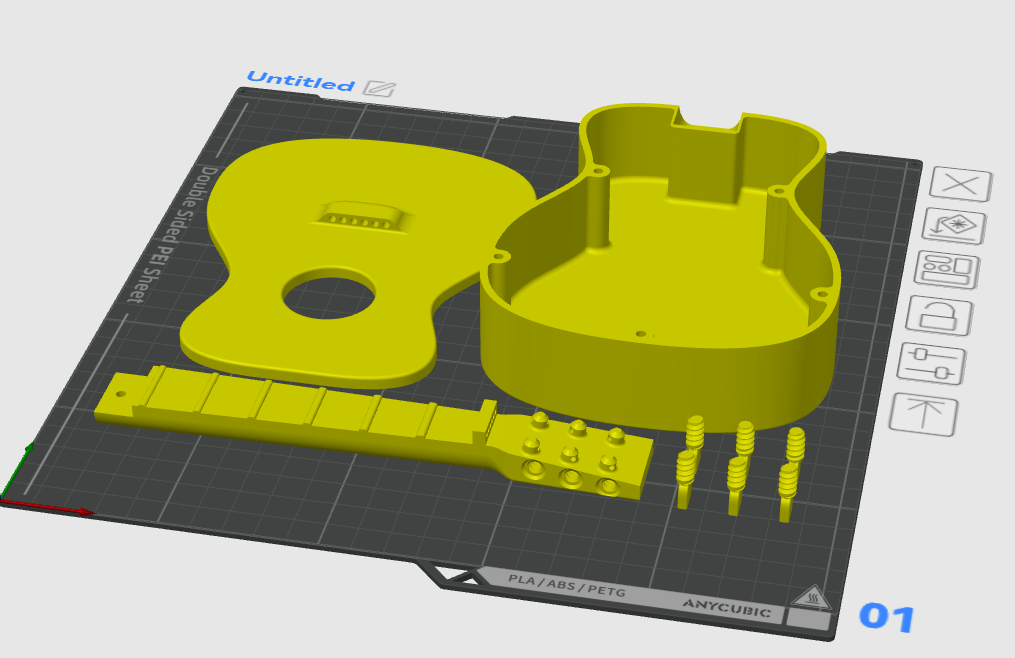

Preferred Print Orientations
Design and description by Trevor Reimer , licensed CC-BY.
Frequently asked
How long does shipping take?
Toy Rubber Band Guitar is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
