Troodon 2.0 Pro Front Door Magnets (The Filter / Nevermore compatible)

Update: Fixed some dimensions and added chamfers on the lower magnet bar for style. V1 is still in the files if you like it better without those changes.

These are magnet holders to replace the stock front door magnets on the Troodon 2.0 Pro. Get rid of those rattly, ugly kitchen cabinet magnets and make your front panels feel loved.

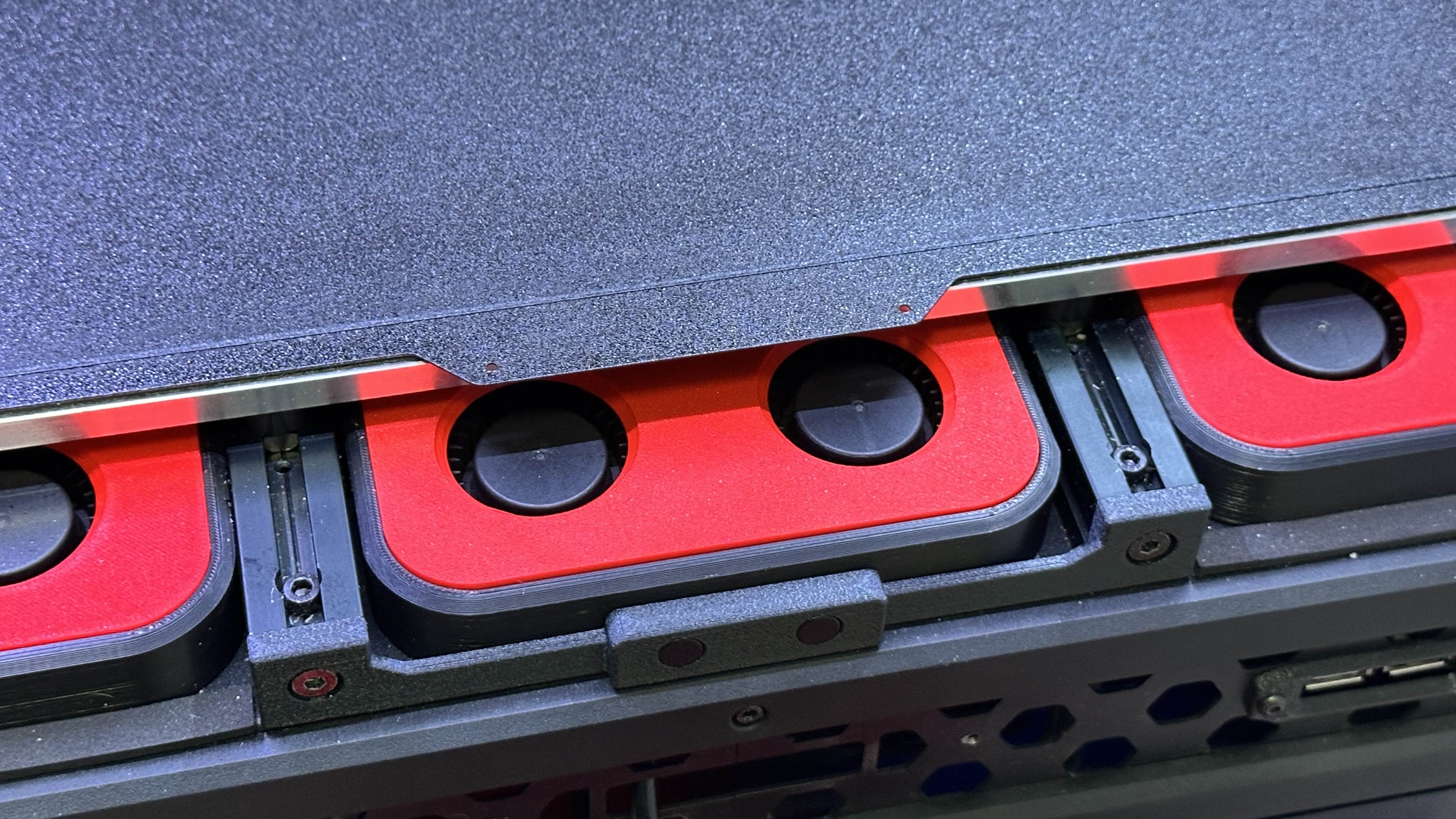

If you wish to use a filtered bed fan such as the Nevermore or The Filter, the bottom magnet will cause the enclosures to not fit / push them super far under the bed which hinders their performance and will likely kill the 5010 fans prematurely.

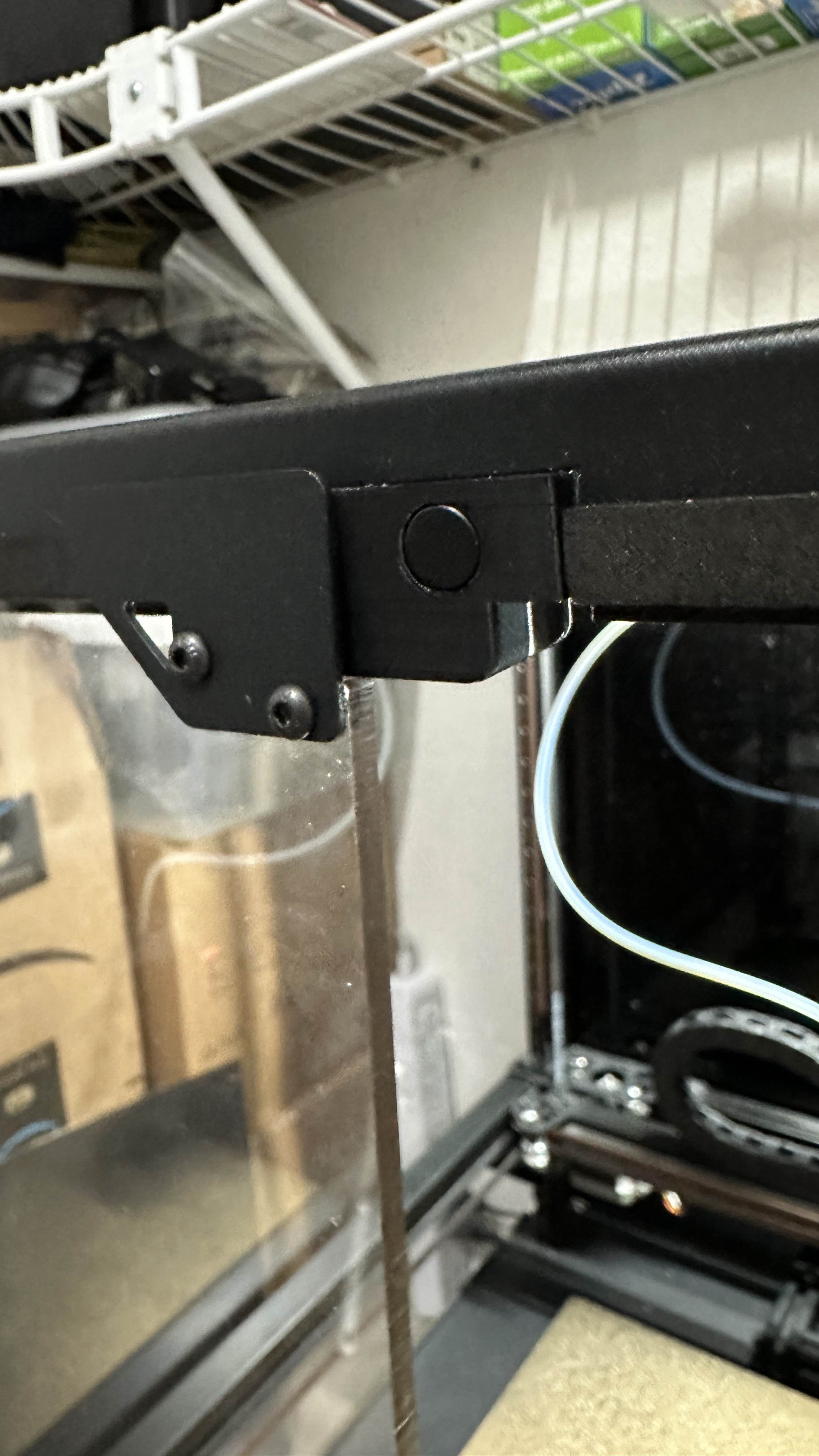

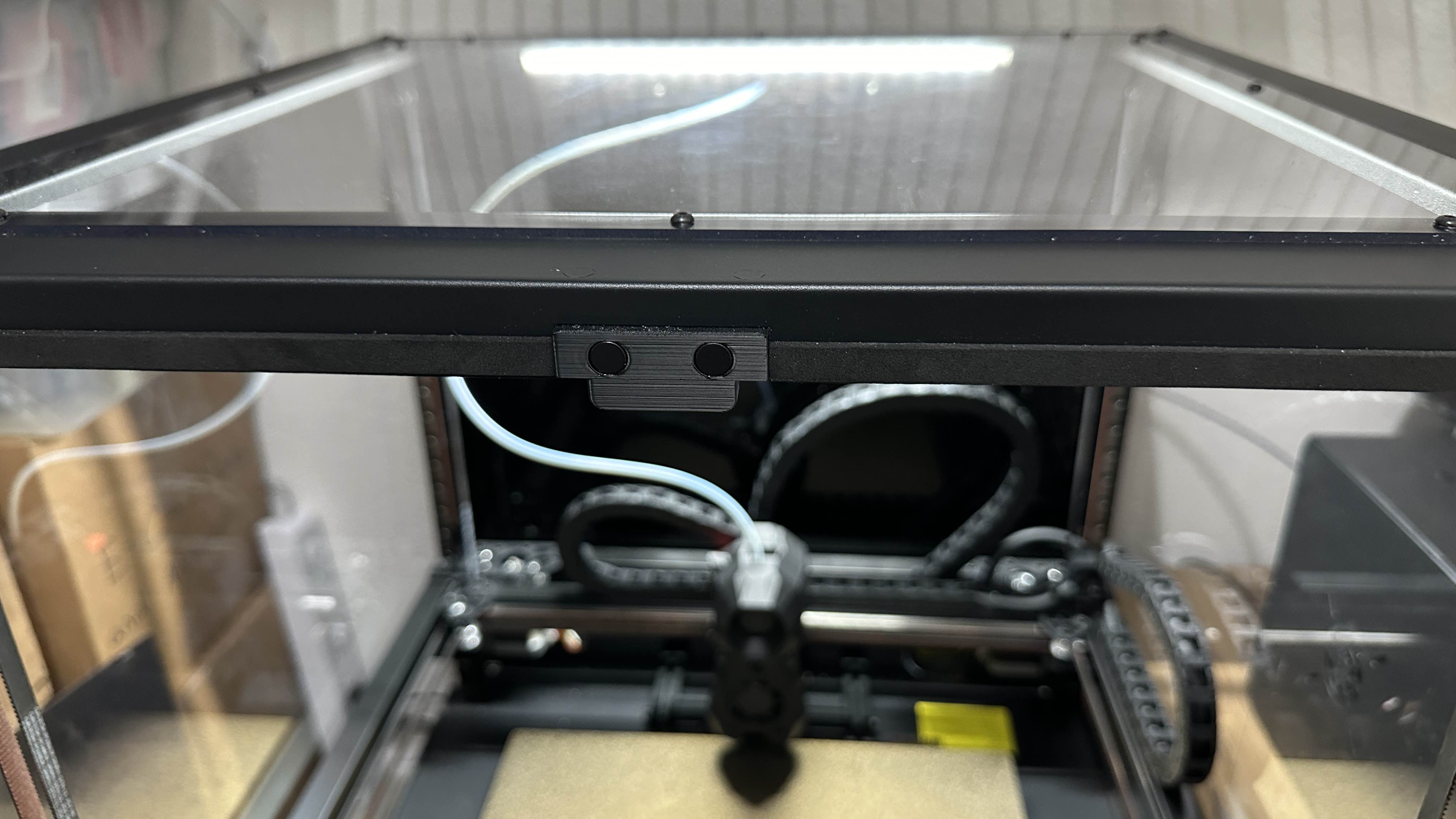

My suggestion is to print the top ones as normal and print the lower Filter versions with all walls. Requires two magnets of either 10x3mm, 8x3mm, or 6x3mm sizes (easily found on Amazon in those assorted magnet packs). The holes are pretty tight which means you can press fit them without worrying about using glue. I left a tiny bit of room on the upper one where they screw into the frame so you can adjust for panel warp.

You will notice that your doors will require a bit more pulling force to open with these if you use bigger magnets, but ugh, they sound so satisfying when they snap closed. I have included multiple magnet size versions so you can choose how strongly the doors are held in place! Most of the tiny gaps left around the edges can be filled by using some of the extra 1mm foam tape that came with the printer. Step files are included in case you need to adjust anything.

Design and description by Phillip Rivas , licensed CC-BY.
