Troy-Bilt lawnmower wheel bushing
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

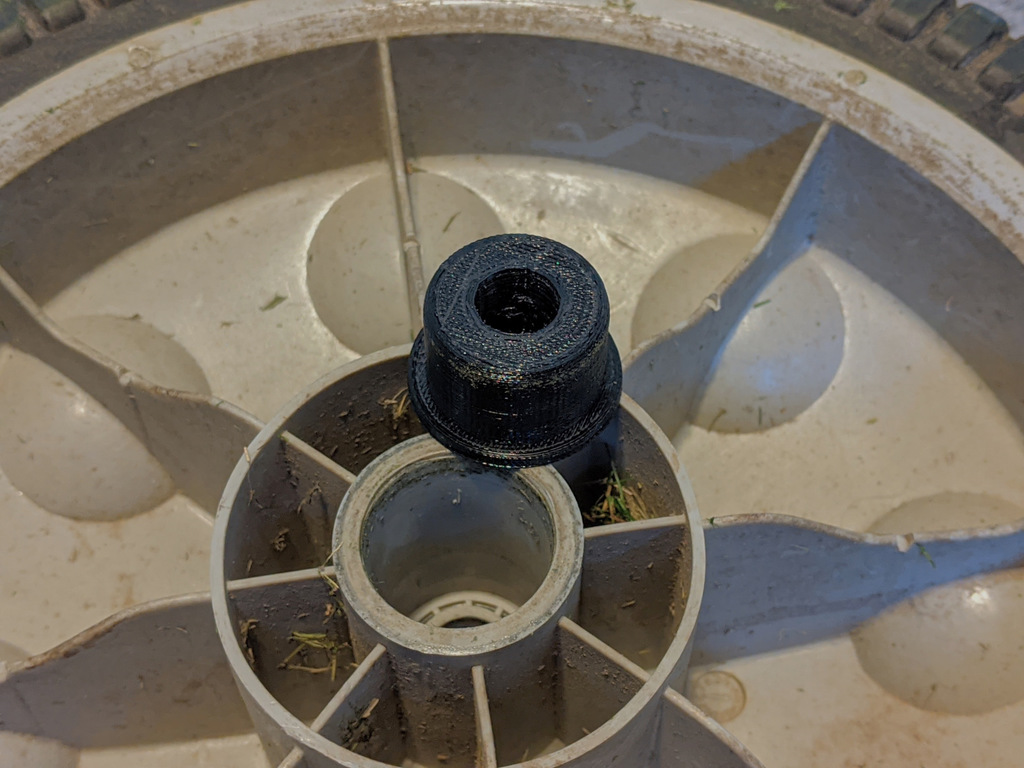

Replacement bushing for the 12" rear wheels on my Troy-Bilt push lawnmower. It has a 1/2" ID and a 1 1/8" OD, with a flange on the end. I made the bushing slightly longer than the original since there was room to spare and I don't want it to fail again. I also added some small grease channels.
Troy-Bilt calls these "flange bearings", but I could not locate the OE part.
Update: I would recommend to place a metal washer between the mower and this bushing when reinstalling. That should eliminate most wear.
Print Settings
Printer Brand:
Monoprice
Printer:
Maker Select Plus
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
50%
Filament: Inland PETG Black
Notes
Using Nylon would be better for a part like this.
Category: Replacement Parts
Design and description by nexusz , licensed CC-BY.
