UFS-067 Lawn Mower Funnel Long Reach Spout or Small Engine Oil Funnel

I’ve been collecting funnel ideas for awhile. I’ve downloaded parametric models that you can customize however you like. I also downloaded several with interesting shapes.

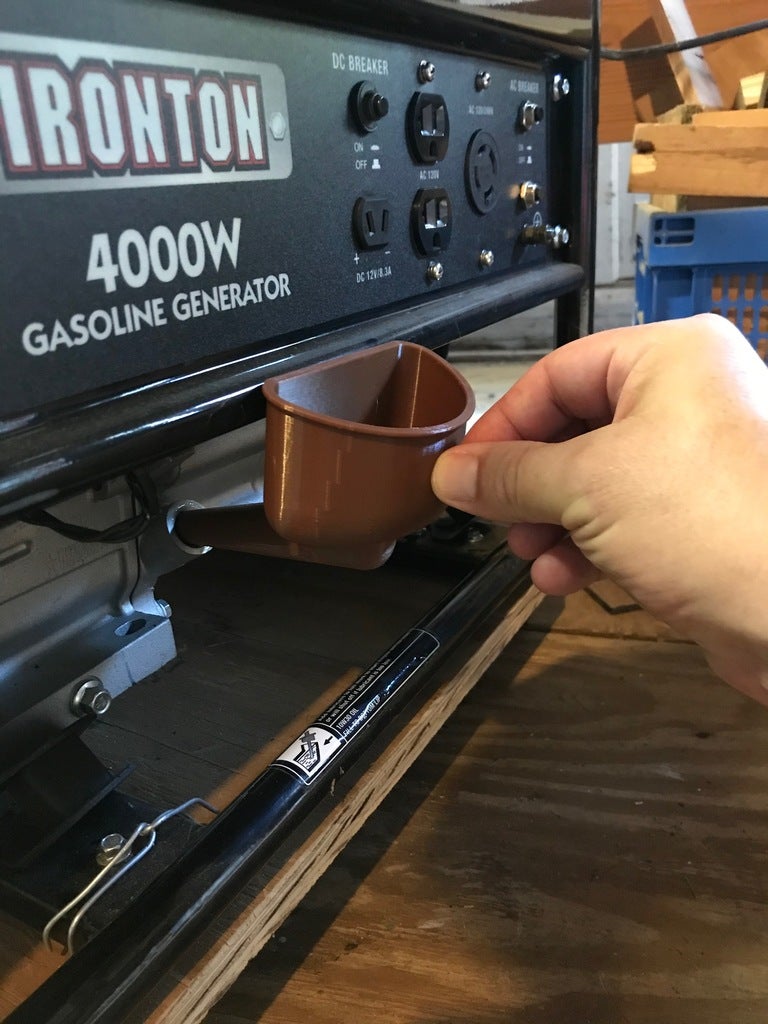

This was all because I needed a funnel with a long spout to reach the oil fill on a lawn mower and also a generator. The access is terrible, and I originally spilled a lot of oil trying to fill up the oil level.

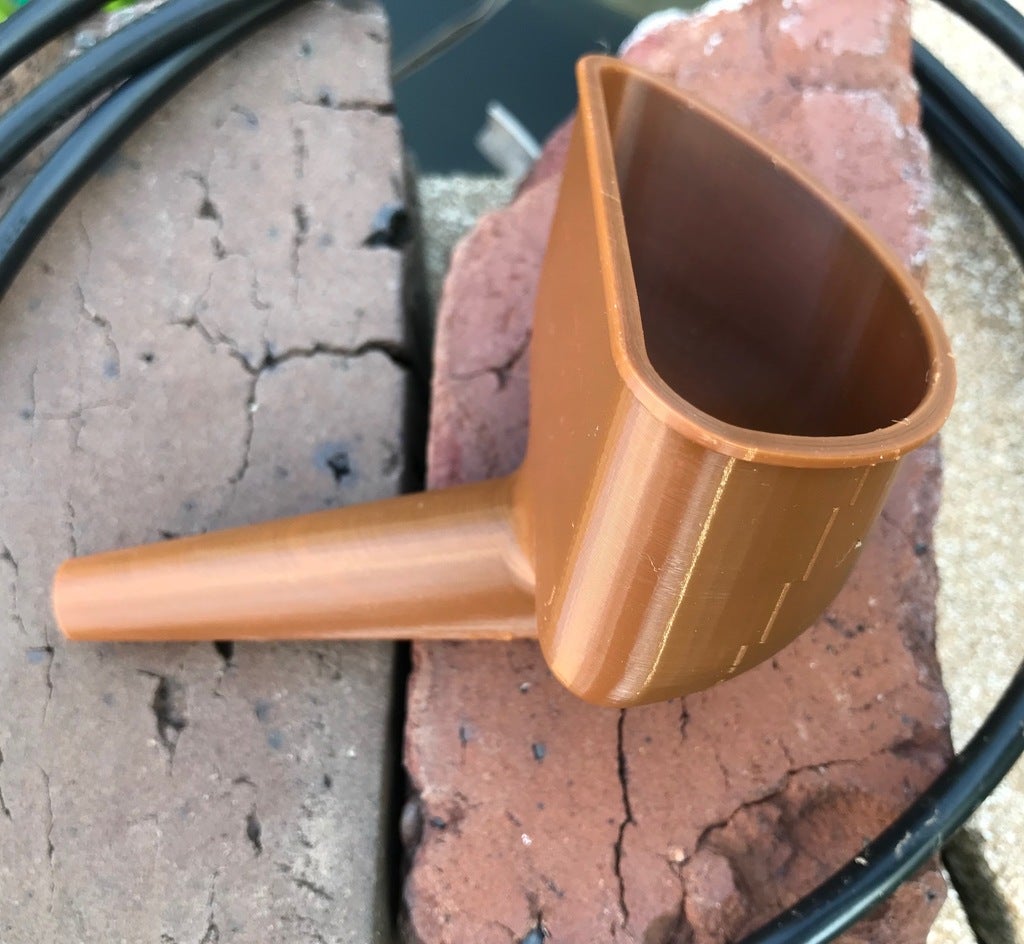

Then I came across the Trailer Water Fill Funnel. I liked the flat side. That really helps bring the funnel closer to the side of the item being filled. It just needed an extra long spout.

I didn’t want to use supports, so I angled the top of the funnel. When printed upside down, the sides are steep enough that I didn’t need any support. You can add them if you want, but they can be a pain to remove from the spout.

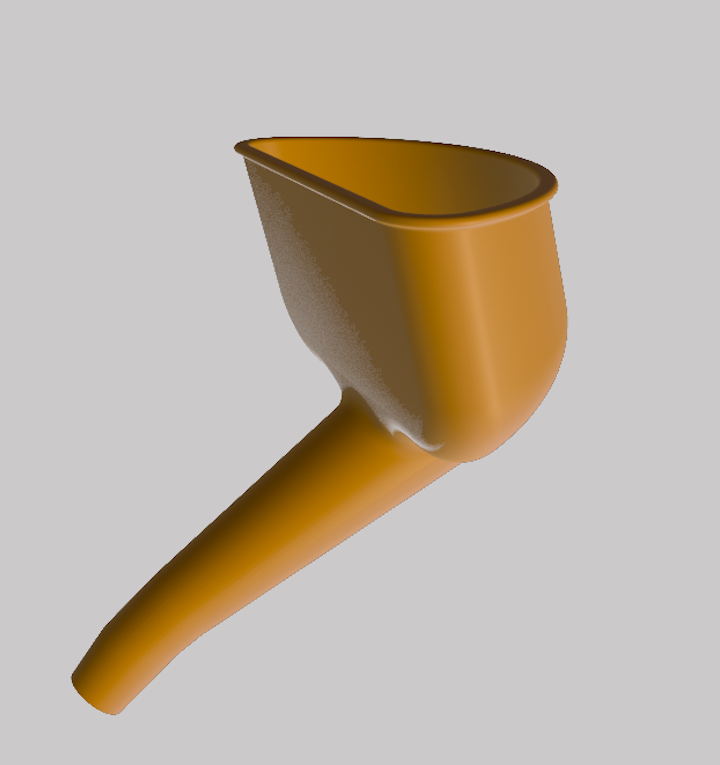

There are two models. The first one I printer, and a second one with a slightly longer and narrower spout.

Beware, Cura didn’t like this model. I had voids in a couple of spots. I had to adjust settings to get it to print. Make sure you preview before printing.

Print Settings

Printer Brand:

Creality

Printer: CR-10S

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 3 or more shells, 35% infill

Filament:

generic PLA any

Category: Machine Tools

Design and description by UncleFrankSays , licensed CC-BY.
